Chapter 3 Navigation keys
www.supmea.com
- 7 -
 LO: Low alarm normally open relay
 LC: Low alarm normally closed relay
 COM: Common
Chapter 3 Navigation keys

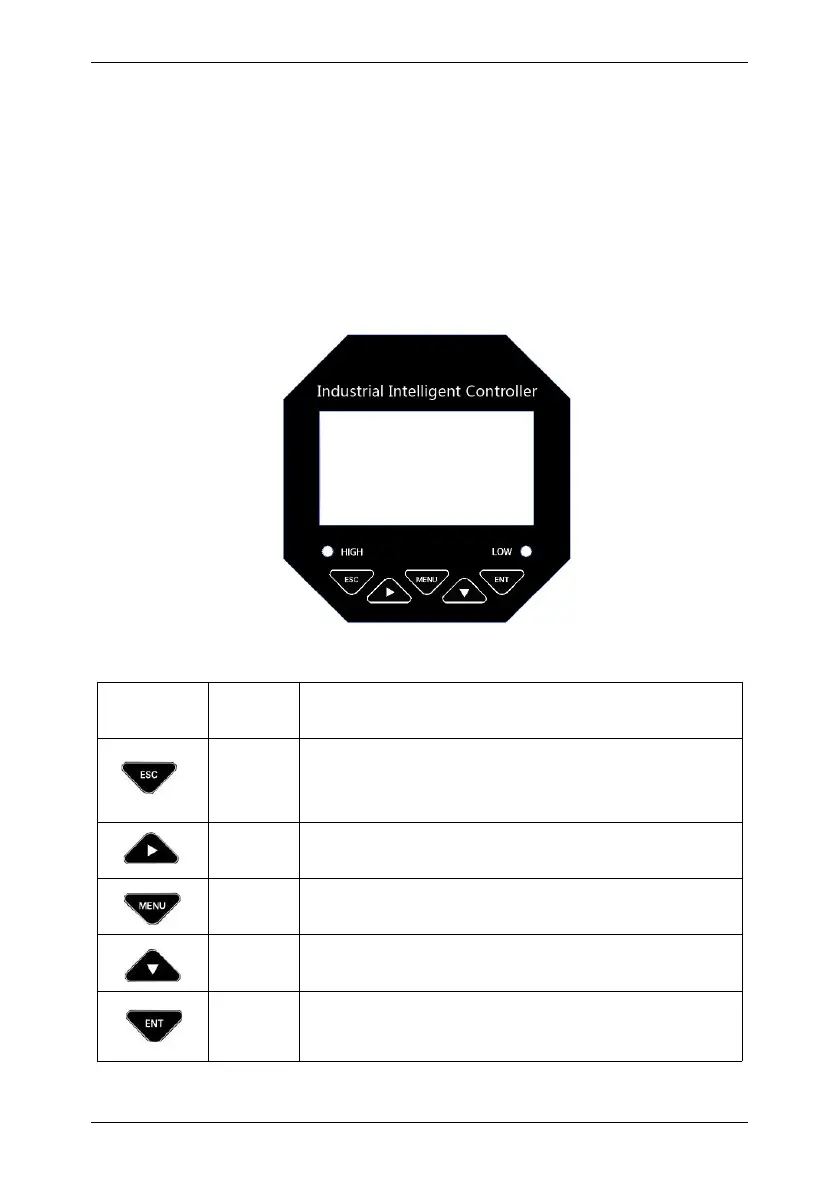

3.1 Button display
3.1.1 Definition of buttons
Sign
Button
name
Key function
ESC
Under "Monitoring page" - Alarm view
Under "Menu page" - Return to the previous page
Under "Calibration page" - Skip this item
RIGHT
Make a recurrent selection of digit of parameters modify the
original indication value
MENU
Under “Monitoring page” - Enter the MENU
Under “Menu page” - Exit the MENU
DOWN
Under “menu page” - Select the related menu
Modify the values in the configuration state
ENTER
Under “Menu page” - Enter the sub-menu or confirm
modification
