5.3 REPLACE REMOVABLE CLAMPS
Note: the lens holder is serrated and the lens probe is sharp. When touching the head and probe,
make sure your hands are protected.
.
19 mm diameter adaptors
25 mm diameter adaptors
5.3.1 REPLACE THE RIGHT CLAMP RUBBER PAD

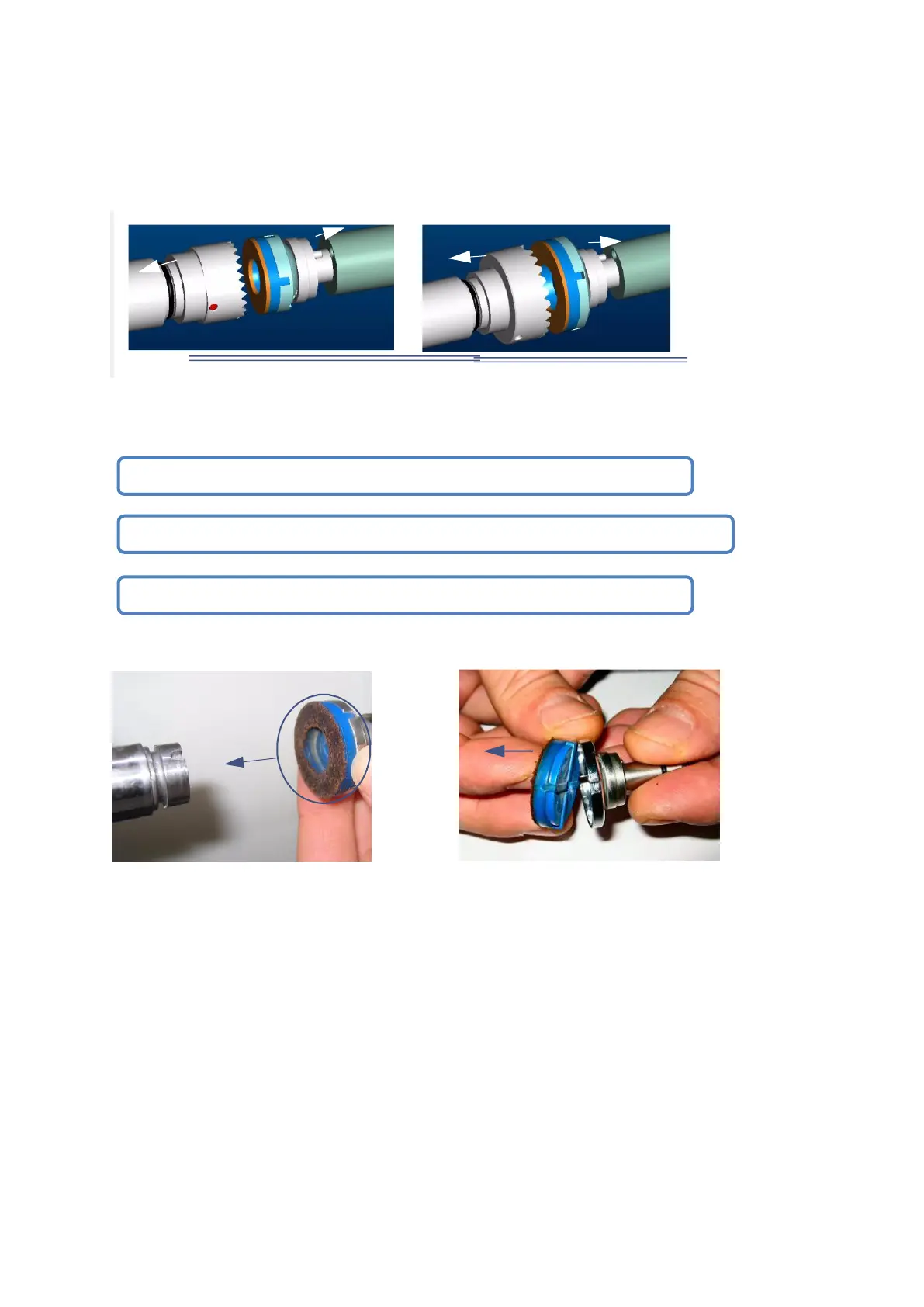

Replace the rubber pad procedure as below：
As pictures show below：
#1 Gently remove the right clamp from the clamp shaft；
#2 Remove the old rubber pad from the clamp-on and replace it with a new one；
#3 Put the right chuck back on the clamp axis.
