10 Installation of the top stoppers (fires with lift-up doors)
1
1
1
1

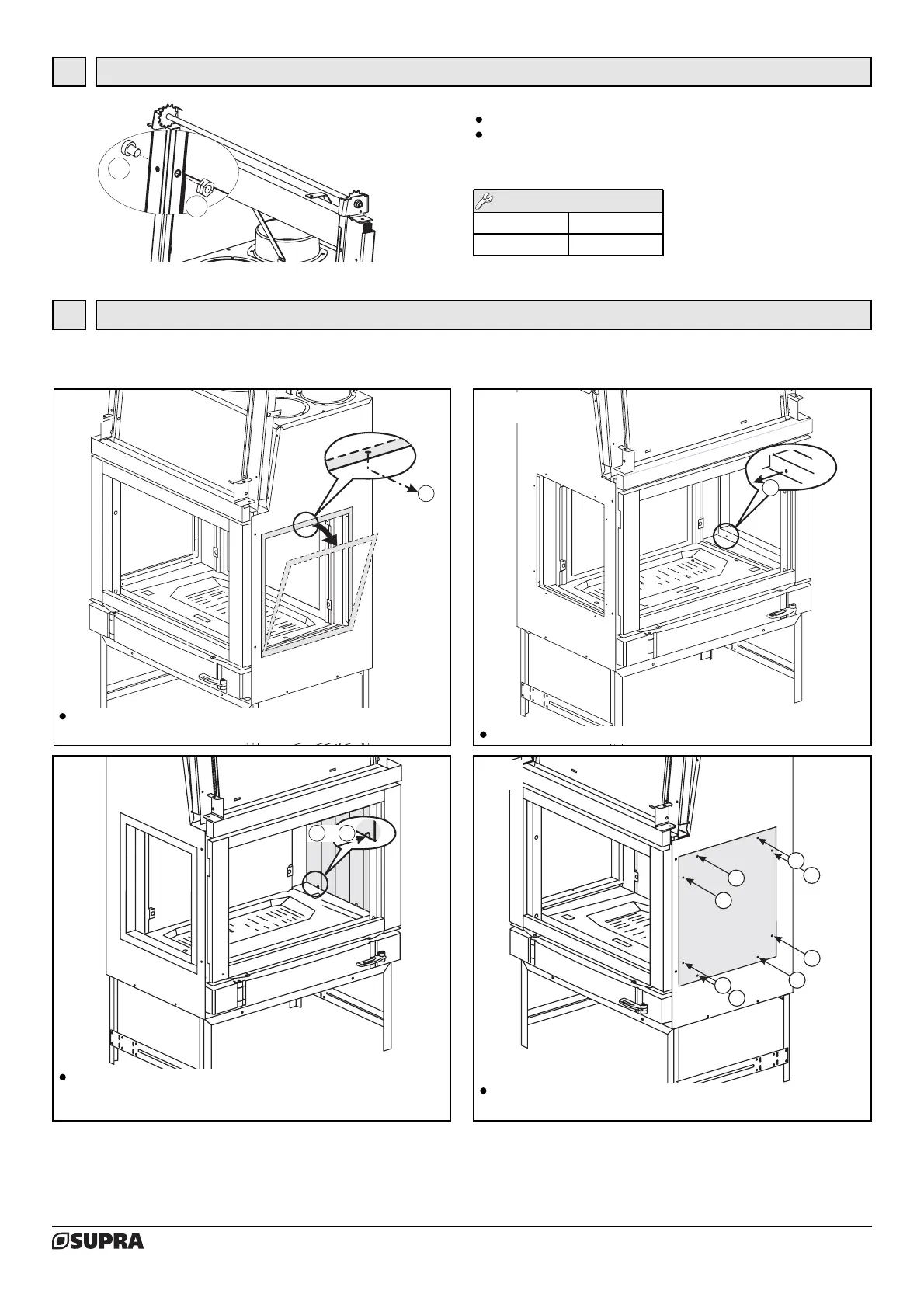

Fitting of a solid side (fire 163)
Fire 163 is supplied with 2 glazed sides. A solid side is also supplied with the accessories and may be mounted on the left-hand or right-hand side of the
fire. To avoid any risk, we suggest that you unhinge the door before starting this operation.
C
J
P
Remove the screw (P) and take out the outer side frame on the side
chosen (unclip it and pull hard).
Q
Remove the inner glazing frame by taking out the 4 screws (Q).
+
R
Q
Place the self-adhesive seal on the cast iron side, install it inside the
fire and fasten it with the 4 screws (Q) removed earlier and the 4
washers (R) supplied in the bag of screws.
S
S
S
S
S
S
S
S
Fasten the side cover onto the outside of the fire using the 8 screws
(S).
3.11.1 3.11.2
3.11.3 3.11.4
The top stoppers allow the door to be blocked in its top position.
Put the top stoppers in place on each of the 2 fixed frame uprights.
These stoppers consist of a screw (C) and a split nut (J) to be pla-
ced as indicated in the figure opposite.
Screws to use
C 2 x
J 2 x
