Supra 148C - Assembly and Connection; 1 Tools required; 2 Content of bags of screws delivered with different fires

GB 7/16
25254-11-08
We recommend that you read the following instructions in full before starting to install the fire.
1
1
Tools required
Spirit level, 13 mm open-ended spanner, 2 x 10 mm open-ended spanners, 8 mm open-ended spanner, 10 mm socket spanner, "pozidrive" screw
driver, Allen keys.
2
2
Content of bags of screws delivered with different fires
3.
3.
ASSEMBL
ASSEMBL
Y
Y
AND CONNECTION
AND CONNECTION

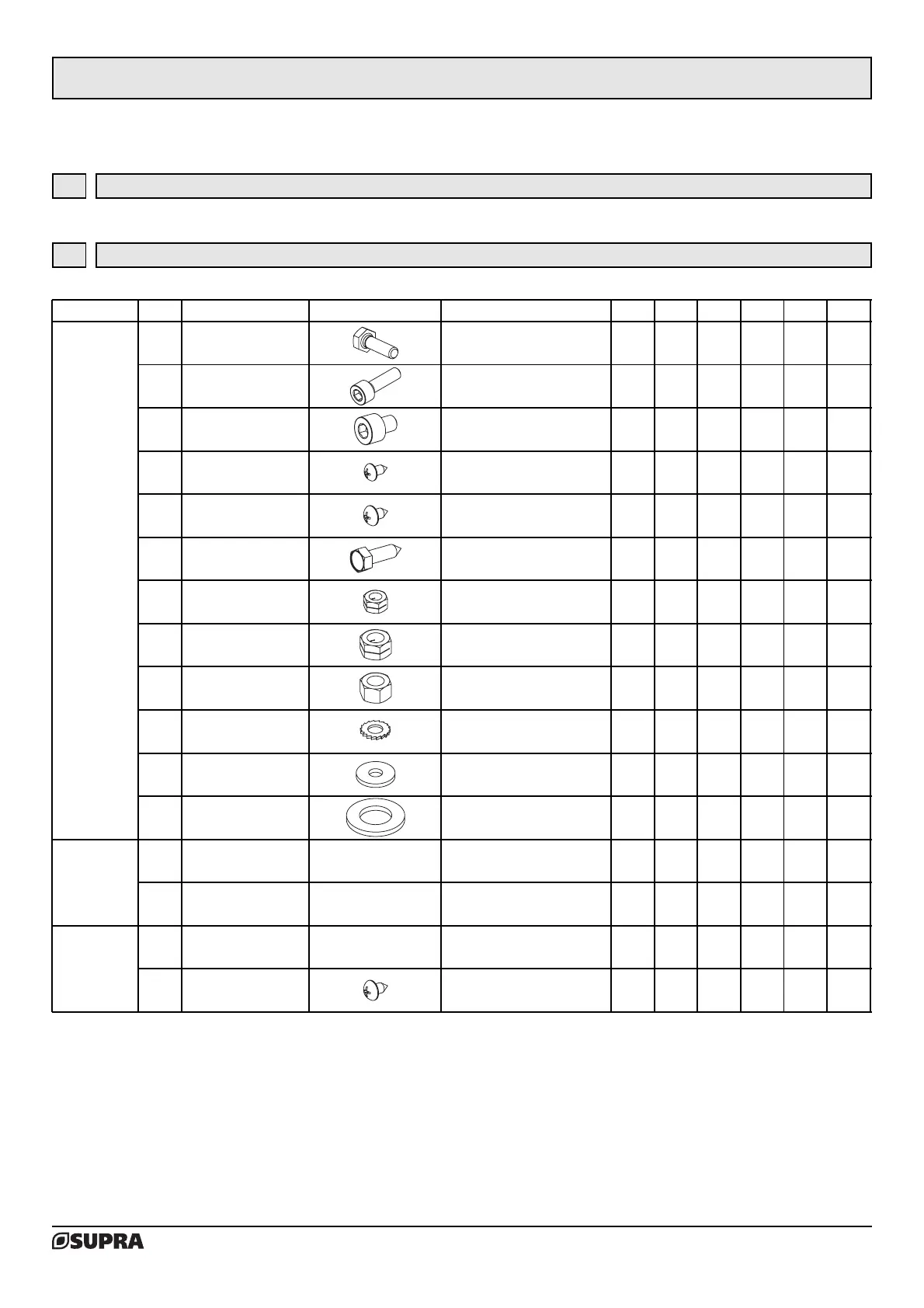

N° Bag of screws Description Use 148C 150C 152C 162C 168C 163
A Screw H M 6 x 20
Assembly of stand.
Fixing stand onto the fire.
12 12 12 12
B Screw CHC M 6 x 20 Fixing of the struts. 4 4 4
C Screw CHC M 8 x 10 Fixing of the top stoppers. 2 2 2
E Sheet metal screw 8 x 9,5 Fixing of the nozzles onto the DA. 12 12
F
Sheet metal screw 10 x
9,5
Fixing of the nozzles onto the DA. 18
H
Sheet metal screw H 14
x 22
Fixing of fixed frame. 2 2 2
I Split nut M6 Assembly of stand. Fixing of struts. 8 8 8+4 8+4 8+4
J
K
Split nut M8 Fixing of top stoppers. 2 2 2
Nut H M8 Chain adjustment. 4 4 4
L Tooth lockwasher 8 Chain adjustment. 2 2 2
M Flat washer 18 x 6,5 x 2 Fixing of fixed frame. 2 2 2
N Washer Z 14 Washers for hanging the chain. 2 2 2
P Screw
Screw present on the fire; it fixes
the outer side frame.
2
Q Screw Screw present on the fire.
R Washer M6 Fixing of the inner cast iron side. 4
S Sheet metal screw no. 10 Fixing of the side cover. 8
