Fixing of the warm air distribution cover
Reminder
148C optional See leaflet DA 148C.
150C optional
152C supplied mounted
162C supplied mounted
168C optional
163 supplied mounted
See leaflet CDA 150C.
See leaflet DA 168C.
7
7
7. Fixing the warm air distribution nozzles and plugs
E
E
E
E
E
E
E
E
3.7.1
E
E
E
E
3.7.2

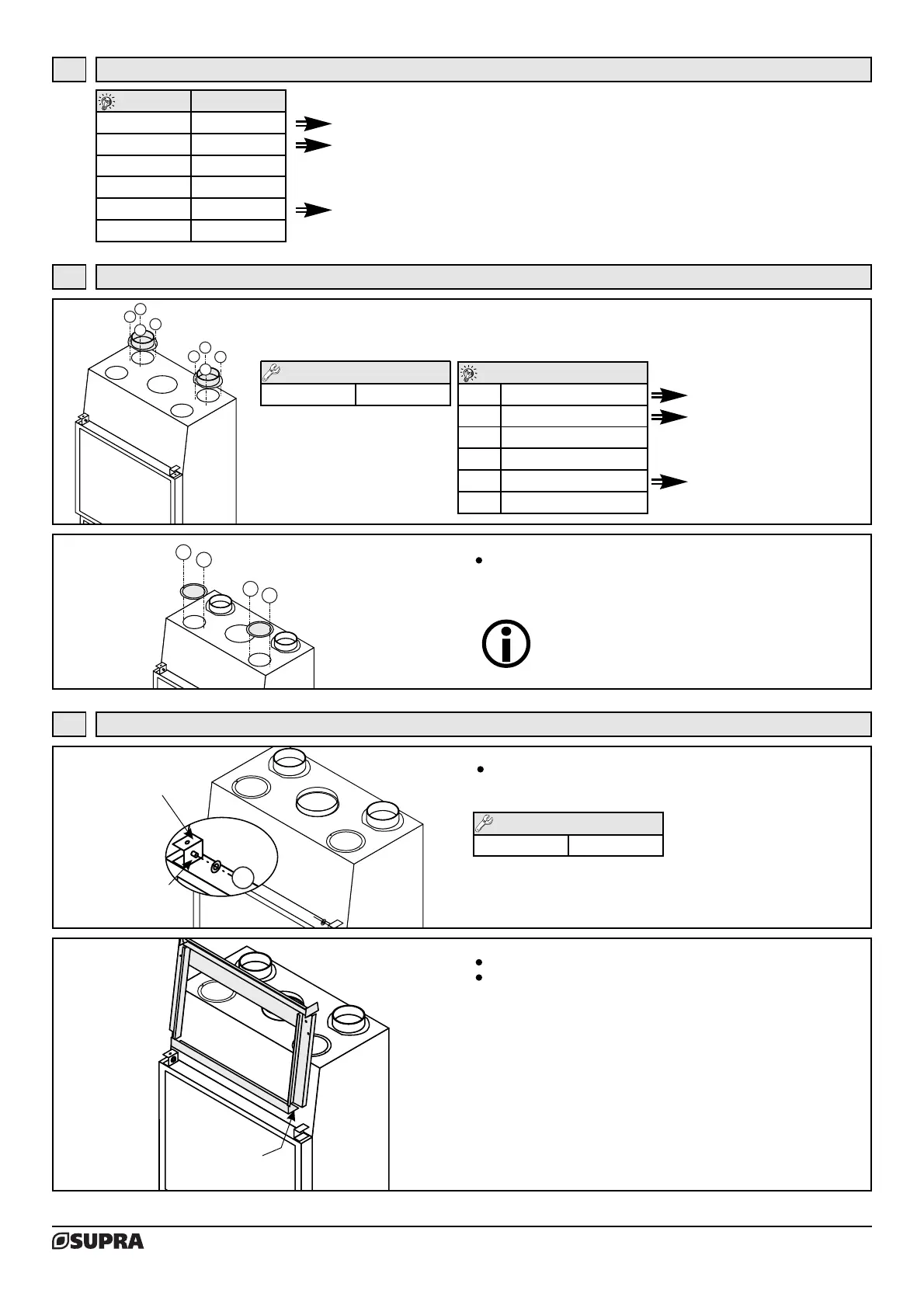

Choose the openings on which the 2 warm air distribution nozzles will be installed.
Fix each warm air distribution nozzle using 4 screws (E) or (F). Use a "pozidrive" screwdriver.
Fix each plug on one of the unused openings using 2 screws (E) or
(F). Use a "pozidrive" screwdriver.
Reminder
148C optional See leaflet DA 148C.
150C optional
152C 2 nozzles supplied, to be mounted
162C
2 nozzles supplied, to be mounted
168C optional
163
2 nozzles supplied, to be mounted
See leaflet CDA 150C.
See leaflet DA 168C.
Screws to use
E or F 12 x
8
8
Assembly of the fixed frame (fires with lift-up doors)
Rail à engager
sur le plot
3.8.2
Plot
Accrochage
de chaîne
N
3.8.1
Two extra warm air nozzles may be ordered as an
option and fixed in the place of the 2 plugs.
Unscrew the struts of the fixed frame; they will be used later.
Engage the rail of the fixed frame on the studs. To do this, tilt the fixed
frame forwards, engage it on the rails, then straighten to its final posi-
tion.
Place a washer Ø14 (N) on each of the 2 studs situated on the inside
of the chain fastenings.
Screws to use
N 2 x
