Planetary Oil Change Procedure - Model 500T, 600T, and 700T
MAINTENANCE
Drain
1. Strongly recommended to have warmed the oil by
running the unit before doing an oil change.
2. Place a large oil pan below the rear planetary.
3. Remove the drain plug (#1, ) from base of
the rear planetary.
4. Disconnect the vent line fitting located at the base of
the rear planetary (#2, ) to allow the oil to
drain faster.
5. Repeat steps 2 through 5 for the front planetary. Verify
that the proper amount of oil has been removed as per
chart 40
6. Complete draining will take several minutes.
Fill
1. Reconnect the vent line fittings and drain plugs at the
base of all planetarys.
2. Disconnect fill line fittings at the oil reservoir. (#3,
)
3. To refill, pump oil into each planetary fill line with a
mechanical pump until oil circulates through and starts
to enter the oil reservoir and out the fill line port.
4. Reconnect the fill line fittings at the oil reservoirs.
5. Wait a few minutes for the oil levels to stabilize.
6. Top up oil reservoirs through top port so that sight glass
is 3/4 full. (#4, )

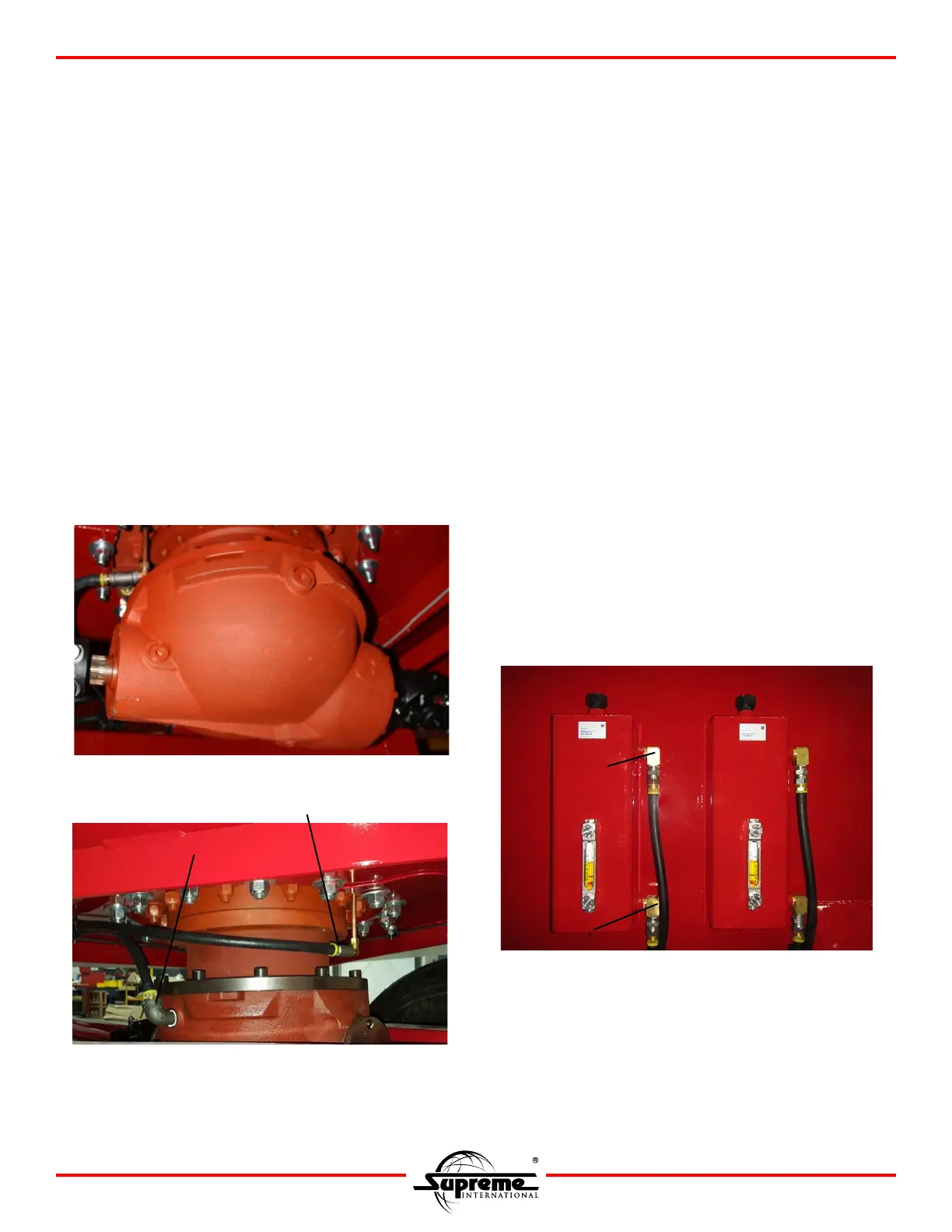

Figure 17
11
22
Figure 18
Vent Line
Fill LineFill Line
Figure 19
Fill LineFill Line
Vent LineVent Line
Rear Planetary TankRear Planetary Tank
33
44
Front Planetary TankFront Planetary Tank
