This document provides installation instructions for the Suptek SPM201 speaker mounts.

Function Description:

The Suptek SPM201 is a set of two wall-mounted speaker brackets designed to securely hold speakers. Each mount consists of a wall bracket, a decorative cover, a tilting end cap, and a speaker platform. The design allows for both tilting and swinging adjustments to optimize speaker positioning for sound direction. The mounts are suitable for various wall types, including brick and wood, and offer options for managing speaker wires, either concealed within the wall or exposed.

Important Technical Specifications:

Model: SPM201
Load Capacity: Suitable for loads up to 25kg (55lbs) per speaker.
Speaker Platform Width Adjustment: 137-280mm, allowing compatibility with a range of speaker sizes.
Tilting Angle Adjustment: +/- 45 degrees.
Swinging Angle Adjustment: +/- 7.5 degrees.
Mounting Hardware:
- For Brick Mount: M8x60mm bolts (e), plastic washers (f), M8 washers (g), M8 nuts (h), M8x40mm concrete anchors (l).
- For Wood Mount: M6x45mm lag bolts (j), lag bolt washers (k).
- Optional Speaker Securement: M4x12mm wood screws (i).
Tools Required:
- 3.8MM drill bit (for wood mount pilot holes)
- 8MM masonry bit (for brick mount pilot holes)
- Phillips Screwdriver
- Carpenter's level
- Wrench (m)

Usage Features:

Wall Mounting Versatility: The mounts can be installed on both brick and wood walls, with specific hardware provided for each type.
Adjustable Speaker Positioning:
- Tilting: Speakers can be tilted up to 45 degrees in either direction, allowing users to direct sound vertically.
- Swinging: Speakers can be swung up to 7.5 degrees horizontally, providing fine-tuning for sound dispersion.
Speaker Securement: The speaker platform includes clamps to hold the speaker in place. Additionally, optional M4x12mm wood screws can be used to further secure the speaker to the platform for enhanced stability.
Wire Management Options:
- Concealed: Wires can be routed inside the wall for a clean, discreet look.
- Exposed: Wires can be run outside the wall, which is simpler for installations where wall concealment is not feasible or desired.

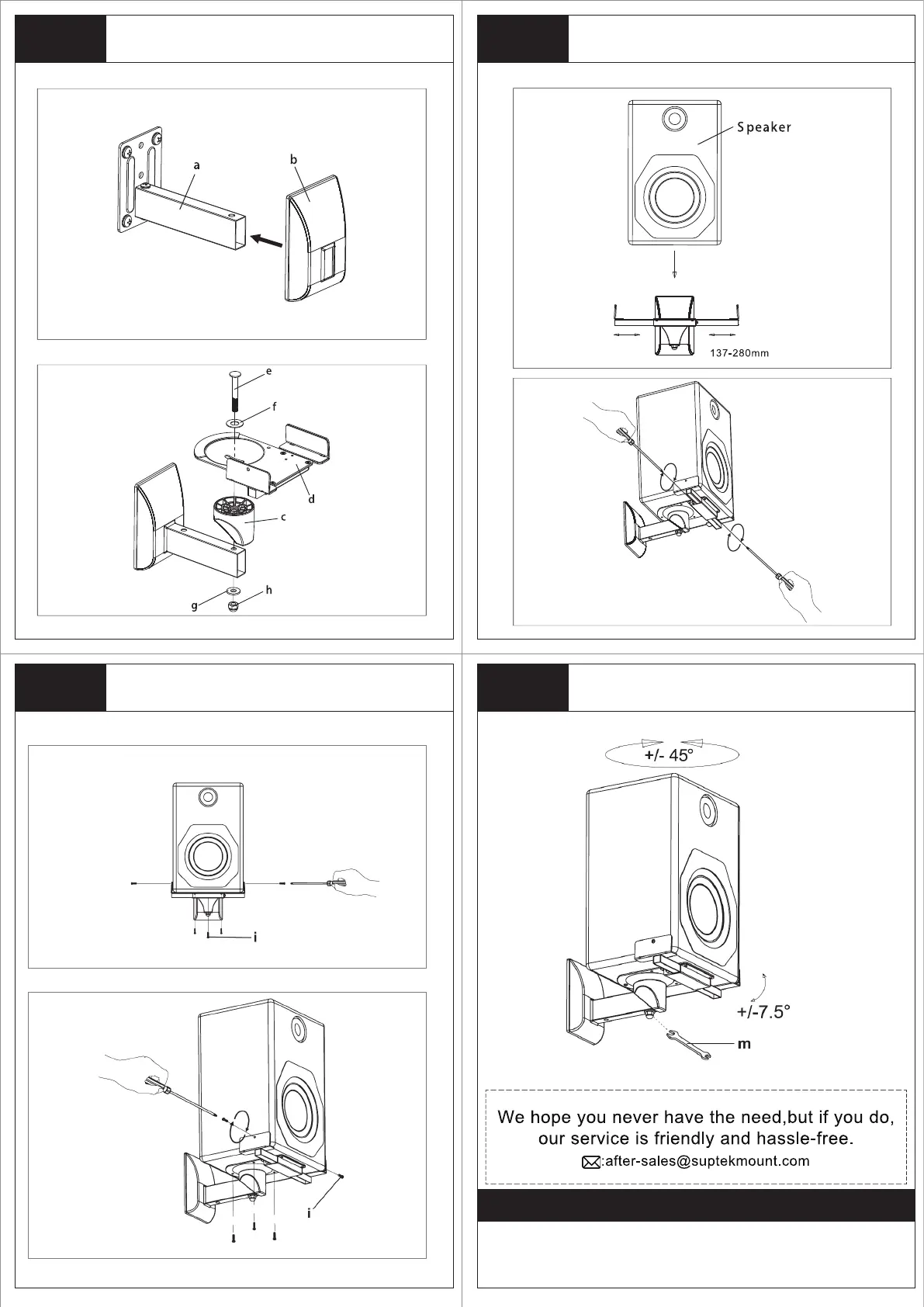

Easy Assembly: The installation process is broken down into clear, sequential steps, including attaching the wall bracket, mounting the cover and platform, placing the speaker, and making adjustments.

Maintenance Features:

Durability: Constructed with robust materials, including metal wall brackets and platforms, designed to support speakers up to 25kg.
Safety Information: The manual emphasizes important safety precautions, including the need for careful installation, proper use of safety equipment, and consulting a qualified contractor if unsure about the installation process. It also warns against using damaged or defective parts and highlights the risk of injury if the mount is not properly installed.
Customer Support: The manufacturer provides an email address (after-sales@suptekmount.com) for customer service, indicating support for potential issues or inquiries.
Part Identification: A detailed list of supplied parts with corresponding labels and quantities helps users verify package contents and identify components during assembly, simplifying troubleshooting if parts are missing or damaged.
Hardware Compatibility: The manual explicitly states that the supplied mounting components are not designed for walls with steel studs or cinder block walls, guiding users to consult local hardware stores for appropriate hardware in such cases, ensuring correct and safe installation.
