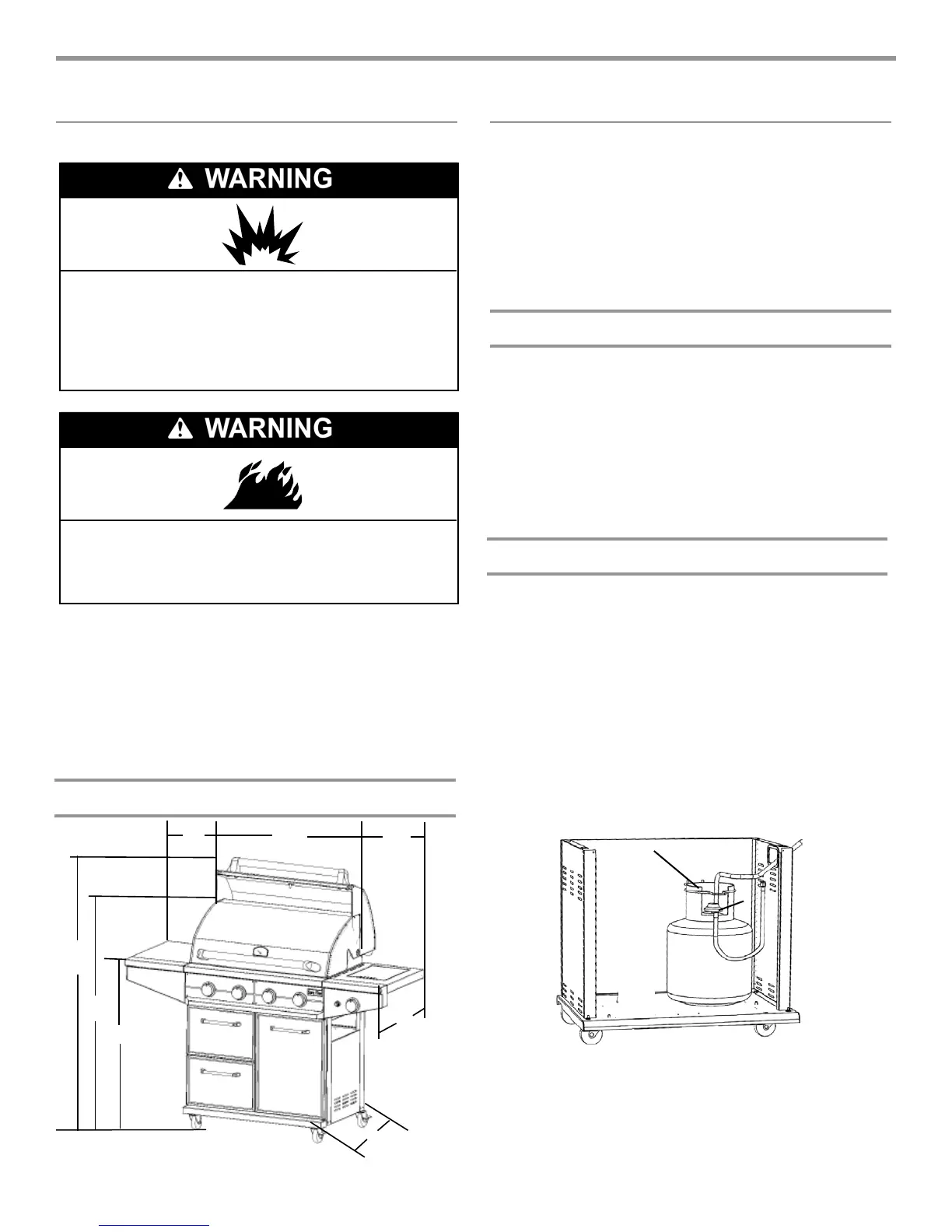

Location Requirements
Explosion Hazard
Do not store food tank in a garage or indoors.
Do not store grill with fuel tank in a garage
or indoors.
Failure to follow these instructions can result in
death, explosion, or re.
Fire Hazard
Do not use grill near combustible materials.
Do not store combustible materials near grill.
Doing so can result in death or re.
Select a location that provides minimum exposure to wind and
trafc paths. The location should be away from strong draft
areas.
Do not obstruct ow of combustion and ventilation air.
Clearance to combustible construction:
A minimum of 24” (61.0 cm) from grill hood sides and back must
be maintained from any combustible construction.
Product dimensions
Gas Supply Requirements
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes
and ordinances. In the absence of local codes, installation must
conform with American National Standards Institute, National
Fuel Gas Code ANSI Z223.1 - latest edition.
IMPORTANT: Grill must be connected to a regulated gas supply.
Gas Pressure Regulator
The gas pressure regulator supplied with this grill must be used.
The inlet (supply) pressure to the regulator should be as follows
for proper operation:
LP Gas:
Operating pressure: 11” (27.9 cm) WCP
Inlet (supply) pressure: 11” to 14” (27.9 cm to 35.5 cm) WCP
Contact local gas supplier if you are not sure about the inlet
(supply) pressure.
20 lb LP Gas Fuel Tank
This grill is equipped for use with a 20 lb LP gas fuel tank (fuel
tank not supplied). A gas pressure regulator/hose assembly is
supplied.
The 20 lb LP gas fuel tank must be mounted and secured.
1. From the rear of the cart,s et a 20 lb LP gas fuel tank into the
hole in the cart base.
2. Place the 20 lb LP gas fuel tank retention bar onto the 20 lb LP
gas fuel tank.
INSTALLATION REQUIREMENTS
Gas Connection Requirement
A
B
14”
35.6 cm
47”
119.4 cm
33”
83.8 cm
14”
35.6 cm
35.8”
91 cm
53.9”
136.9 cm
20.7”
52.6 cm
20.7”
52.6 cm
