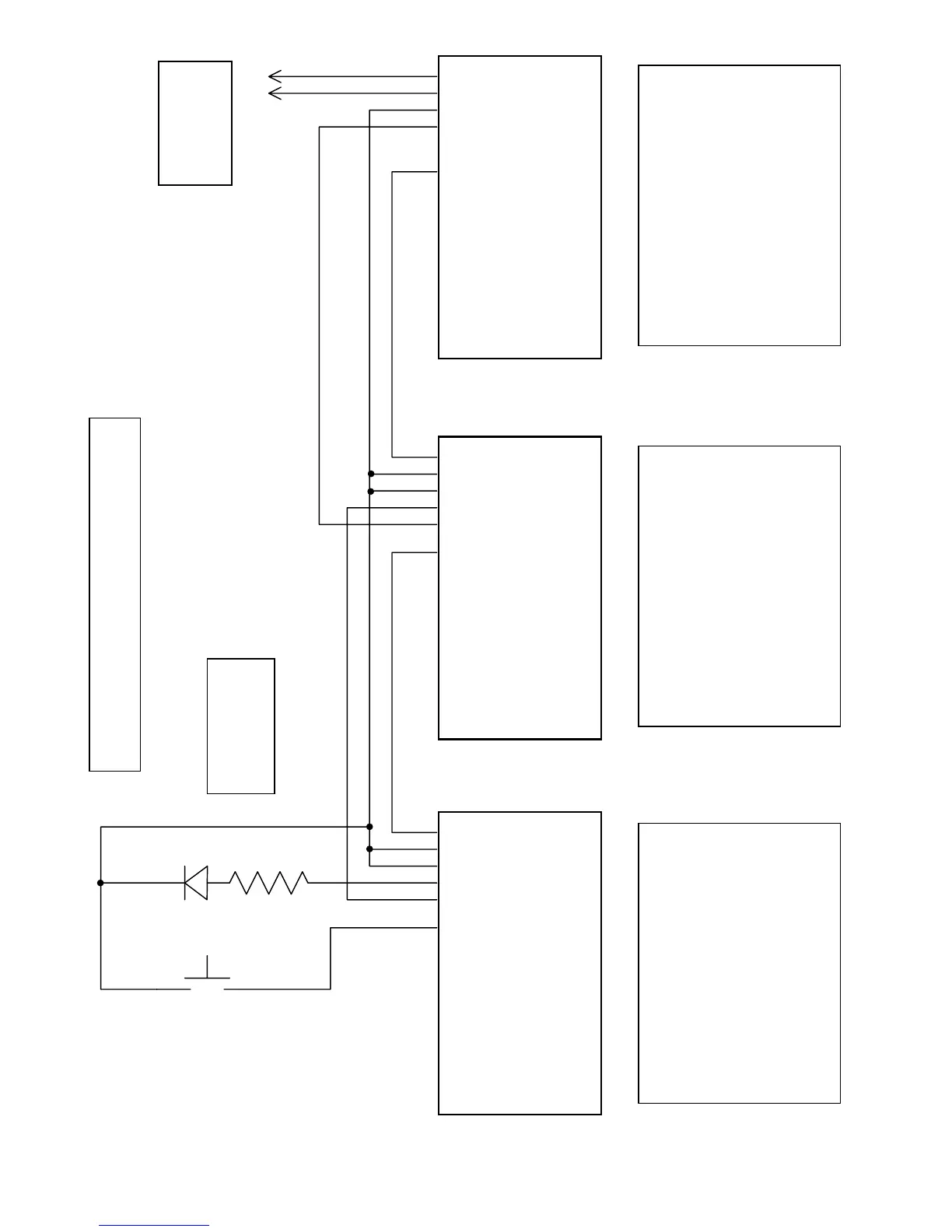

Three Units Cascaded Together
A-ON C B A 1 2 3 4 5 6 7
SX2120-SEQ
A-ON C B A 1 2 3 4 5 6 7
SX2120-SEQ
A-ON C B A 1 2 3 4 5 6 7
SX2120-SEQ
Confirmation
(If Required)
LED and 1K, 1/4W Resistor
Program: Up & Down Inputs = One Mom. Over-Ride Input = 5-30 Vdc Over-Ride Func = Master 12V dc Output = LED Aux Sync = Cascade
Program: Up & Down Inputs = Latching Over-Ride Input = 5-30 Vdc Over-Ride Func = Pass-Thru 12V dc Output = Cascade Aux Sync = Cascade
Program: Up & Down Inputs = Latching 12V dc Output = Cascade Aux Sync = Confirm
Figure 5
