5° slope
Level Mounting Surface
Drain Pan
Vent
Mounting Brackets
P Trap
Drain
Airflow In
Airflow Out
Ceiling - 12” min. clearance
Exhaust - min. 24” Clearance
Air Intake - min. 24” Clearance

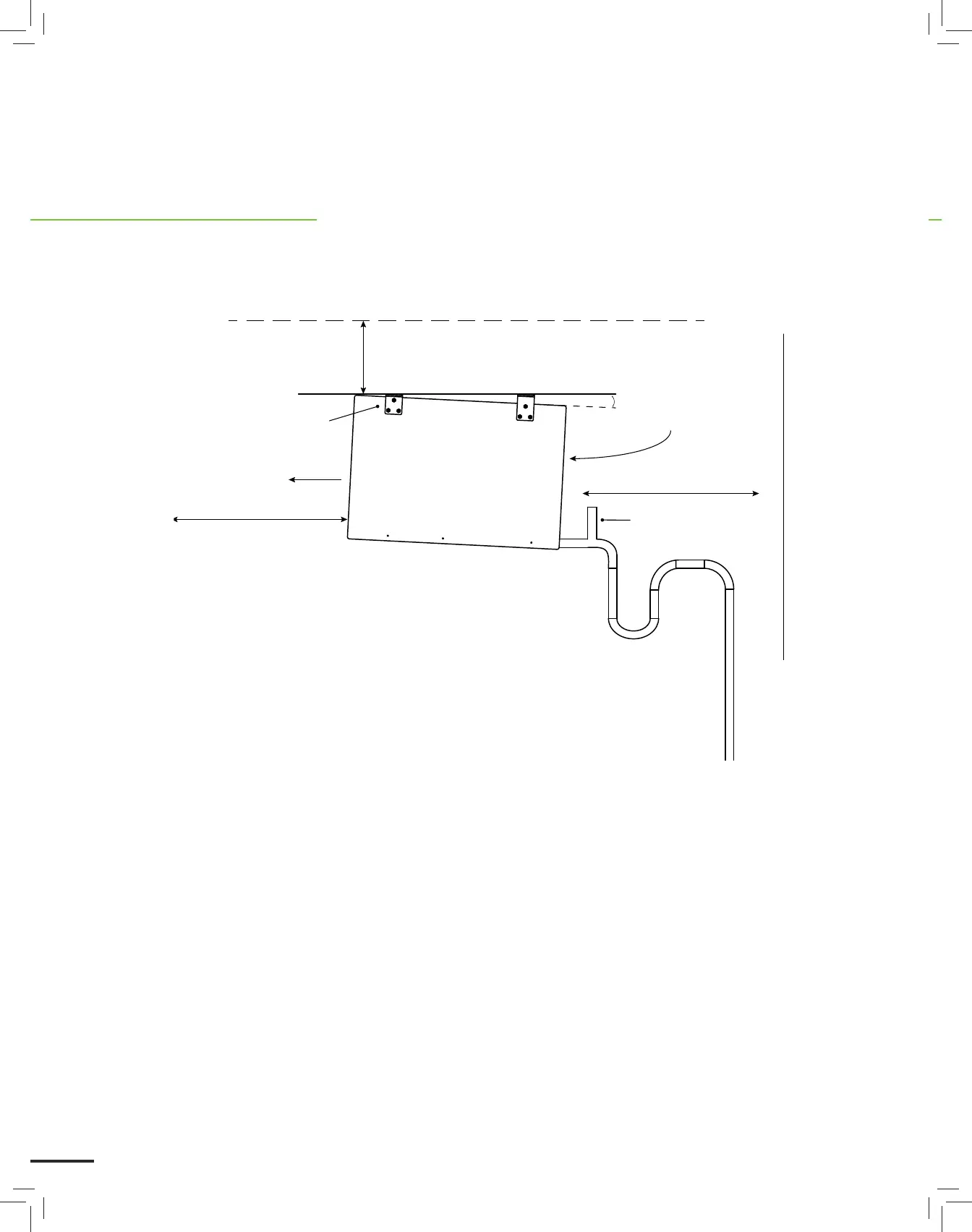

Figure 2- Installation diagram shows proper mounting of Surna dehumidifier
MOUNTING DIAGRAM
