Sutphen SL75 - Page 13

SUTPHEN TOWERS, INC. 2012
Manual-2012 _SL75-SA75-SP70.docx Page 13 of 55 8/31/2012

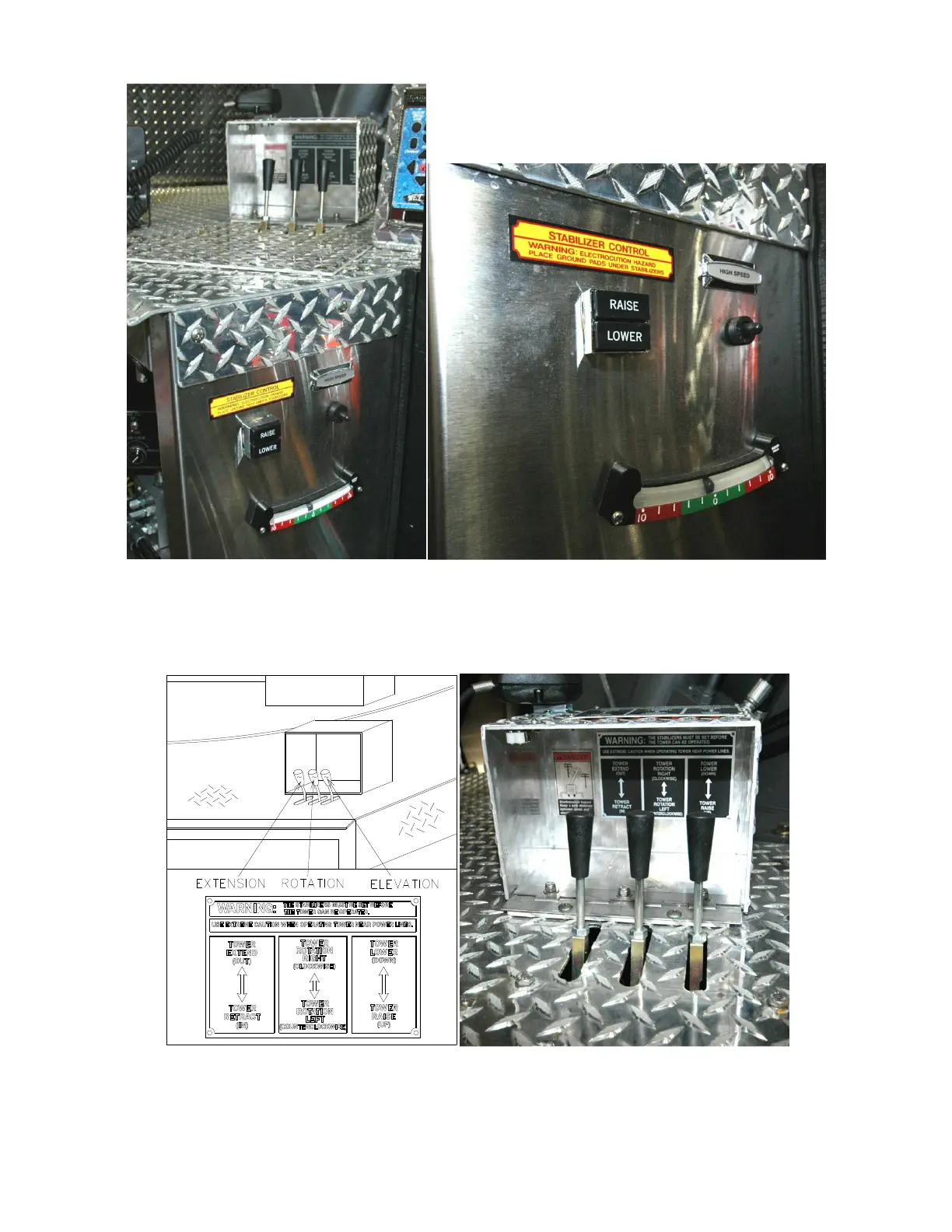

Figure 1
The aerial is now ready for operation. The automatic jack locks should have engaged, and
hydraulic power diverted to the aerial controls. (See figures 2 & 3).
Figure 2

