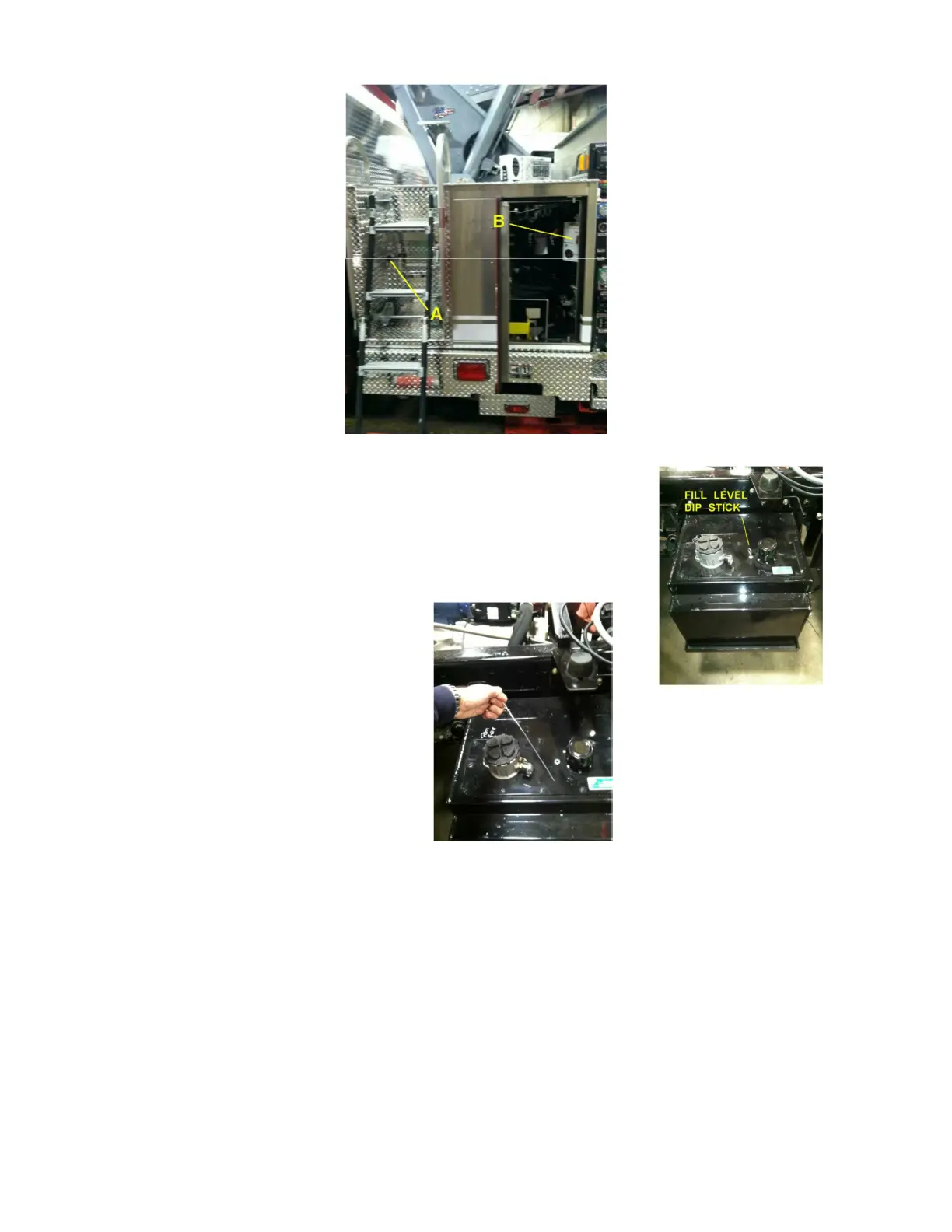

2. Raise the cab and locate the Fill Level Dip Stick on top of the
Hydraulic Fluid Reservoir, which is located behind the driver’s
side front tire.
3. Check the current oil level.
Proceed only if it is below the full
level (line on dip stick). If it is at,
or above the full mark, the system
is full. Replace the dip stick and
return the cab to travel position.
4. Remove the rubber Hydraulic Fill Port plug; by pushing in the quick connect lock ring,
and pulling the plug out of the port.
