9-40
INSPECTION AND MAINTENANCE
66J21-03E

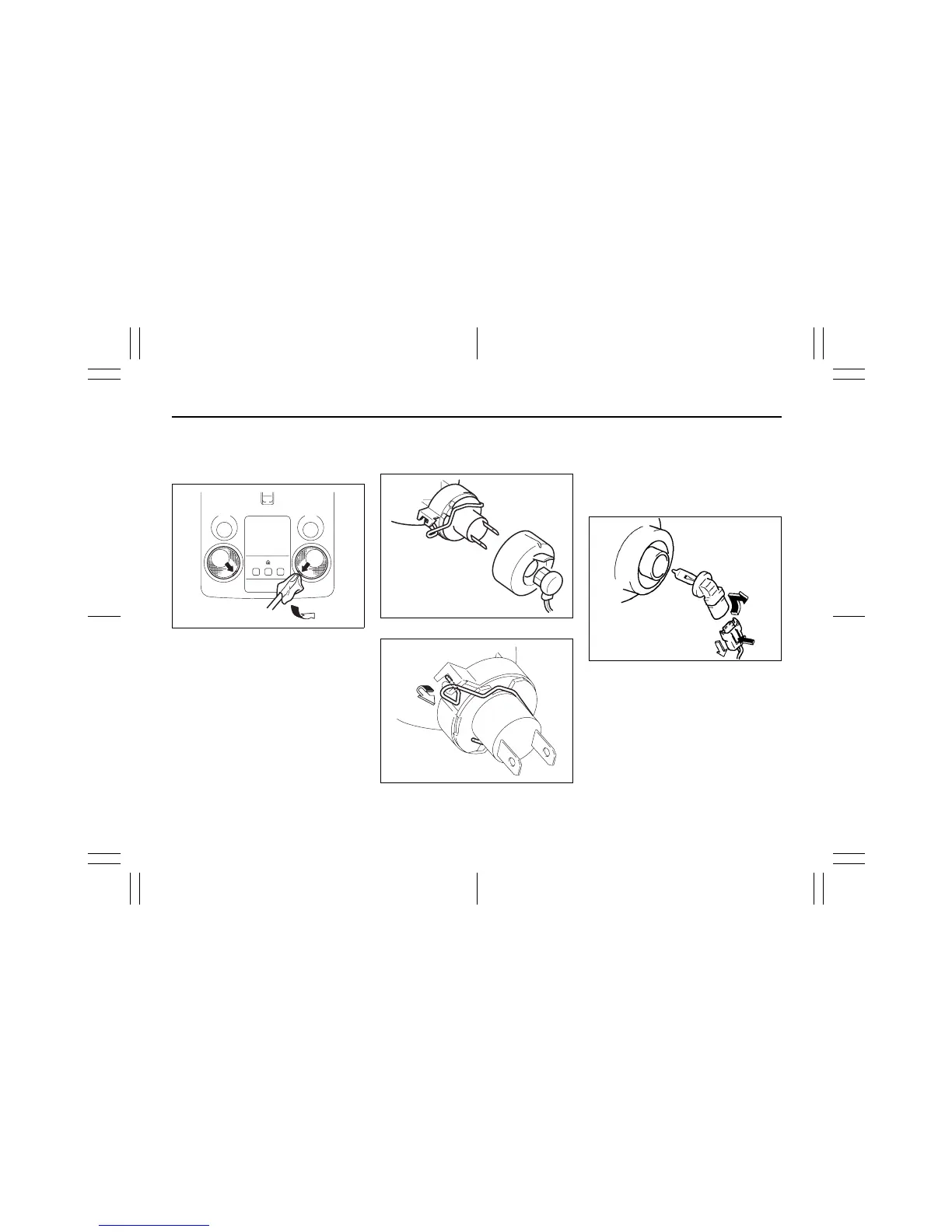

Spot Light (if equipped)
Pull down the lens by using a plain screw
driver covered with a soft cloth as shown.
Ceiling-mount type (if equipped)
66J010
Remove the bulb holder by turning it coun-
terclockwise. Pull out the bulb.
Headlights
Low beam
(Halogen headlamp)
66J036
66J108
Open the engine hood. Disconnect the
coupler. Remove the sealing rubber.
Push the retaining spring forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
High beam
78F072
Open the engine hood. Disconnect the
coupler while pushing the lock release.
Turn the bulb holder counterclockwise to
remove it.
