13-1

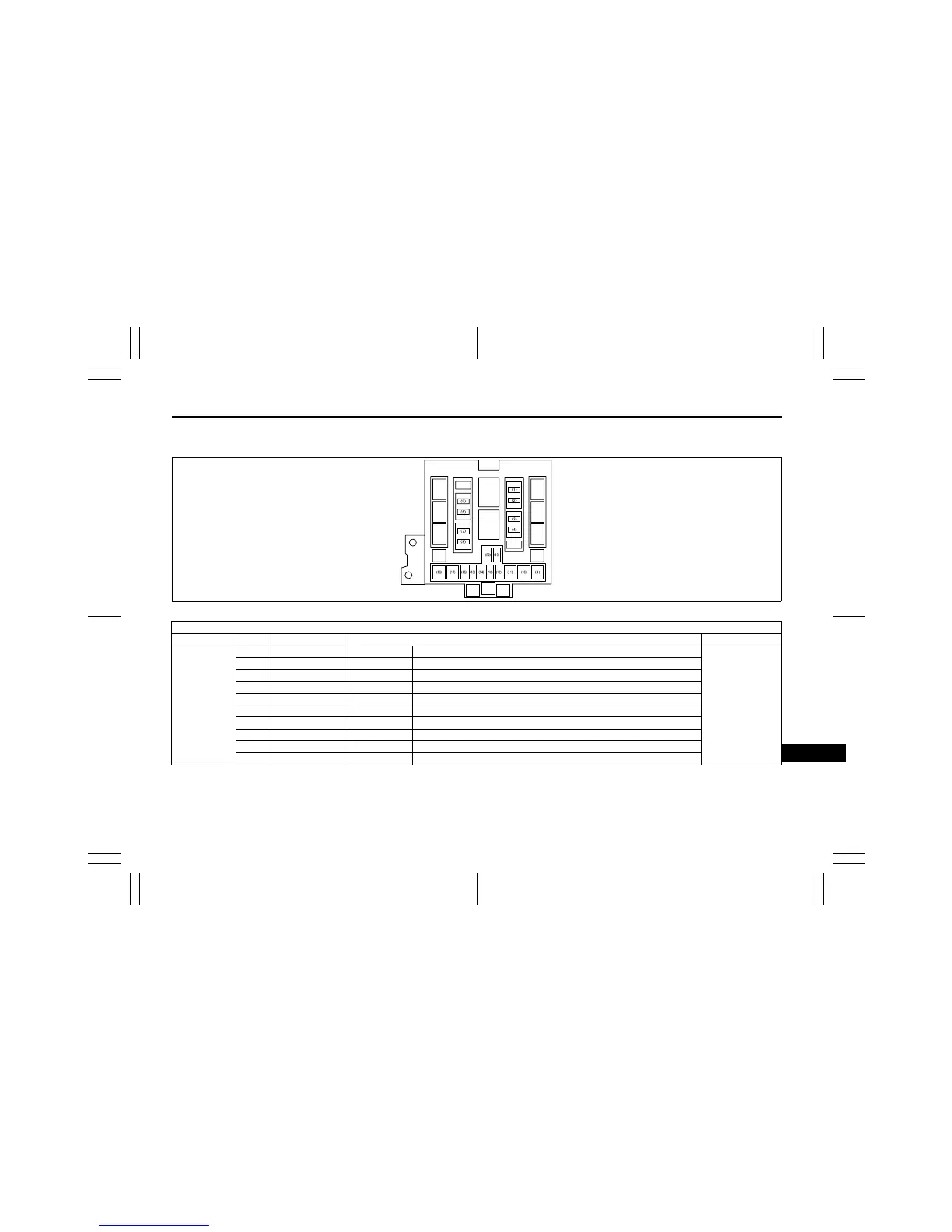

FUSES AND PROTECTED CIRCUITS

66J21-03E

FUSES AND PROTECTED CIRCUITS

64J157

FUSES

No. COLOR (AMPS) PROTECTED CIRCUIT

MAIN FUSE

BOX

(1) BLUE (15) CPRSR A/C compressor fuse

In engine

compartment

(2) YELLOW (20) O2 HTR O2 sensor heater fuse

(3) BLUE (15) THR MOT Throttle motor fuse

(4) YELLOW (20) AT Automatic transmission fuse

(5) CLEAR (25) RR DEF Rear defogger fuse

(6) BLUE (15) HORN Horn fuse

(7) YELLOW (20) FR FOG Front fog light fuse

(8) YELLOW (20) MRR HTR Mirror heater fuse

(9) GREEN (40) FR BLW Front blower motor fuse

(10) PINK (30) ABS 2 ABS actuator fuse
