7-24 POWER UNIT

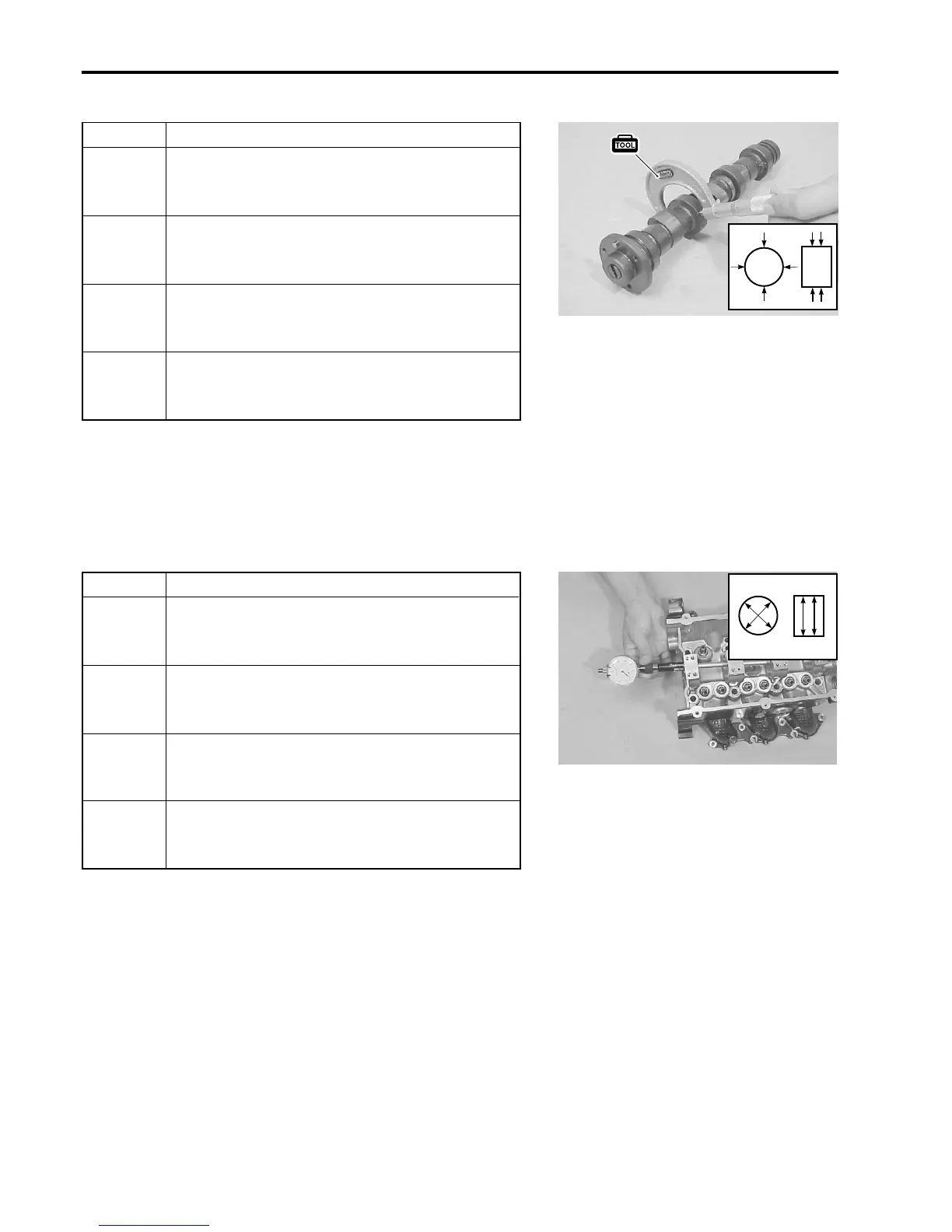

Camshaft journal outside diameter
Journal No. Diámetro exterior de los muñones
STD : 43.425 – 43.450 mm
Top (1.7096 – 1.7106 in.)
Límite : 43.375 mm ( 1.7077 in.)
STD : 43.625 – 43.650 mm
2nd (1.7175 – 1.7185 pulg.)
Límite : 43.575 mm (1.7156 in.)
STD : 43.825 – 43.850 mm
3rd (1.7254 – 1.7264 in.)
Límite : 43.775 mm (1.7234 in.)
STD : 44.025 – 44.050 mm
4th (1.7333 – 1.7343 in.)
Límite : 43.975mm (1.7313 in.)
NOTE:
The location No.s of journal are in order from the flywheel mag-
net to the bottom of cylinder.
Camshaft journal bore diameter
Journal No. Diámetro interior del orificio de los asientos
STD : 43.500 – 43.525 mm
Top (1.7126 – 1.7136 in.)
Límite : 43.534 mm (1.7139 in.)
STD : 43.700 – 43.725 mm
2nd (1.7205 – 1.7215 in.)
Límite : 43.734 mm (1.7218 in.)
STD : 43.900 – 43.925 mm
3rd (1.7283 – 1.7293 in.)
Límite : 43.934 mm (1.7300 in.)
STD : 44.100 – 44.125 mm
4th (1.7362 – 1.7372 in.)
Límite : 44.134 mm (1.7376 in.)
