4-4 ELECTRICAL
[
U

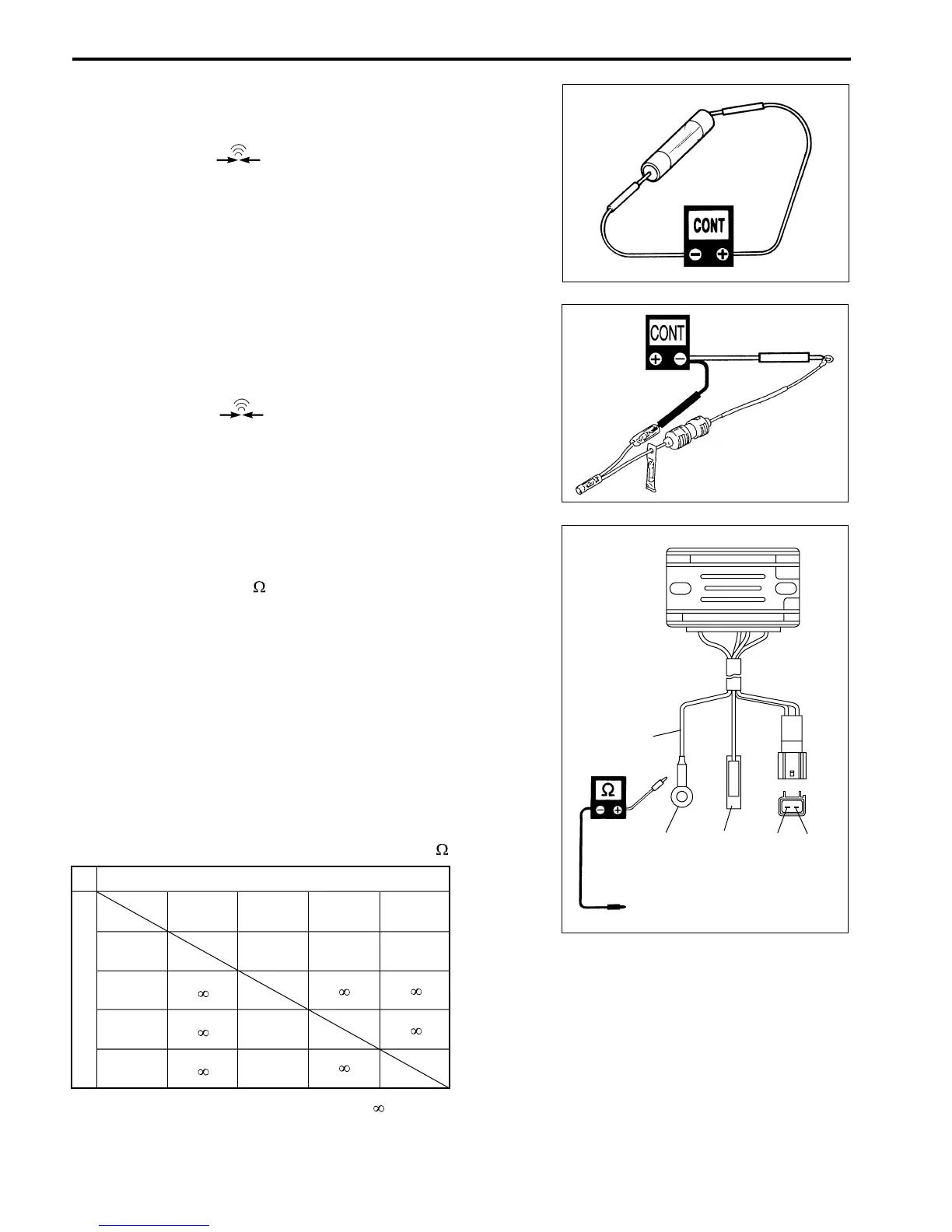

RECTIFIER & REGULATOR
09900-25002 : Pocket tester
Tester range : × 1k (Resistance)
1. Disconnect all lead wires of rectifier & regulator.
2. Measure resistance between leads in the combinations
shown.
NOTE:
The values given below are for a SUZUKI pocket tester.
As thyristors, diodes, etc. are used inside this rectifier & regula-
tor, the resistance values will differ when an ohmmeter other
than SUZUKI pocket tester is used.
Rectifier & regulator resistance :
If measurement exceeds specification, replace rectifier & regu-
lator.
Tester probe
++
++
+ (Red)
Tester probe
-- --
- (Black)
Black White Yellow Red
Black
White
Yellow
Red
Unit : Approx. k
ON
(2.6)
: Infinity
Fuse case
1. Disconnect all wires of fuse case.
2. Check continuity between White / Red lead wire with plate
terminal and the other two lead wires.
S Tester range : (Continuity)
If no continuity is indicated, replace fuse case.
FUSE CASE / FUSE
[09930-99320 : Digital tester
S Tester range : (Continuity)
Fuse
1. Remove the fuse from fuse case.
2. Inspect fuse and replace with a new 25-amp fuse if needed.
ON
(2.8)
ON
(2.5)
ON
(2.5)
ON
(3)
B
B
W
Y
R
