49
If not equipped with Keyless Start System:
NOTE:
If equipped with Keyless Start System:
The PTT switch on the remote control lever
cannot be activated when the keyless start sys-
tem is in OFF state.
If not equipped with Keyless Start System:
The PTT switch on the remote control lever can
not be activated when the ignition key is off.
NOTE:
Repeated operation of the power trim and tilt
(PTT) causes the overheating of the PTT motor
and the protection circuit may stop the opera-
tion of the motor. While the protection circuit
activated, the PTT switch is inoperative. This
inoperative condition of the system is cancelled
once the overheating is resolved.

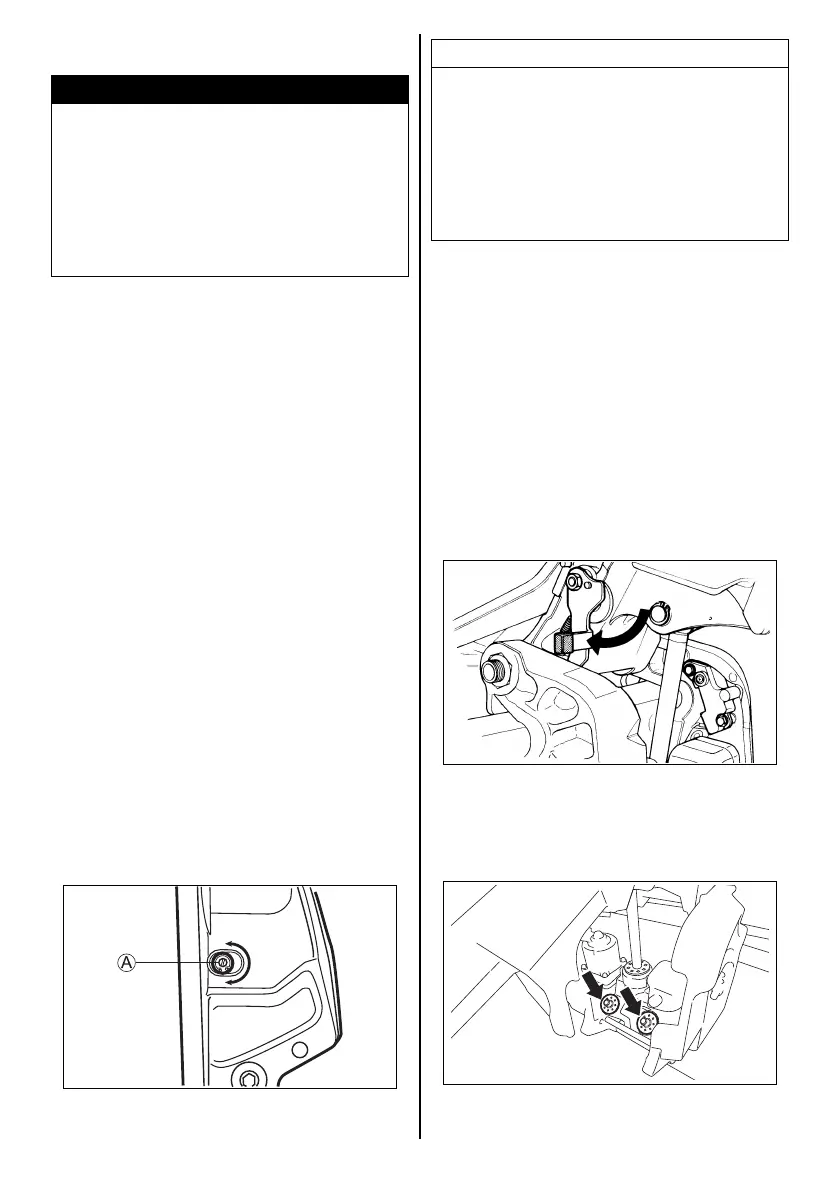

MANUAL TILTING
If you are unable to tilt the motor using the
“Power Trim and Tilt” because of an electrical
problem or some other problem, you can move
the motor manually. To tilt the motor up or
down, turn the manual release valve A two
turns counterclockwise, move the motor to the
desired position, then retighten the release
screw.
V
WARNING
The power trim and tilt (PTT) switch on the
side cover can be accidentally activated when
the ignition key is off, resulting in injury.
Keep all persons away from the outboard
motor to help prevent accidental activation of
the PTT system.
TILT LOCK LEVER
The Tilt Lock Lever is provided so you can sup-
port the motor in a tilted position for non-moving
engine support.
To set the Tilt Lock Lever:
1. Tilt the motor all the way up by pressing the
Power Trim and Tilt “UP” switch.
2. Pull down the Tilt Lock Lever as shown in the
illustration.
3. Lower the motor by pressing the Power Trim
and Tilt “DOWN” switch, until the motor is
supported by the Tilt Lock Lever.
4. For DF140BG:
Continue to operate the Power Trim and Tilt
“DOWN” switch until the trim rods are com-
pletely retracted.
V
CAUTION
The motor is very heavy. When you tilt it man-
ually, you could injure your back or slip and
fall causing injury.
When you tilt the motor manually, ensure that
your grip and footing are secure and that you
are able to support the weight of the engine.
