Suzuki DF200 Owner's Manual

46
NOTE:
Consult your authorized Suzuki Marine Dealer
for inspection and replacement of internal
anodes attached to the powerhead.
NOTICE
If anodes are not properly maintained,
underwater aluminum surfaces (such as
the lower unit) will suffer galvanic corro-
sion damage.
• Periodically inspect anodes to make
sure they have not become detached.
• Do not paint anodes, as this will render
them ineffective.
• Periodically clean anodes with a wire
brush to remove any coating which
might decrease their protective ability.

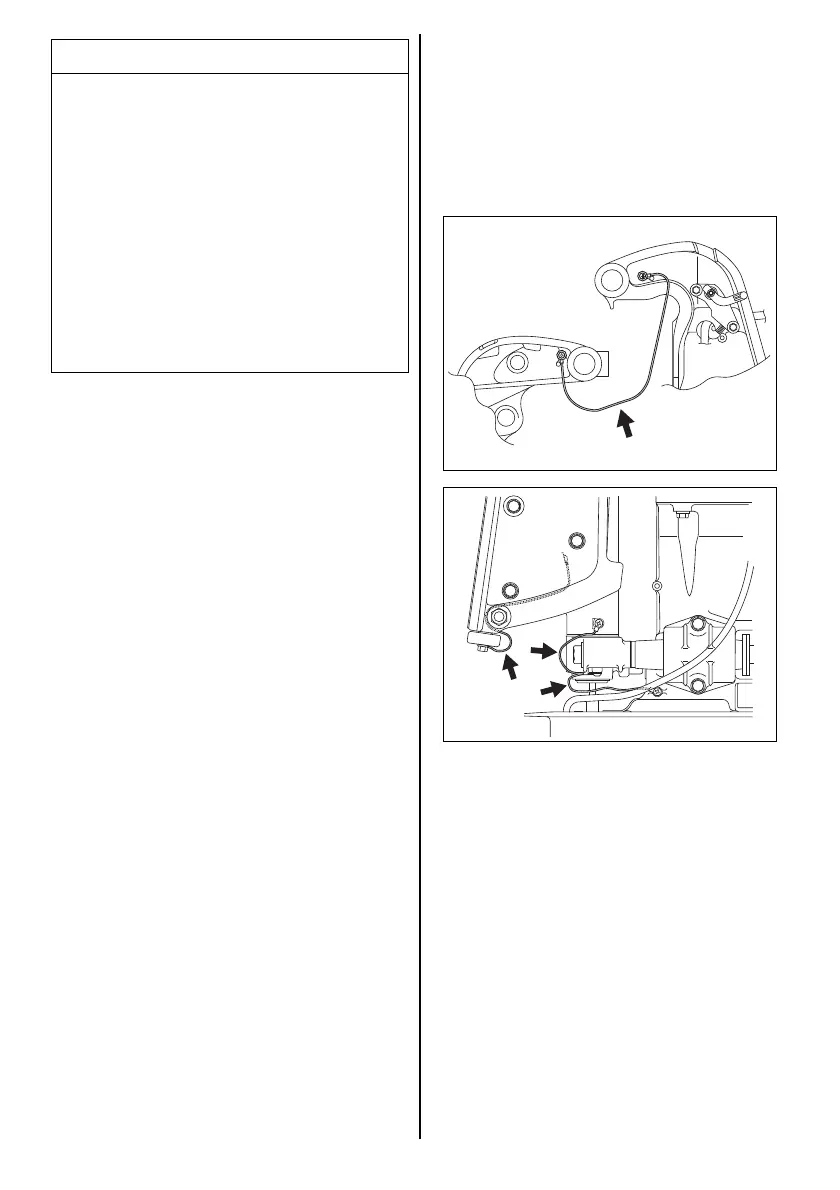

BONDING WIRES
Bonding wires are used to electrically connect
the engine components so they exist in a com-
mon ground circuit. This allows them to be pro-
tected against electrolysis by the anodes.
These wires and their terminals should be
checked periodically to be sure they have not
been damaged.

Suzuki DF200 Specifications

General

Bore x Stroke	97 mm x 97 mm
Maximum Output	200 HP
Fuel Delivery System	Multi-Point Sequential Electronic Fuel Injection
Starting System	Electric
Gear Ratio	2.29:1
Number of Cylinders	4
Maximum Output (kW)	147 kW
Steering	Remote
Max Power	200 HP
Trim Method	Power Trim and Tilt
Exhaust	Through Prop Hub Exhaust
Displacement	2, 867 cc
Weight	226 kg
Full Throttle Operating Range	5, 500 - 6, 100 rpm
Oil Capacity	8.0 L
Full Throttle RPM Range	5500 - 6100 RPM
Shaft Length	20 inches, 25 inches
Alternator Output	44 A
Engine Type	4-Stroke DOHC 16-Valve
