3. Make sure that remote control handle is in
“NEUTRAL”.
4. Confirm the select LED lights, if not, depress
the select switch on the remote control box.

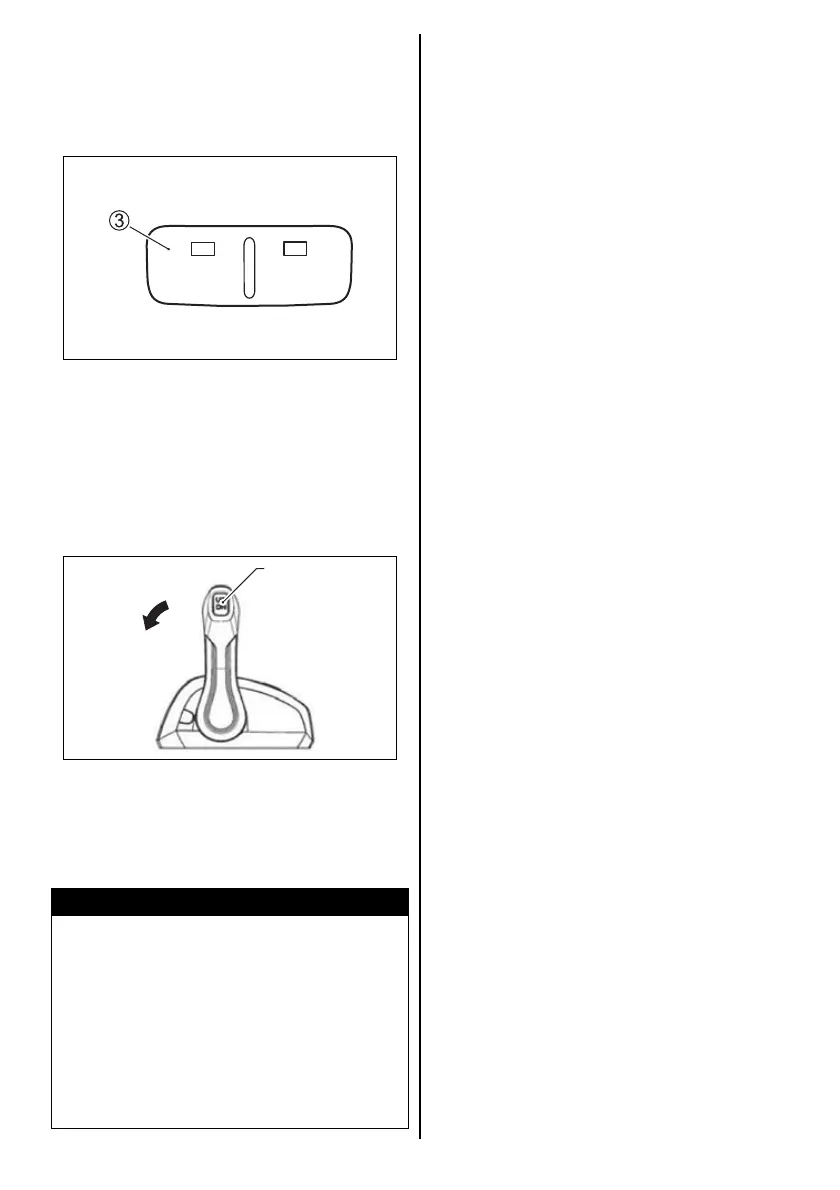

Depress the “THROTTLE ONLY” button 3.
5. Move the control handle forward until the
caution buzzer sounds one time.
At this time, the message of “Set Limit
Angle” will appear on the gauge screen.
Press the “UP” side of the PTT switch for
three seconds and the buzzer will sound
twice briefly indicating the setting has been
canceled.
6. Return the throttle to the fully closed posi-
tion.
SETTING THE TILT UPPER POSITION
LIMIT
V
WARNING
Setting of the tilt upper limit position will not
prevent the outboard motor from tilting fully
up and contacting the motor well if the
motor’s lower unit hits an object at high
speed. Such tilting could damage your motor
and boat and injure the boat occupants.
Keep all occupants away from the motor when
operating at high speed.
UP
1. If equipped with Keyless Start System:
Press and hold the engine switch for more
than two seconds to turn on the power.
If not equipped with Keyless Start System:
Turn the ignition key to the “ON” position.
2. Press the “UP” side of the PTT switch so that
the optimum full tilt up position for the boat
can be obtained.
3. Pull out the emergency stop switch lock
plate.
4. Make sure that remote control handle is in
“NEUTRAL”.
5. Confirm the select LED lights, if not, depress
the select switch on the remote control box.
Depress the “THROTTLE ONLY” button.
6. Move the control handle forward until the
caution buzzer sounds one time.
7. Press the “UP” side of PTT switch three
times within three seconds. The buzzer will
sound one time briefly indicating the setting
has been accepted.
8. Return the throttle to the fully closed position
and install the lock plate on the emergency
switch. Operate the full tilt up and full down
operations several times by pressing the
PTT switch and check that the setting of the
tilt upper limit is properly set.
