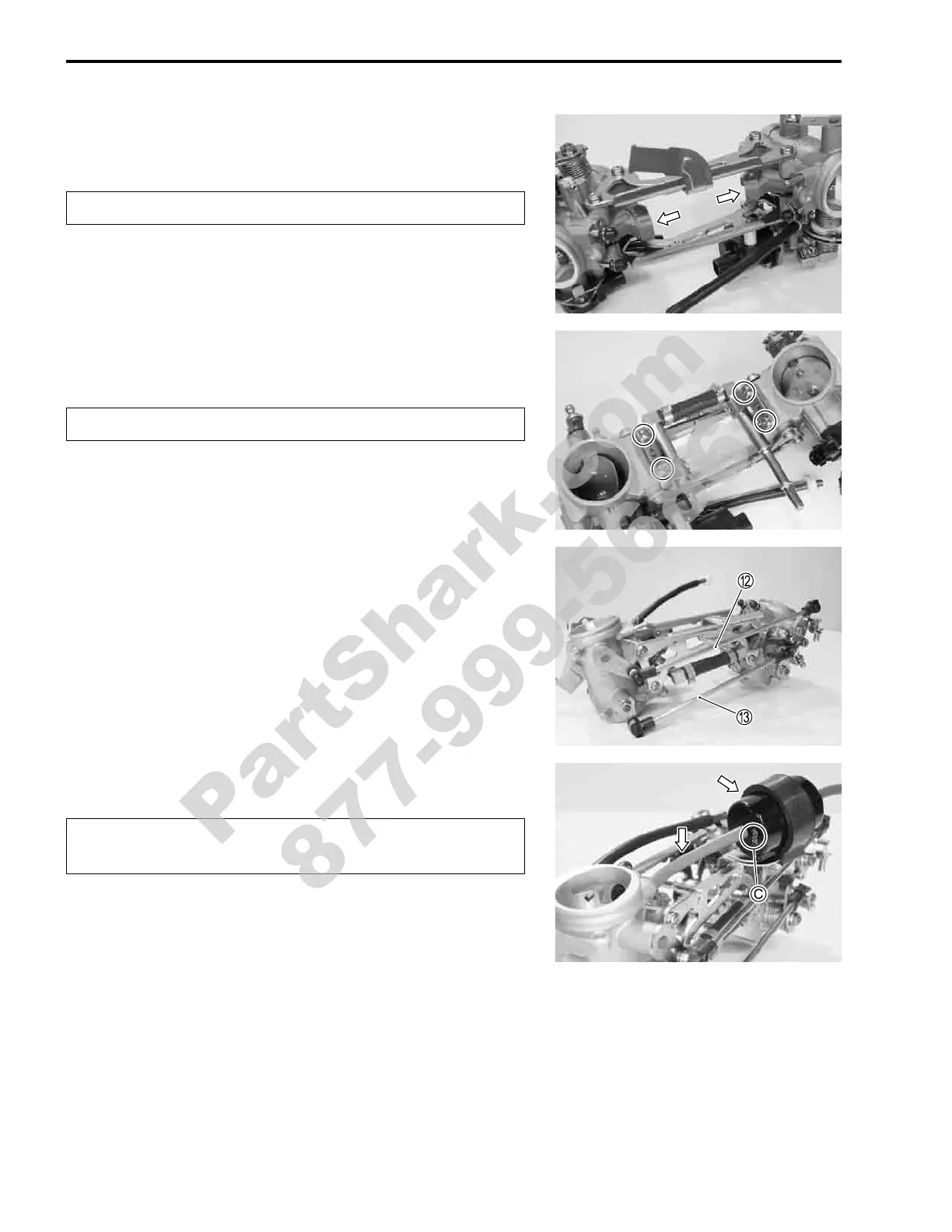

5-26 FUEL SYSTEM AND THROTTLE BODY
• Install the fuel injectors by pushing them straight to each throt-
tle body.
"
• Install the fuel delivery pipe assembly to the throttle body
assembly.
"
• Tighten the fuel delivery pipe mounting screws.
' Fuel delivery pipe mounting screw:
5.0 N·m (0.5 kgf-m, 3.7 lb-ft)
• Install the throttle link rod

B and secondary throttle link rod

C.
NOTE:
The throttle link rod

B
is longer than the secondary throttle link
rod

C
.
• Install the IAP sensor vacuum damper and hose.
"
Never turn the injector while pushing it.
Never turn the fuel injectors while installing them.
The stamp

C of the IAP sensor vacuum damper faces
into the throttle body side.
