SERVICING INFORMATION 9-23

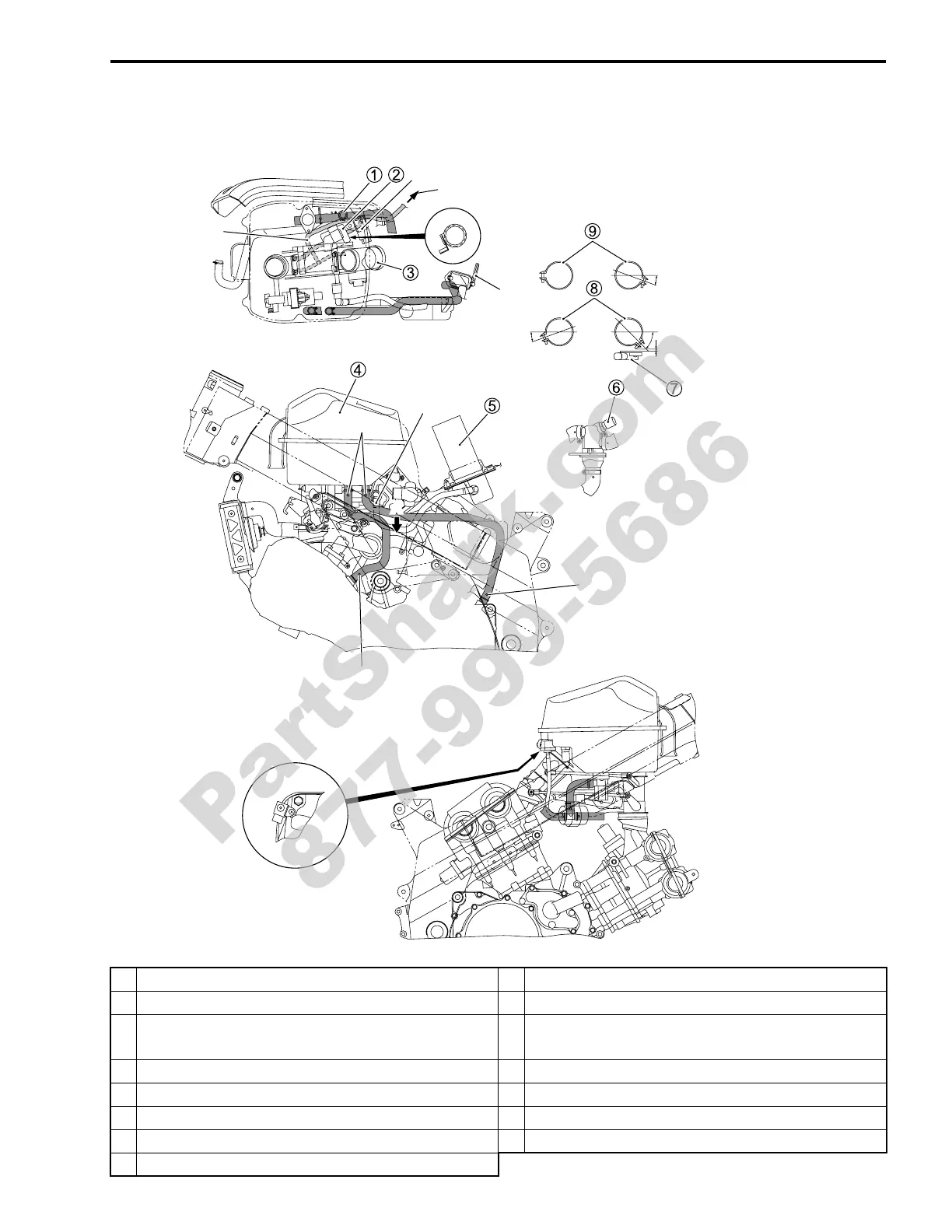

THROTTLE BODY INSTALLATION/HOSE ROUTING
\
15 Ëš ~ 25 Ëš
*4
*1
*2
*3
*5
*6
*6
VIEW A
*6
40 Ëš ~ 50 Ëš
2 ~ 5 mm (0.08 ~ 0.20 in)
15 Ëš ~ 25 Ëš
A

1 IAT sensor

9 Intake pipe clamp

2 Vacuum damper *1 To canister (For E-33)

3
Throttle body assembly
*2
Pass through the vacuum hose inside the PAIR
hose.

4 Air cleaner box *3 E-33 Only

5 Fuel pump assembly *4 HO2 sensor clamp (For E-02, 19)

6 ECT sensor *5 Matching mark (Yellow)

7 TP sensor *6 Matching mark (White)

8 Outlet tube clamp
