7-32 CHASSIS

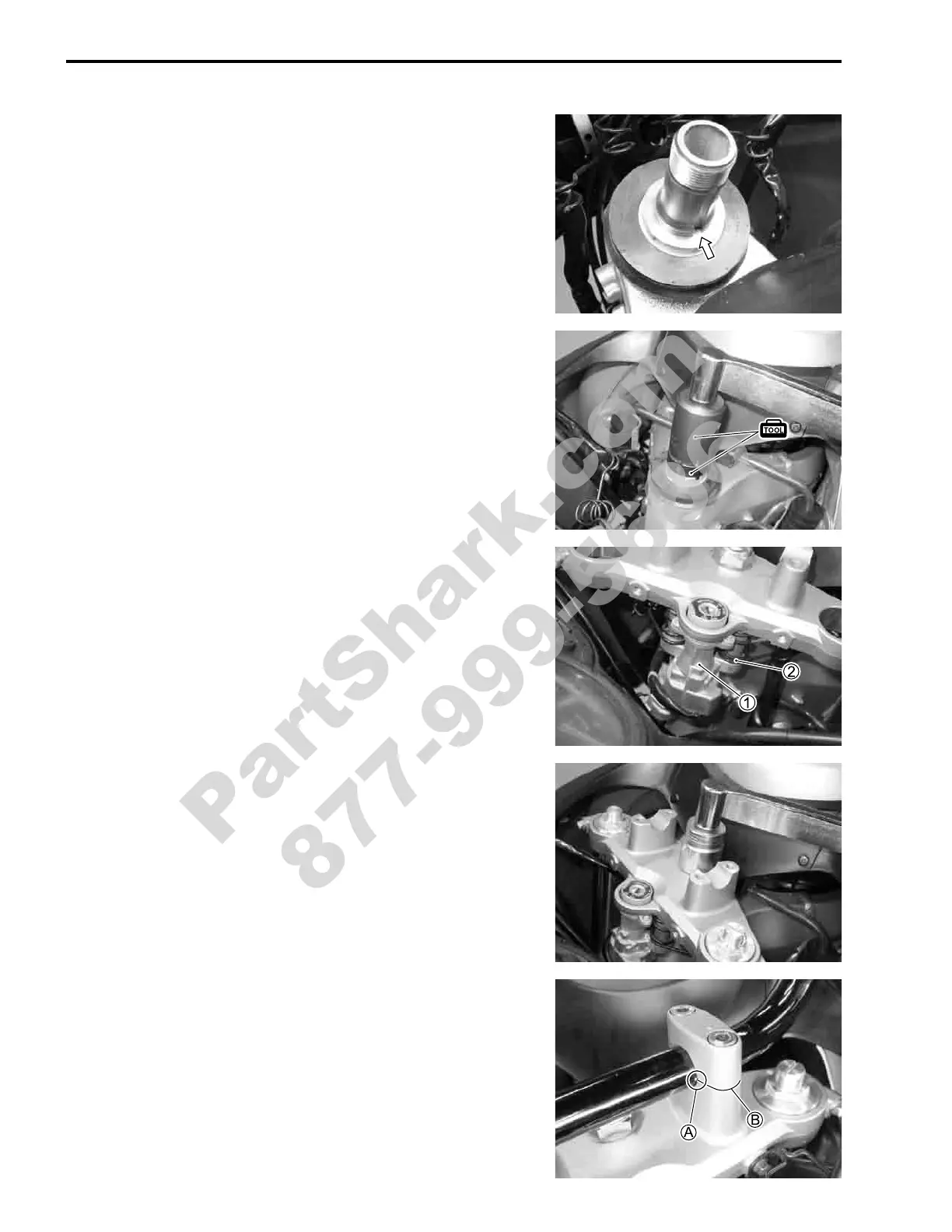

• Install the washer.
NOTE:
When installing the washer, align the stopper lug to the groove
of the steering stem.
• Install the steering stem lock-nut and tighten it to the specified
torque with the special tools.
$ 09940-14911: Steering stem nut wrench
09940-14960: Steering stem nut wrench socket
! Steering stem lock-nut: 80 N·m (8.0 kgf-m, 58.0 lb-ft)
• Install the steering stem upper bracket and tighten the steer-
ing stem nut lightly.
• Install the ignition switch

1 and harness guide

2. ("8-38)
• Install the front fork to the steering stem and tighten the lower
clamp bolts temporarily.
• Tighten the steering stem head nut to the specified torque.
! Steering stem head nut: 90 N·m (9.0 kgf-m, 65.0 lb-ft)
• Remount the front forks and the front fender. ("7-21)
HANDLEBARS
• Install the handlebars with the punch mark

A aligned with the
mating surface

B of the handlebar holder.
