ELECTRICAL SYSTEM 8-11

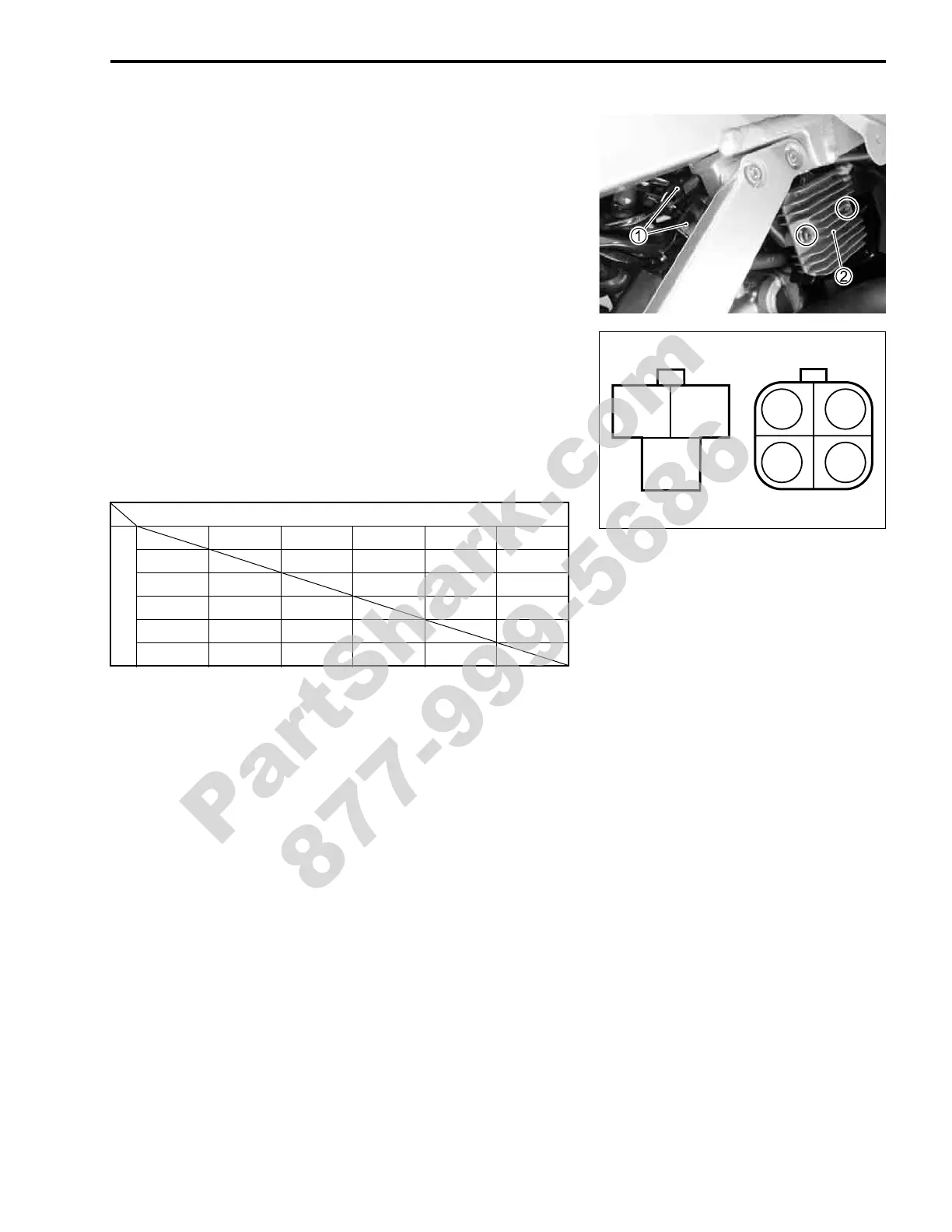

REGULATOR/RECTIFIER
• Remove the right cowling. (!7-5)
• Disconnect the regulator/rectifier couplers

1.
• Remove the regulator/rectifier

2.
Measure the voltage between the terminals using the multi cir-
cuit tester as indicated in the table below. If the voltage is not
within the specified value, replace the regulator/rectifier with a
new one.
# 09900-25008: Multi circuit tester set
) Tester knob indication: Diode test (*)
Unit: V
✽ 1.4 V and more (tester’s battery voltage)
NOTE:
If the tester reads 1.4 V and below when the tester probes are not
connected, replace its battery.

+ Tester probe

- Tester probe
B/RB1B2B3B/W
B/R 0.4 – 0.7 0.4 – 0.7 0.4 – 0.7 0.5 – 1.2
B1 ✽✽✽0.4 – 0.7
B2 ✽✽ ✽0.4 – 0.7
B3 ✽✽✽ 0.4 – 0.7
B/W ✽✽✽✽
B/R B/R
B/W B/W
B2 B1
B3
