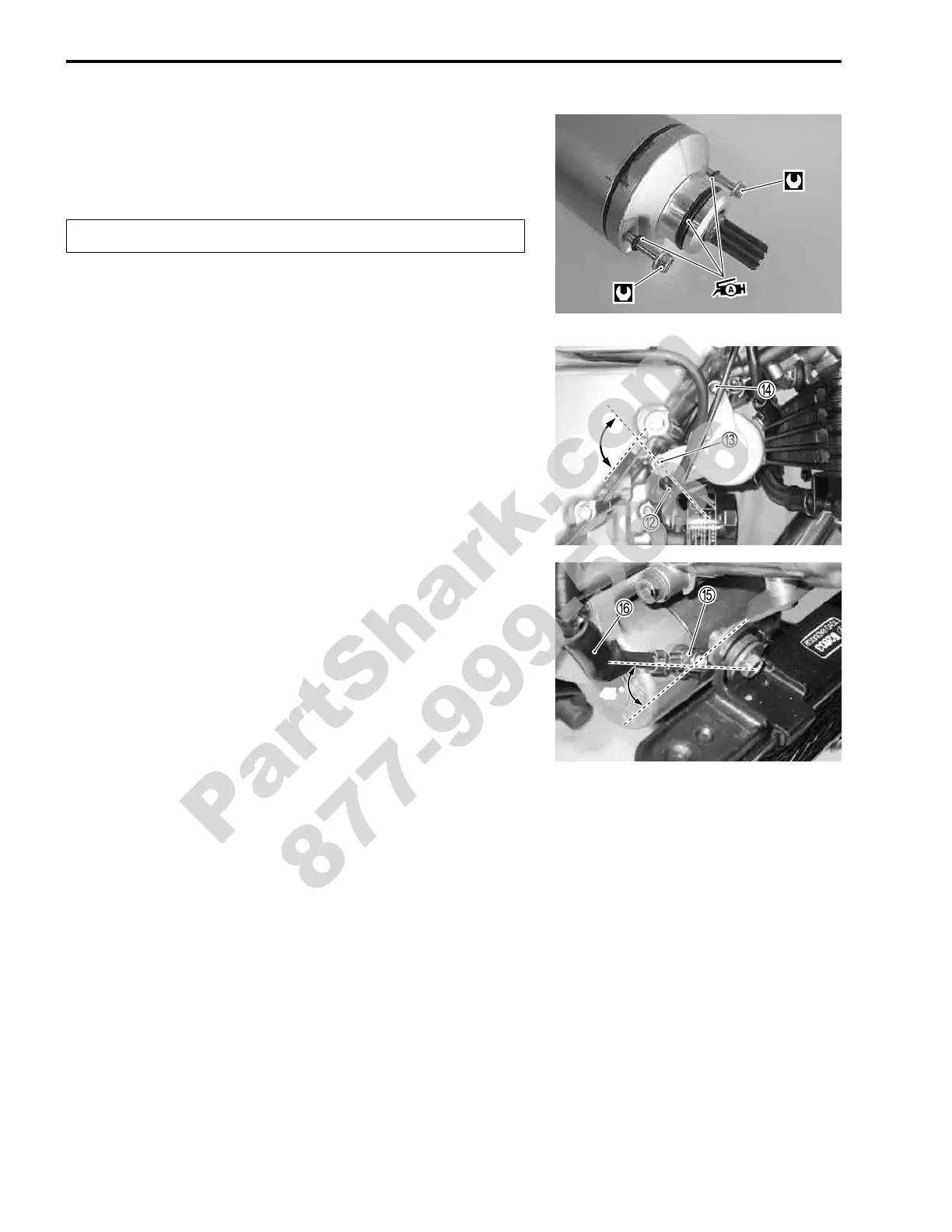

8-18 ELECTRICAL SYSTEM
• Apply SUZUKI SUPER GREASE to the starter motor O-rings.
- 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
"
• Tighten the starter motor housing bolts to the specified
torque.
/ Starter motor housing bolt: 3.5 N·m (0.4 kgf-m 2.45 lb-ft)
• Install the starter motor.
• Install the clamp
B as shown.
• First tighten the starter motor lower mounting bolt
C, then
tighten the starter motor upper mounting bolt
D.
• Connect the starter motor read wire as shown.
• Tighten the nut
E and fit the cap
F.
Use new O-rings to prevent oil leakage.
90 ˚
45 ˚
