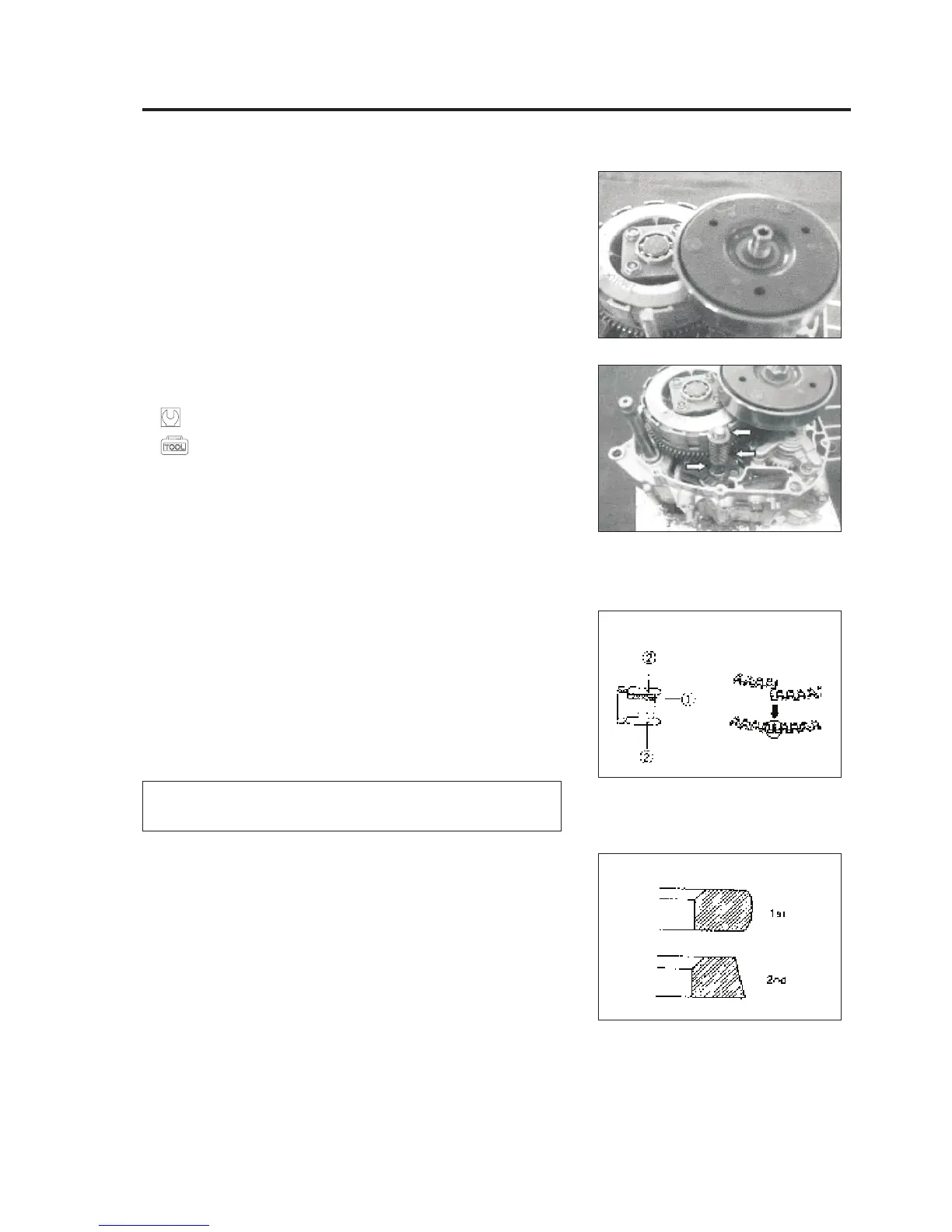

ENGINE 3-41
•Installing the first clutch to the crankshaft.
•Tighten the first clutch shoe nut to specified torque by using
the special tool.
"
First clutch shoe nut: 5 N-m (5.0 kg-m)
\ 9915-20115: Conrod holder
NOTE:
Clean the oil filter when reassembling it.
CLUTCH ADJUSTMENT
Refer to page 3-14.
PISTON AND RING
•Install space 1 into the bottom ring groove first. Then install
both side rails 2 , one on each side of the spacer. The spacer
and side rails do not have a specific top or bottom when they
are new. When reassembling used parts, install them in their
original place and direction
•1st ring and 2nd ring differ in the shape of ring face and the
face of 1st ring is chrome-plated whereas that of 2nd ring is
not. the color of 2nd ring appears darker than that of the 1st
ring.
When installing the spacer, be careful not to allow its
two ends to overlap in the groove.
correct
incorrect
