FRONT SUSPENSION 3D-7
1. E-ring
2. Bracket end surface
INSTALLATION

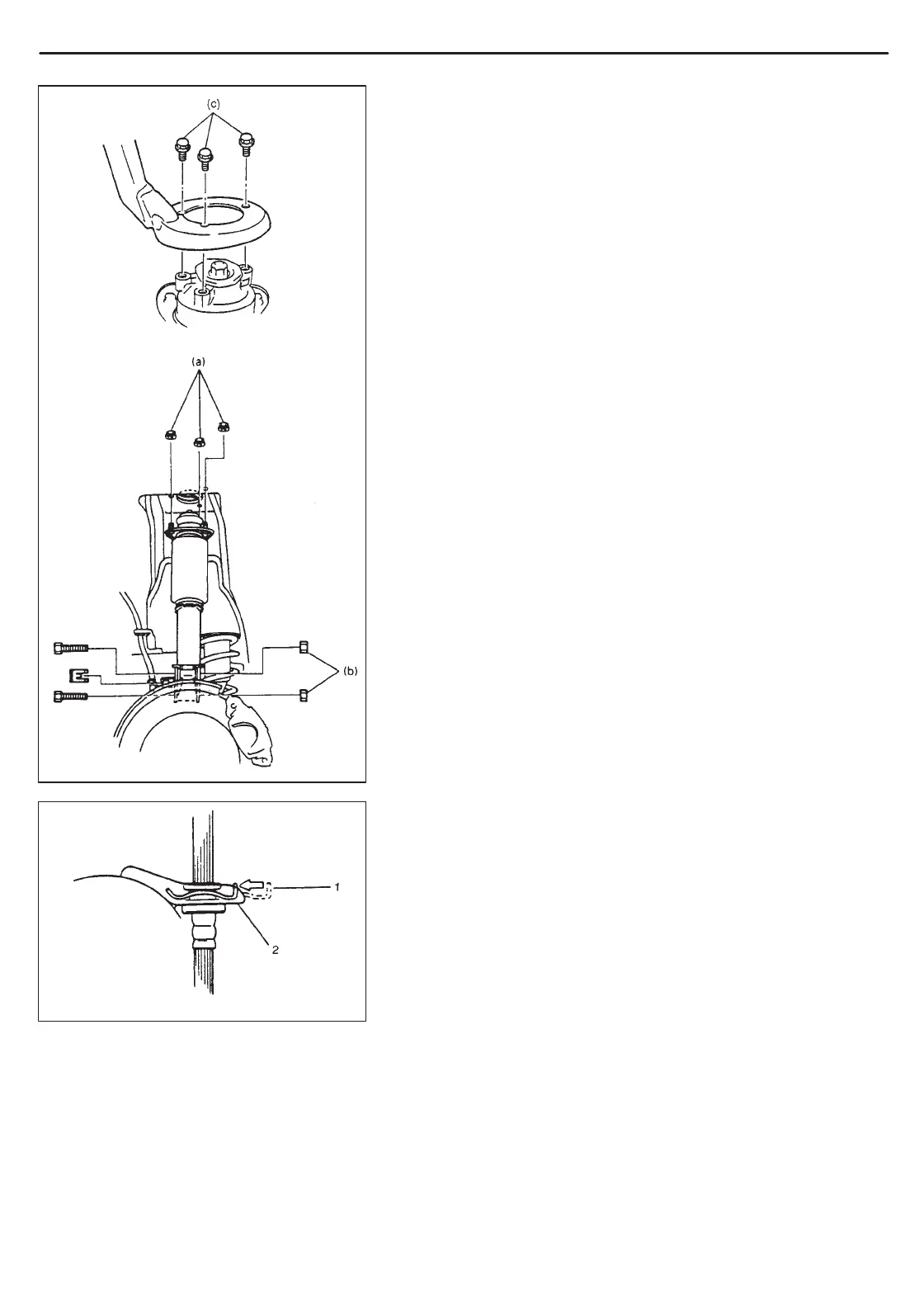

1) Install strut by reversing removal steps 1) – 8). Insert bolts in
such a direction as shown.
2) Torque all fasteners to specifications.
Tightening Torque
(a): 55 N
.
m (5.5 kg-m, 40.0 lb-ft)
(b): 95 N
.
m (9.5 kg-m, 69.0 lb-ft)
(c): 50 N
.
m (5.0 kg-m, 36.5 lb-ft)
NOTE:
Brake hose installation.
Don’t twist hose when installing it. Install E-ring as far as
bracket end surface as shown.
