AUTOMATIC TRANSMISSION (4 A/T) 7B1-67

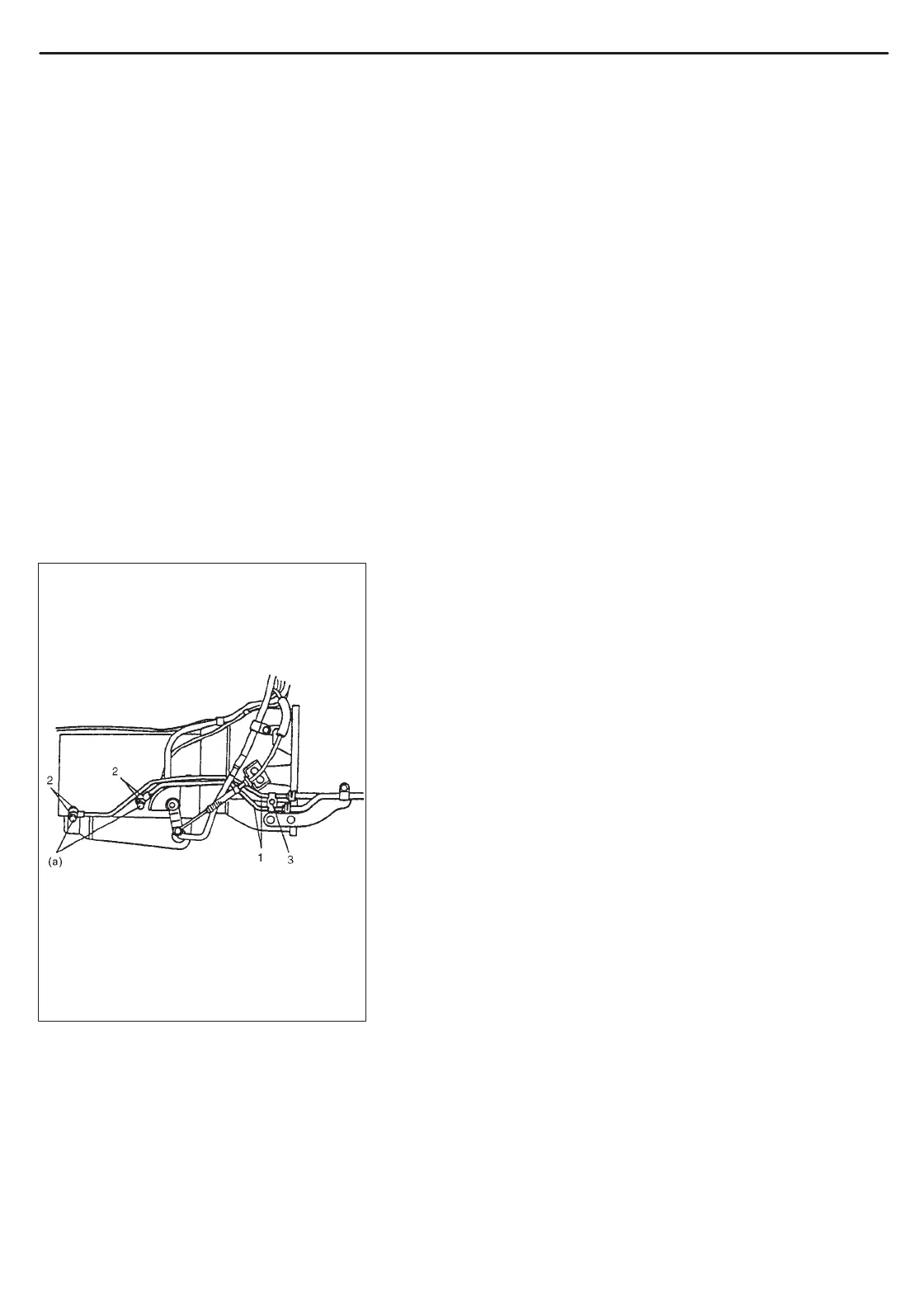

1. Oil cooler pipes
2. Union gaskets
3. Pipe bolt
OIL COOLER PIPES
REMOVAL
1) Lift up vehicle.
2) Make sure to wash dirt off from around pipe joints.
3) With engine is cool, loosen oil cooler pipe union bolts with oil out-
let union locked and remove oil cooler pipes from oil outlet
unions and hoses.
NOTE:
To avoid fluid leakage, plug open ends of oil outlet unions
and hoses right after they are disconnected.
INSTALLATION
1) Use new union gaskets and connect oil cooler pipes to oil outlet
unions.
2) Connect hoses to pipes and clamp them securely.
3) Tighten union bolts to specified torque with oil outlet union
locked.
Tightening Torque
(a): 35 N
.
m (3.5 kg-m, 25.5 lb-ft)
4) Tighten pipe bolt securely.
5) Check A/T fluid level according to procedure described in “Fluid
Level” section.
Add if necessary.
6) Check for fluid leakage after warming up A/T.
