YH4

GRAND

VITARA

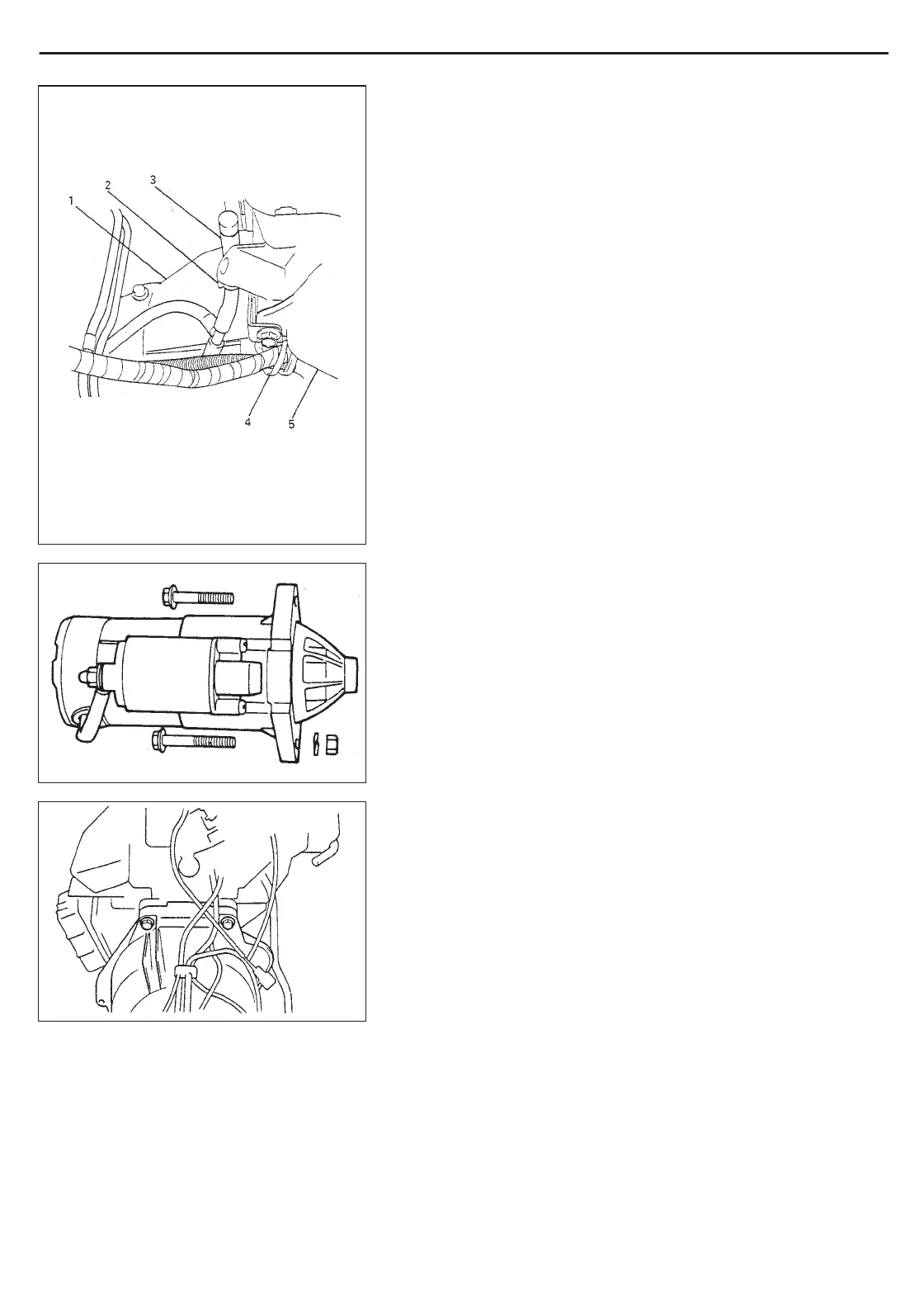

1. Transmission

2. Breather clamp

3. Breather hose

4. Wiring harness clamp

5. Intake manifold

MANUAL TRANSMISSION (TYPE 1) 7A-9

DISMOUNTING OF TRANS. UNIT

IN CABIN

Remove transmission shift control lever (refer to page 7A-4) and

transfer shift control lever knob.

IN ENGINE ROOM

1) Disconnect negative (–) cable of battery.

2) Remove breather hose from clamp at the rear end of cylinder

head.

3) Remove starting motor fixing bolts and nut and then remove

starter.

4) Remove transmission fastening bolts.
