YH4
GRAND
VITARA
9-14 BODY SERVICE
1. Door window
regulator attaching
nuts
2. Hole
1. Window regulator lubrication points
1. Door sealing
cover
2. Adhesive

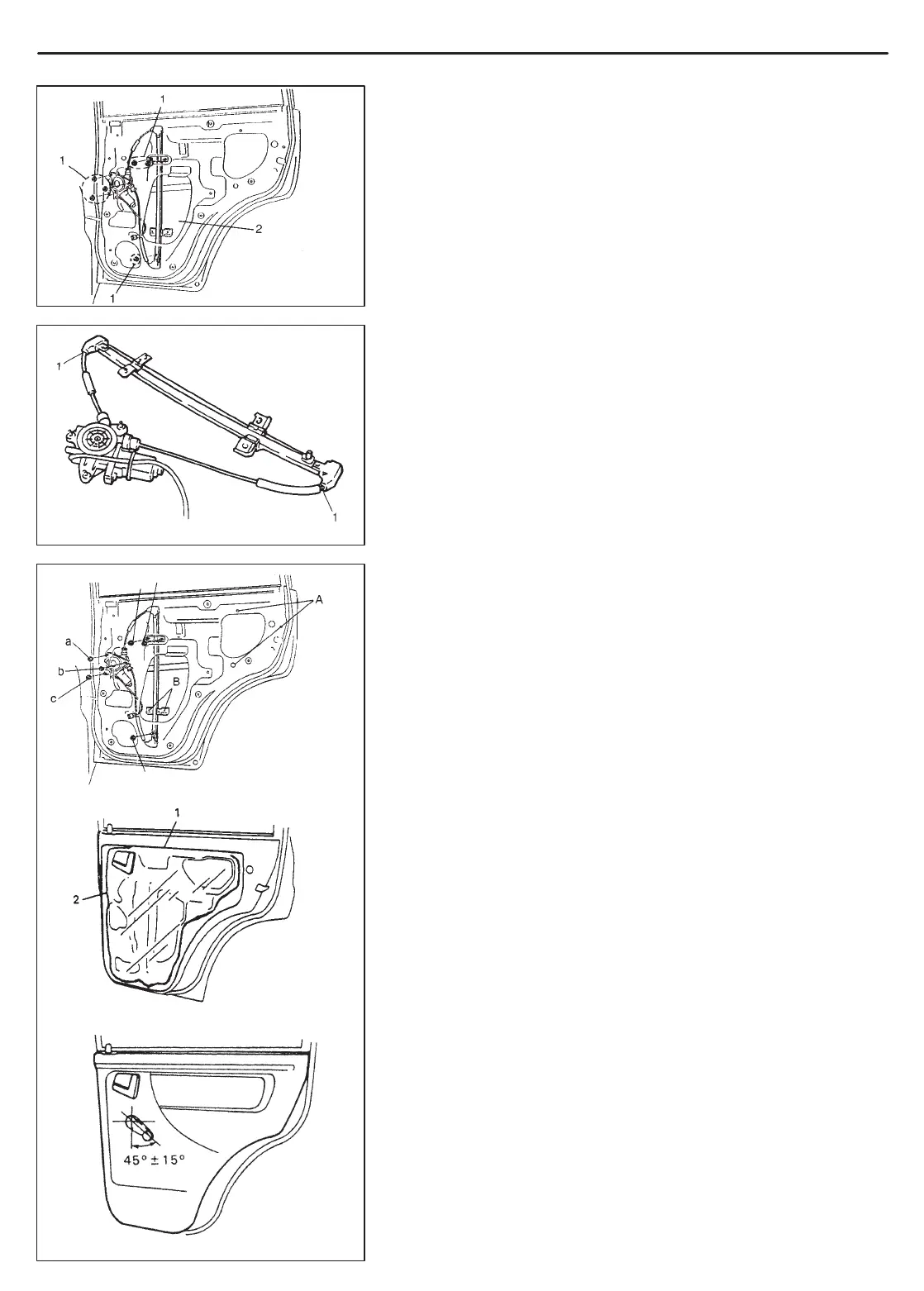

REAR DOOR WINDOW REGULATOR
REMOVAL
1) Remove door glass, refer to steps 1) to 10) of REAR DOOR
GLASS REMOVAL in this section.
2) Disconnect power window motor lead wire at coupler and clamp.
3) Remove door window regulator attaching nuts (6 pcs.), and take
out regulator through hole as shown in left figure.
INSPECTION
1) Check regulator sliding and rotating parts for greasing.
2) Check rollers for wear and damage.
3) Check wire for damage.
INSTALLATION
Reverse removal sequence to install door window regulator noting
following points.
Tighten regulator base nuts according to the order (a, b, c) shown
in figure.
Adjust door window regulator according to following procedure.
a. Loosen three nuts, two screws and two bolts.
b. Raise window fully.
c. Tighten three regulator rail nuts according to the order (d, e,
f) shown in figure and two center sash bolts A.
d. Lower window.
e. Tighten two screws B to specified torque. Tighten front screw
first, then rear.
Tightening Torque for glass attaching screws
2.5 N
.
m (0.25 kg-m, 1.8 lb-ft)
f. Check that the glass moves up and down smoothly and that
the top part of the glass contacts the glass run evenly.
Securely seal door sealing cover with adhesive.
Install door window regulator handle (if equipped) so that it has
an angle as shown when glass is fully closed.
