YH4
GRAND
VITARA
“A”
1. Shaft bearing
1. Shaft oil seal
2. Right side
3. Left side

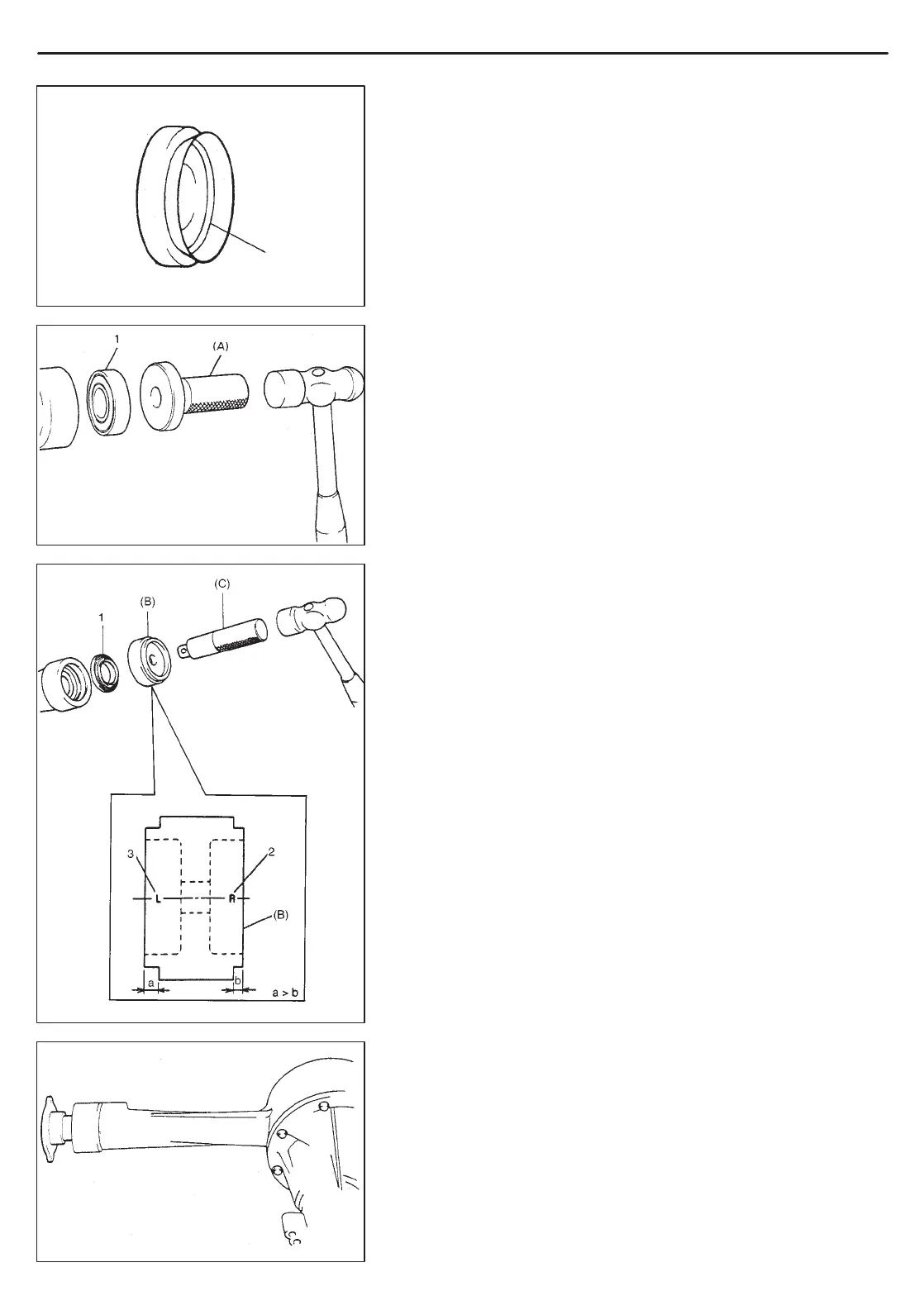

4A2-10 FRONT DRIVE SHAFT/SHAFT BEARING, OIL SEAL
INSTALLATION
1) Clean drive shaft oil seal and then apply lithium grease.
“A”: Grease 99000-25010
Check oil seal for breakage or deterioration.
Replace it as necessary.
2) Drive in drive shaft bearing with special tool (A) (on left hand
side).
Special Tool
(A): 09913-75520
3) Install circlip.
4) Drive in oil seal with special tools (B) and (C).
Special Tool
(B): 09951-16090
(C): 09924-74510
NOTE:
As depth to which oil seal should be driven into axle hous-
ing is different between the left and right, be sure to check
stamped marks on special tool (B) and drive each oil seal to
corresponding mark.
5) Install left drive shaft.
6) Install left side strut. Refer to steps 1) to 2) of item STRUT
DUMPER INSTALLATION in Section 3D.
7) Install drive shaft assembly.
Refer to DRIVE SHAFT INSTALLATION in this section.
8) Fill specified differential gear oil into differential case to specified
level.
To Next Page
