YH4
GRAND
VITARA
AUTOMATIC TRANSMISSION (4 A/T) 7B1-39
G16/J20 Engines
H25 Engine
1. PCM
2. J/B
3. Transmission range
sensor (switch)
1. PCM
2. Fuse
3. J/C
4. Transmission range
sensor (switch)

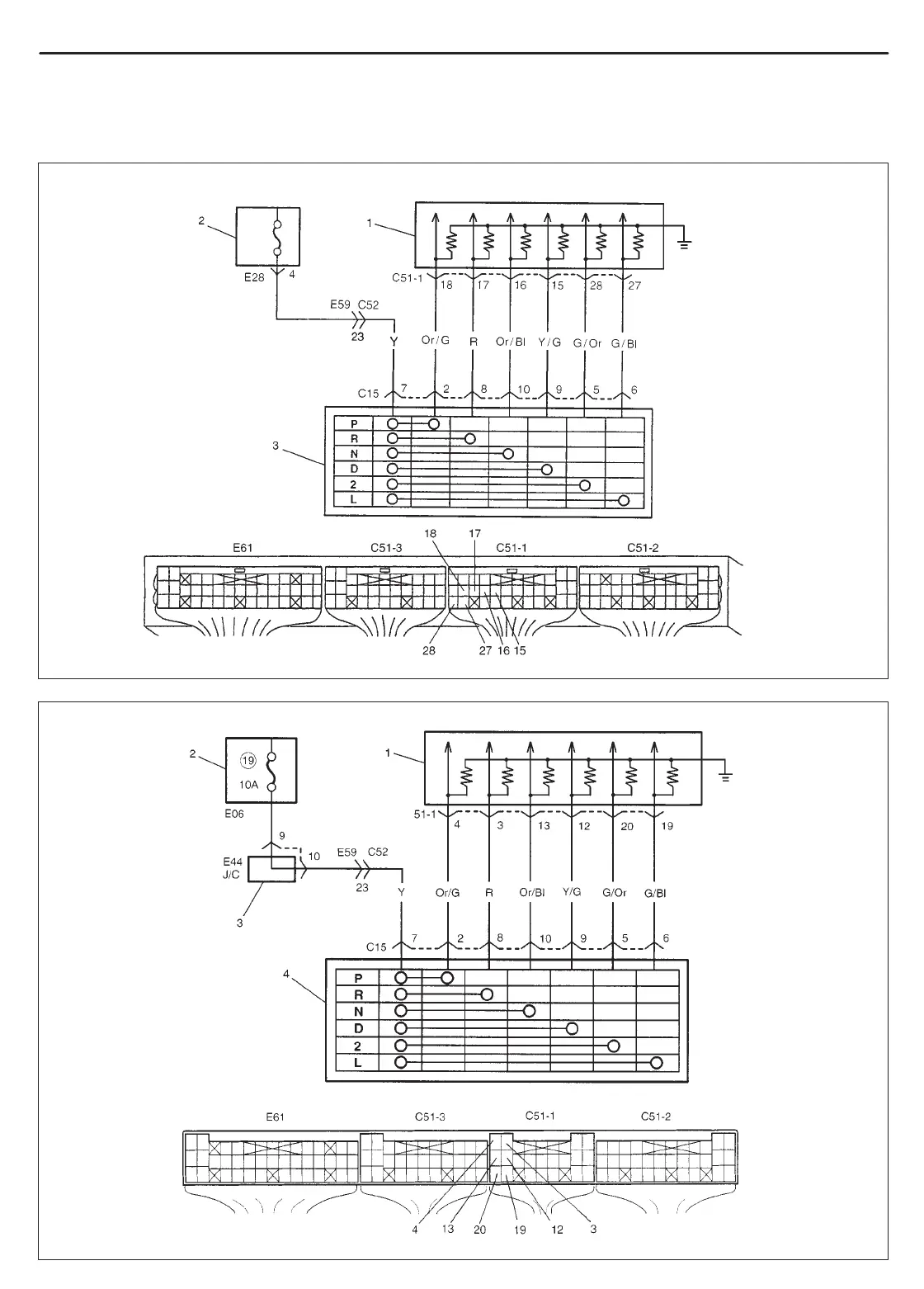

DTC P0705 (DTC NO.72) TRANSMISSION RANGE SENSOR (SWITCH) CIRCUIT
MALFUNCTION
WIRING DIAGRAM
