YH4
GRAND
VITARA
G16/J20 Engines H25 Engine
G16/J20 Engines
H25 Engine
1. PCM
2. Shift solenoid-A
3. Shift solenoid-B
4. TCC solenoid
AUTOMATIC TRANSMISSION (4 A/T) 7B1-47
DTC P0743 (DTC NO.65/66) TCC (LOCK-UP) SOLENOID ELECTRICAL

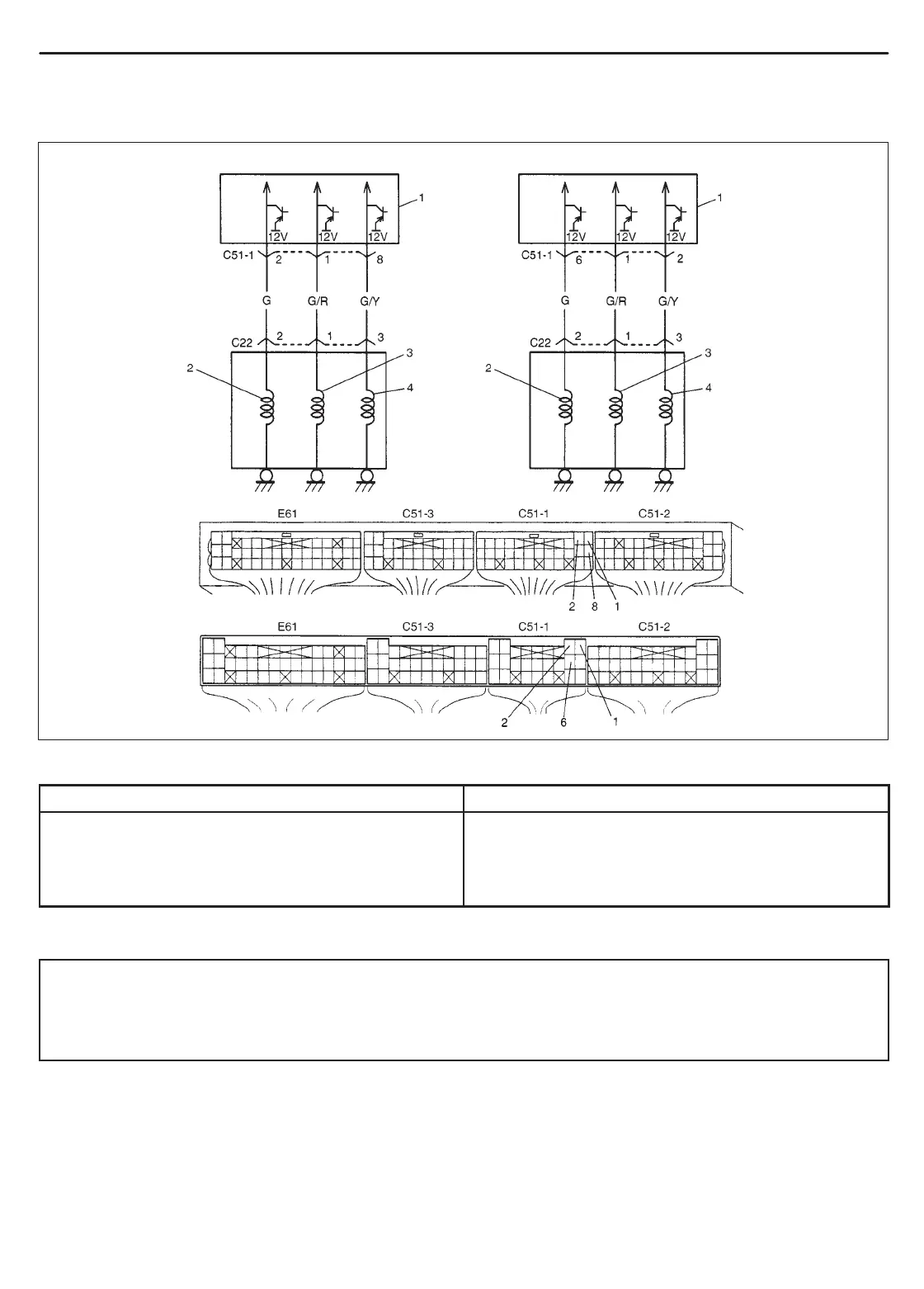

WIRING DIAGRAM
DTC DETECTING CONDITION AND TROUBLE AREA
DTC DETECTING CONDITION TROUBLE AREA
Voltage at terminal C51-1-8 for G16/J20 (C51-1-2 for
H25) of PCM is high while TCC solenoid OFF is com-
manded or low while TCC solenoid ON is comman-
ded.
TCC (lock-up) solenoid valve
TCC (lock-up) solenoid valve circuit
PCM
DTC CONFIRMATION PROCEDURE
WARNING:
When performing a road test, select a place where there is no traffic or possibility of a traffic accident
and be very careful during testing to avoid occurrence of an accident.
Road test should be carried out with 2 persons, a driver and a tester, on a level road.
1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC.
3) Start engine, warm it up to normal operating temperature and shift transfer lever to “2H” or “4H” range.
4) Shift selector lever in D range and keep it there for 10 seconds.
5) Increase vehicle speed to about 80 km/h (50 mph) in 4th gear and in D range.
6) Keep driving at above speed for 20 seconds.
7) Release accelerator pedal, decrease vehicle speed and stop vehicle.
8) Check DTC and/or pending DTC.
To Next Page
