CLUTCH 7C1-13

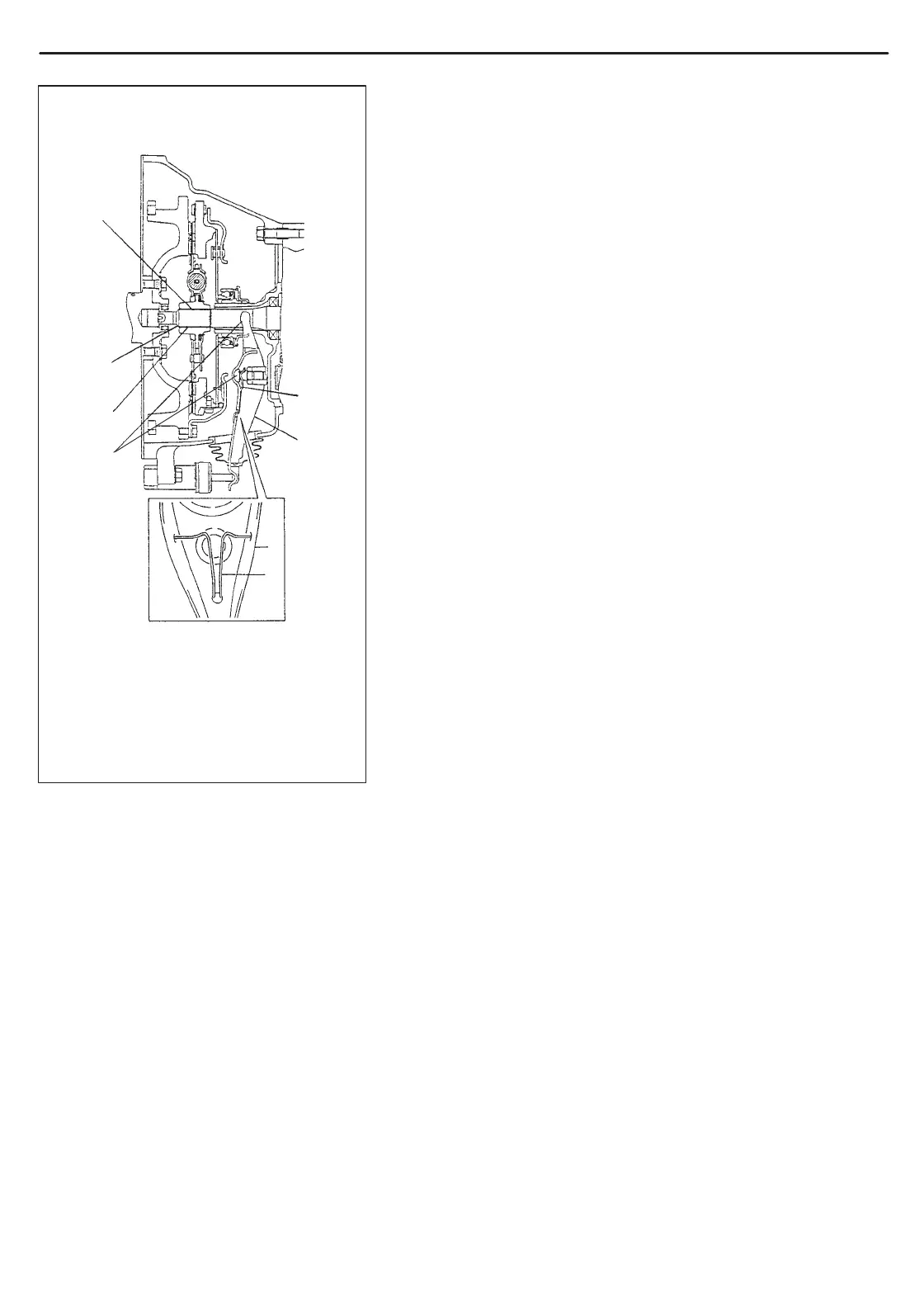

1. Release fork

2. Clip

3. Input shaft

“B”

“A”

4) Install clip to release fork and apply grease.

“A”: Grease 99000-25010

Then install release fork and release bearing as shown in figure.

5) Slightly apply grease to input shaft and install clutch disc. Then

join transmission transfer assembly with engine. Refer to SEC-

TION 7A.

“B”: Grease 99000-25210

NOTE:

Turn crankshaft with wrench from front while inserting

transmission input shaft to clutch disc until splines mesh.
