YH4
GRAND
VITARA
Type B
Type A
Type C
1. Washer tank
8D-10 WINDOWS, MIRRORS, SECURITY AND LOCKS

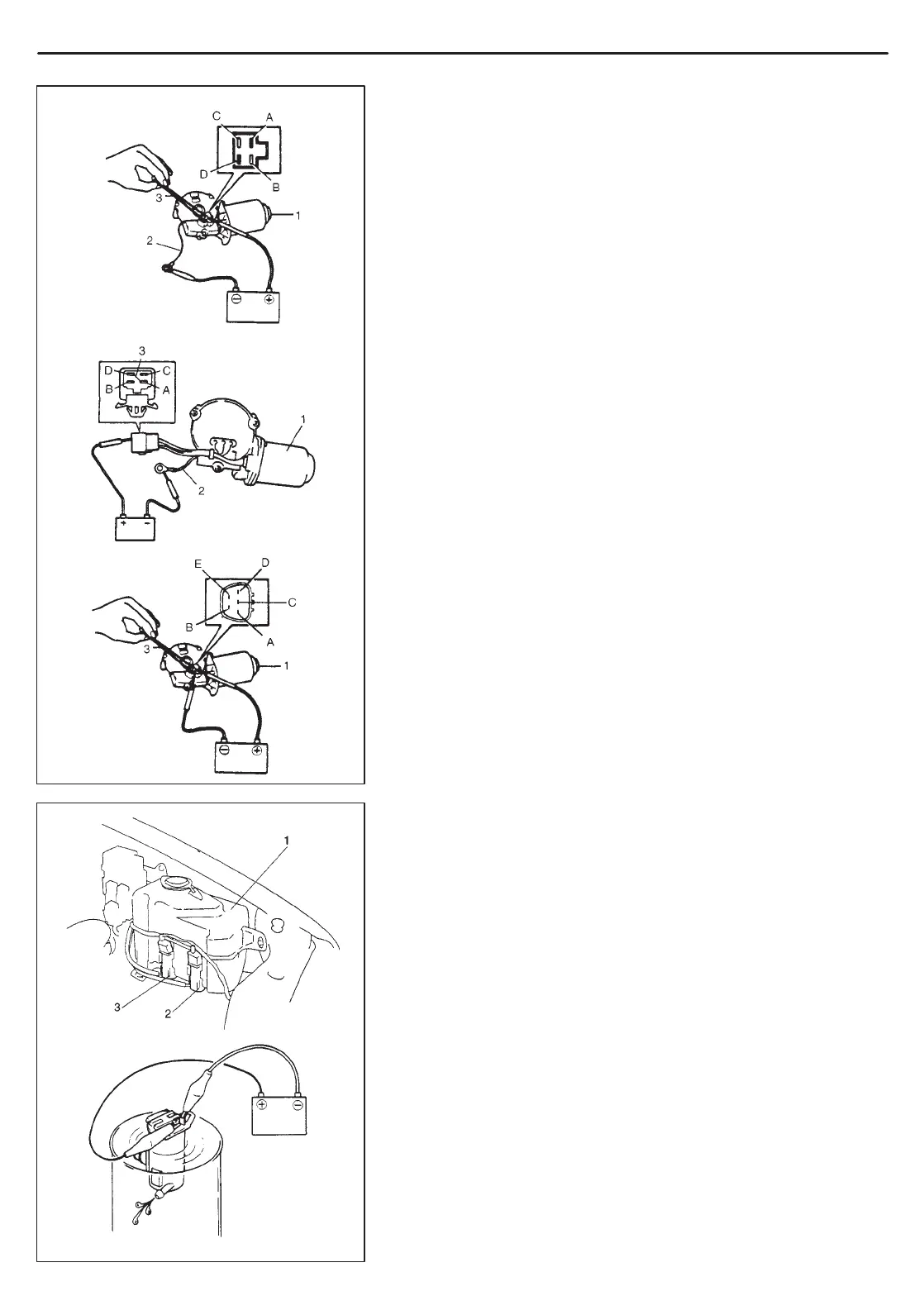

2) Testing automatic stop action.
a) Connect 12 V battery (+) terminal to terminal “A” of wiper mo-
tor (1) and (–) terminal to Black lead wire (2) (Type A, B) or
terminal “E” (Type C), and let the motor turn.
b) Disconnect terminal “A” from battery, and let the motor stop.
c) Connect terminal “A” and “D” with a jumper wire (3), and con-
nect terminal “C” to battery (+) terminal. Observe the motor
turns once again then stops at a given position.
d) Repeat a) thru c) several times and inspect if the motor stops
at the given position every time.
Washer Pump
Connect battery (+) and (–) terminals to pump (+) and (–) terminals
respectively to check pumping rate.
Check for both front (3) and rear (2) (if equipped) washer pump.
Pumping Rate:
Front and Rear (if equipped) more than 1.0 l/min.
(2.1 US pt./min.,
1.76 lmp pt./min.).
