YH4

GRAND

VITARA

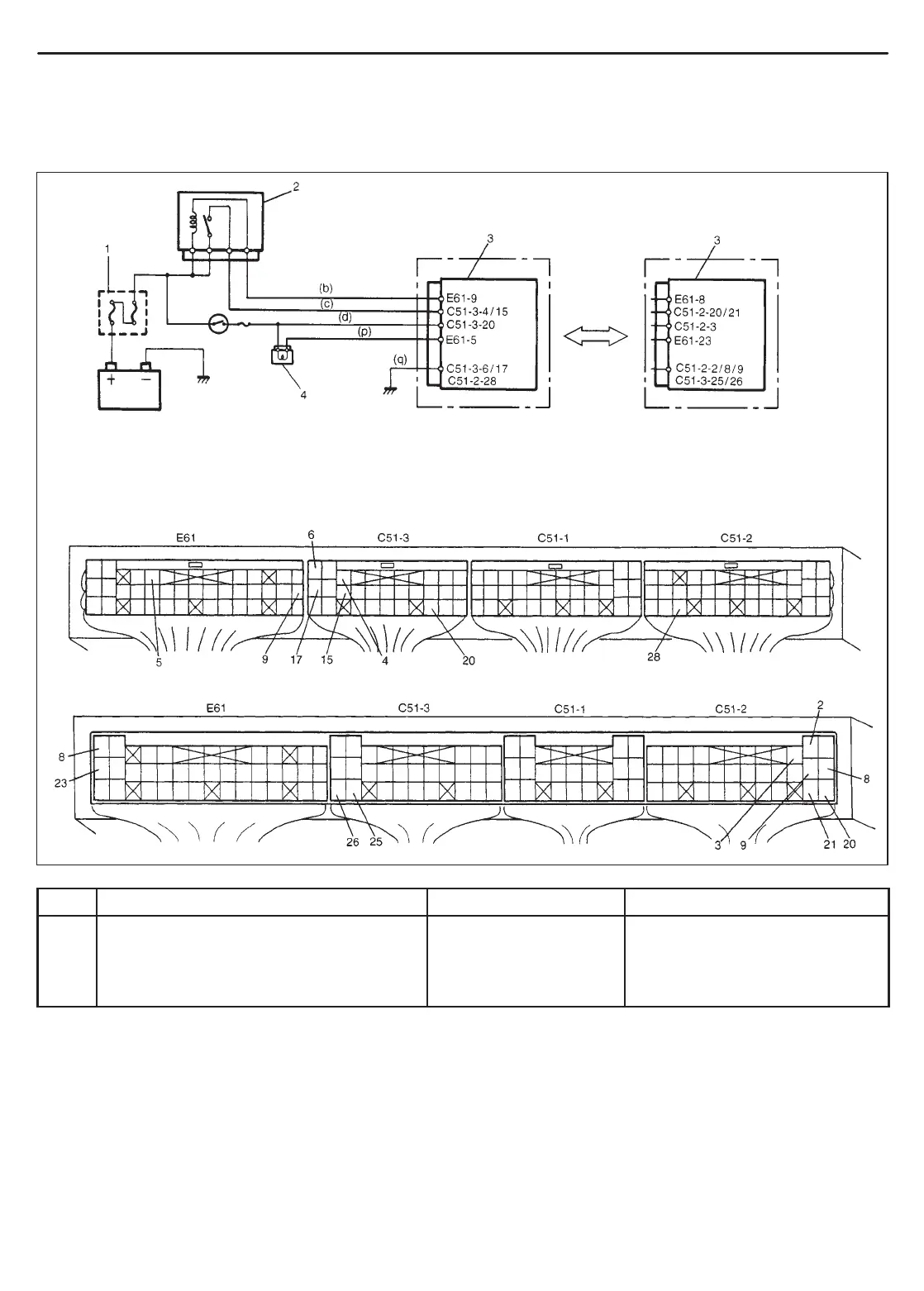

8G-16 IMMOBILIZER CONTROL SYSTEM (IF EQUIPPED)

1. Main fuse

2. Main relay

3. ECM/PCM

4. Immobilizer indicator lamp

(Vehicle not equipped with

monitor coupler)

For G16/J20 engine For H25 engine

G16/J20 Engine

H25 Engine

TABLE C IMMOBILIZER INDICATOR LAMP CHECK

(IMMOBILIZER INDICATOR LAMP REMAINS ON AFTER ENGINE

STARTS)

STEP ACTION YES NO

1 1) With ignition switch OFF, disconnect

couplers from ECM/PCM.

Does immobilizer indicator lamp turn ON

at ignition switch ON?

“(p)” wire shorted to

ground circuit.

Substitute a known-good ECM/

PCM and recheck.
