BODY SERVICE 9-65

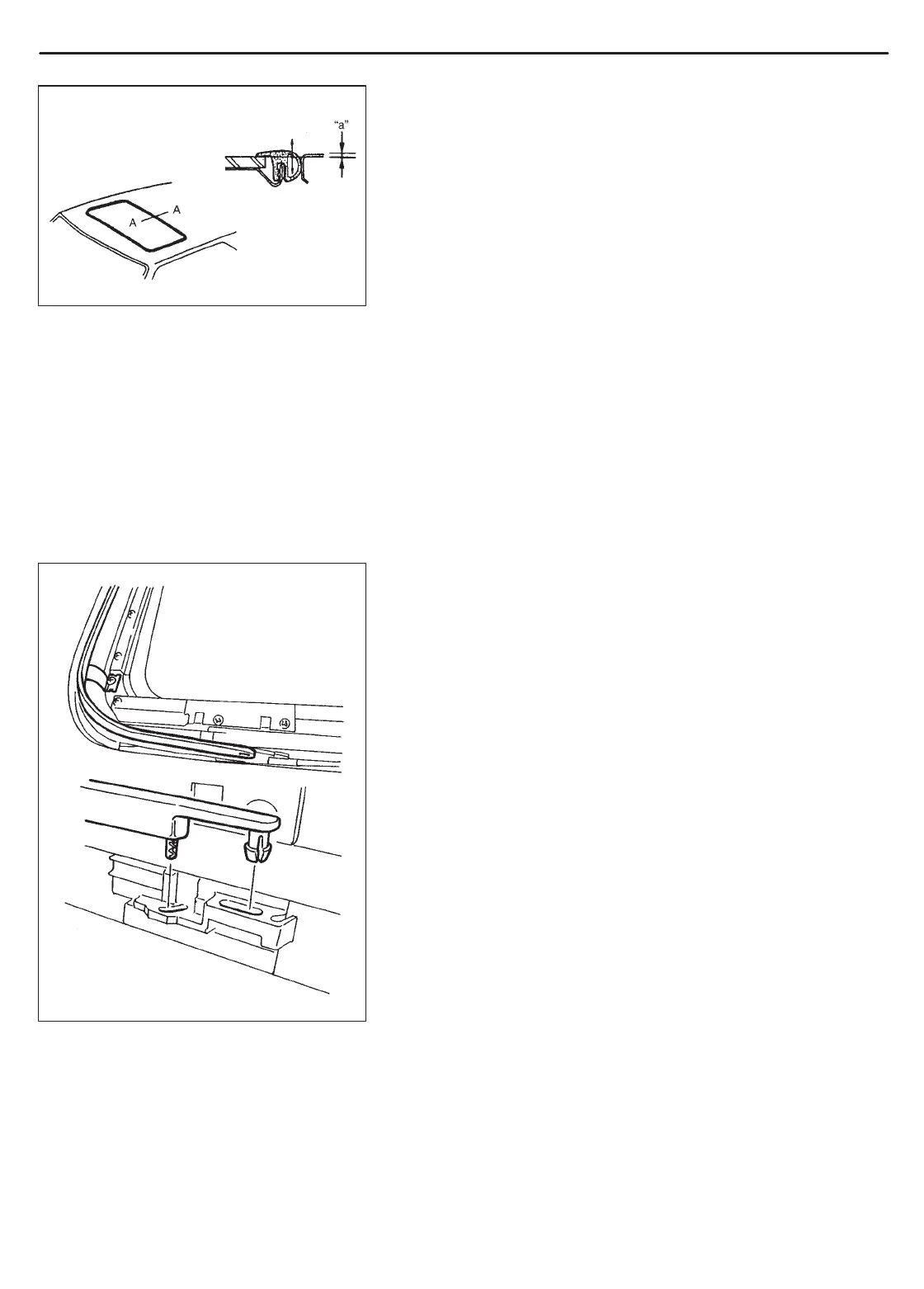

Section A – A
ADJUSTMENT
1) Loosen sunroof glass fixing screws (at 4 locations) and move
sunroof glass up and down 2 to 3 times. In this way, sunroof
glass can be positioned in both vertical and horizontal directions
by elasticity of sliding roof weather strip.
2) Position sunroof glass by such dimensions with respect to roof
panel surface as specified below.
Dimension: “a”: 0 mm (0.0 in.)
3) After installing all parts and adjusting properly, check sunroof for
proper operation (open, close and up).
SLIDING ROOF DEFLECTOR
REMOVAL
1) Open sliding roof.
2) Disconnect negative cable at battery.
3) Remove screws and disconnect deflector from deflector link.
INSTALLATION
Reverse removal procedure to install deflector.
