YH4

GRAND

VITARA

9-76 BODY SERVICE

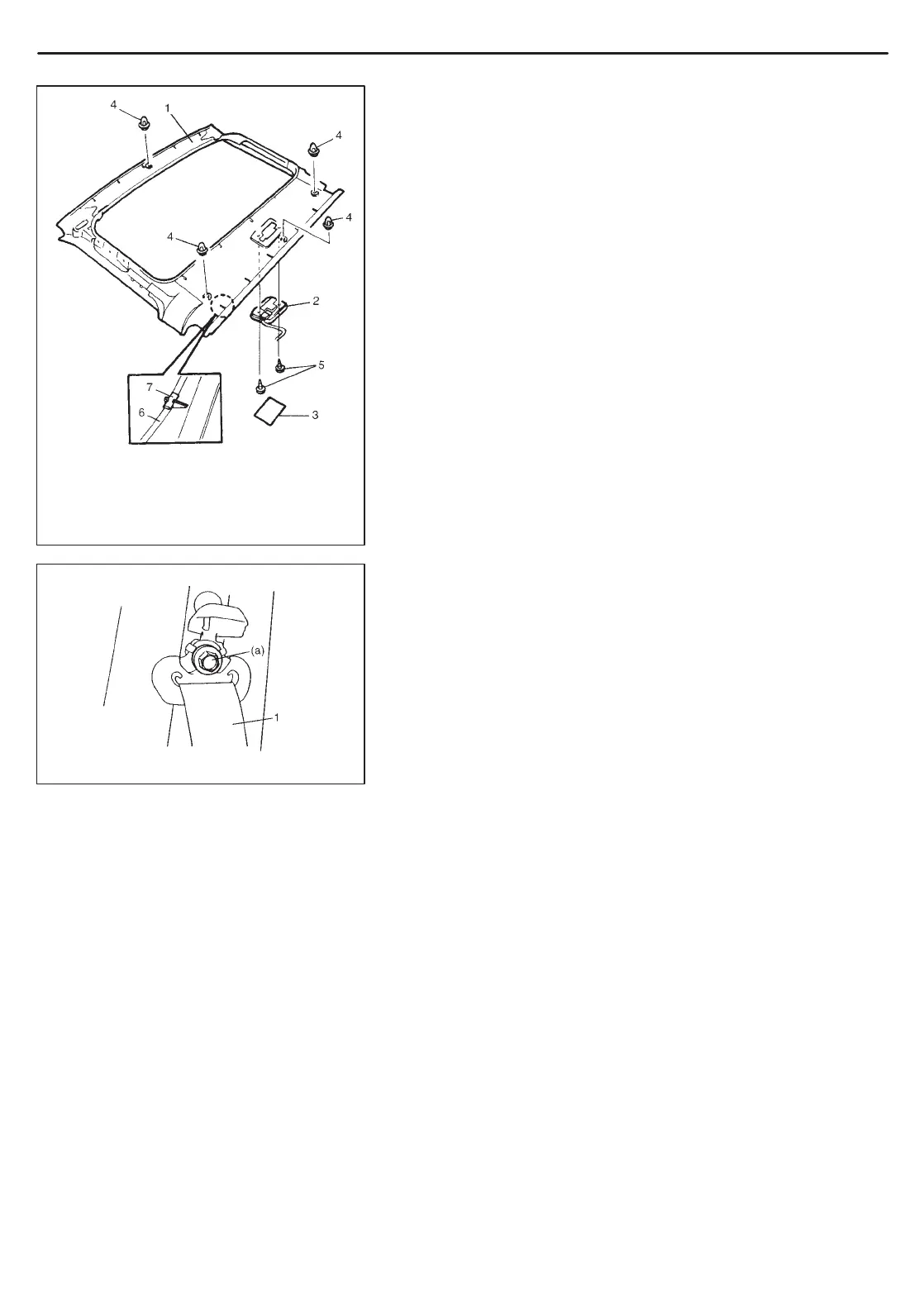

1. Roof trim

2. Room light

3. Room light lens

4. Clip

5. Screw

6. Room light harness

7. Marking tape

1. Seat belt

INSTALLATION

1) Set room light and clip to roof trim.

2) Set room light harness to roof trim with marking tape.

3) Reverse removal sequence to install roof trim.

Tightening Torque

(a): 35 N

m (3.5 kg-m, 25.3 lb-ft)
