10A-6 SEAT BELT
1. Upper anchor
2. Lower anchor
3. Retractor assembly
4. Buckle
: If equipped
*
*
REAR SEAT BELT
WARNING:
Be sure to read “Service Precautions” before starting to work and observe every precaution during
work.
REMOVAL

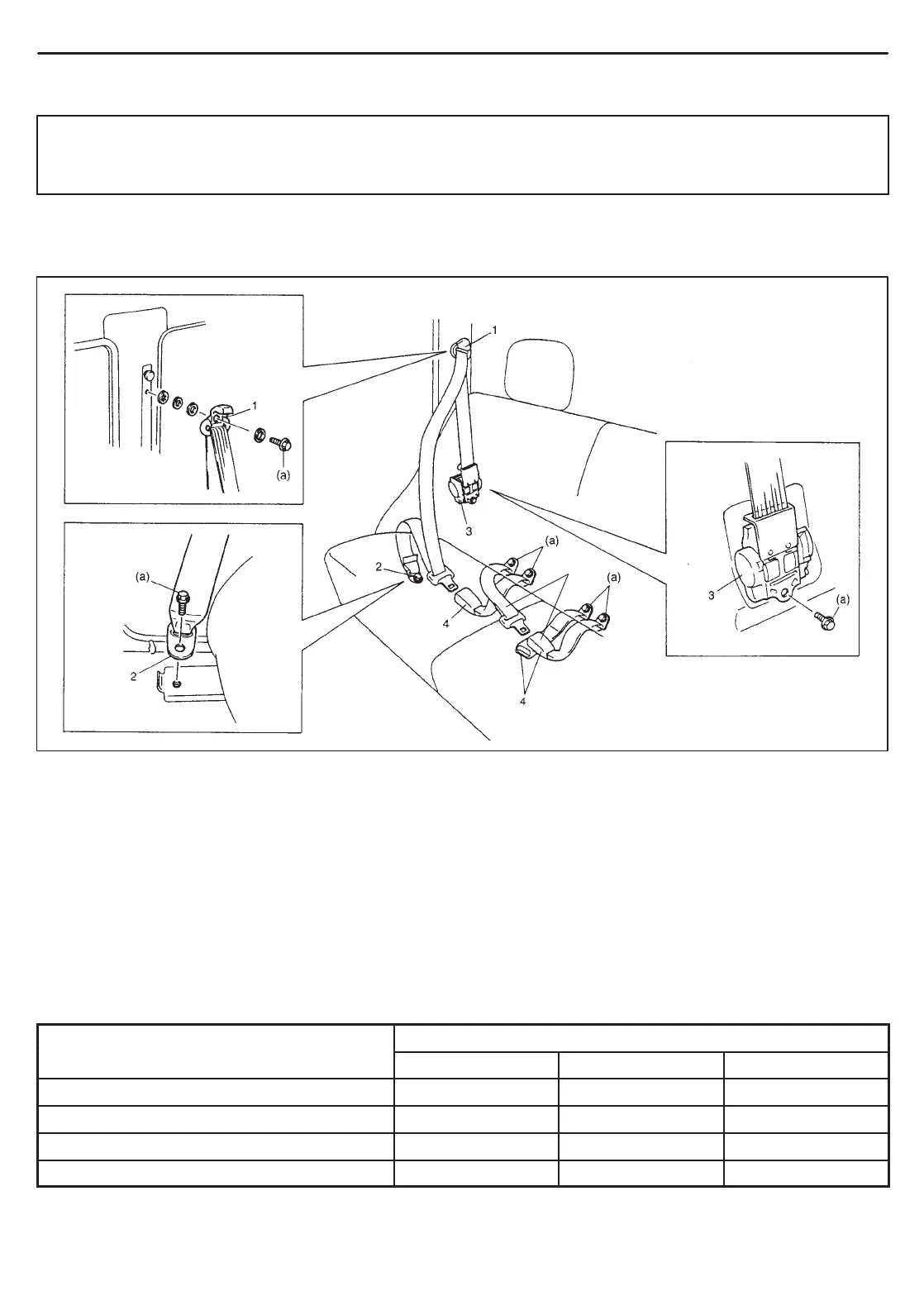

Refer to the figure below to remove rear seat belts.
INSPECTION
Check the rear seat belt in the same way as when inspecting front seat belt. (Refer to page 10A-4.)
INSTALLATION
Install the rear seat belt observing the same precautions as when installing front seat belt. (Refer to page 10A-5.)
Tightening Torque
(a): 35 N
.
m (3.5 kg-m, 25.5 lb-ft)
TIGHTENING TORQUE SPECIFICATIONS
p
Tightening torque
N
.
m kg-m lb-ft
Upper and lower anchor bolt 35 3.5 25.5
Retractor assembly bolt 35 3.5 25.5
Retractor assembly screw 5.5 0.55 4.0
Buckle bolt 35 3.5 25.5
