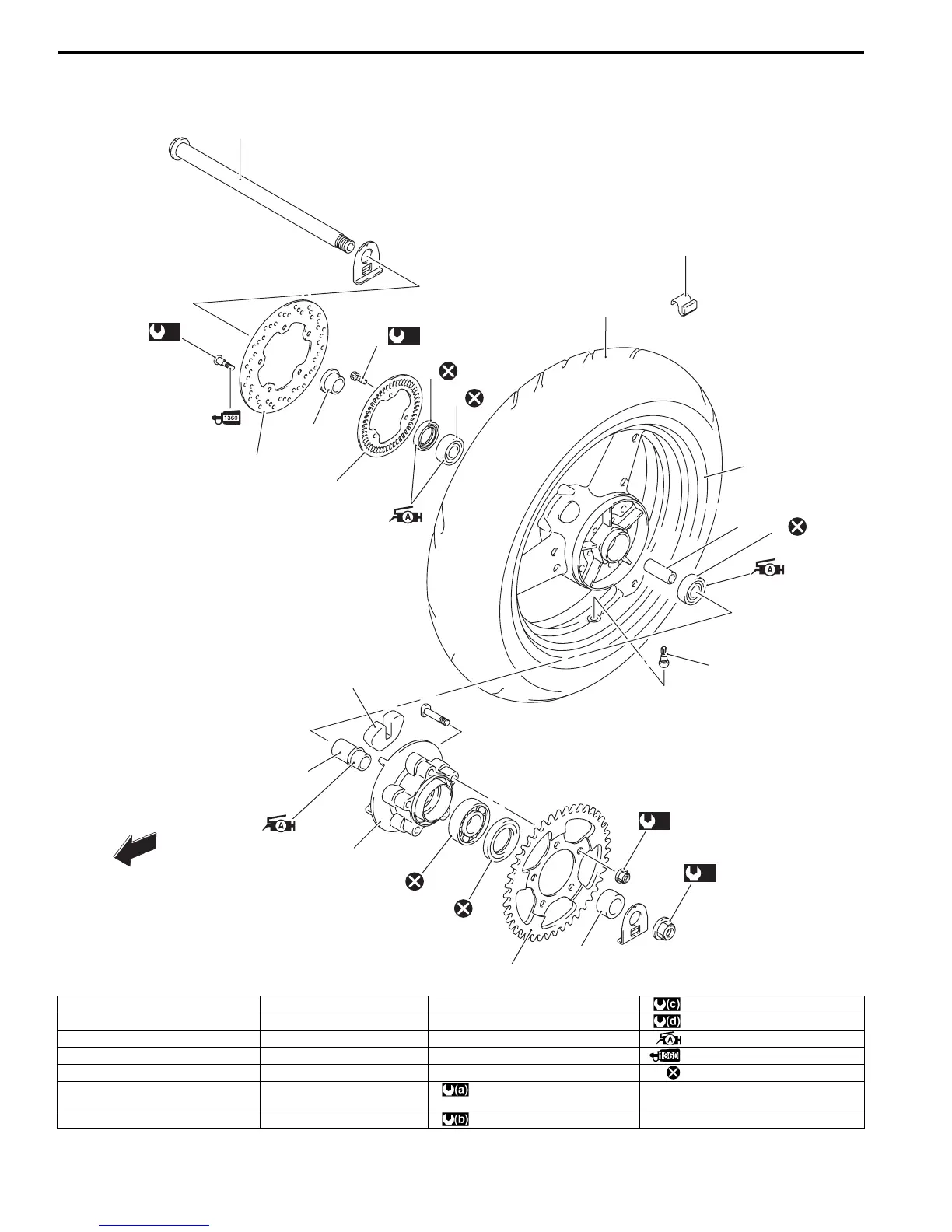

2D-4 Wheels and Tires:
Rear Wheel Components (GSX650FAK9)
B917H22406024
19
1
(c)
6
7
5
18
3
2
17
8
9
16
10
11
12
FWD
(a)
(b)
15
14
13
6
(d)
4
I917H2240013-01
1. Rear axle 8. Spacer 15. Spacer : 23 N⋅m (2.3 kgf-m, 16.5 lbf-ft)
2. Brake disc 9. Bearing 16. Air valve : 6.5 N⋅m (0.65 kgf-m, 4.7 lbf-ft)
3. Collar 10. Wheel damper 17. Rear wheel : Apply grease.
4. Wheel speed sensor rotor bolt 11. Retainer 18. Tire : Apply thread lock to thread part.
5. Wheel speed sensor rotor 12. Sprocket mounting drum 19. Wheel balancer : Do not reuse.
6. Dust seal 13. Bearing : 100 N⋅m (10.0 kgf-m, 72.5 lbf-
ft)
7. Bearing 14. Sprocket : 60 N⋅m (6.0 kgf-m, 43.5 lbf-ft)
