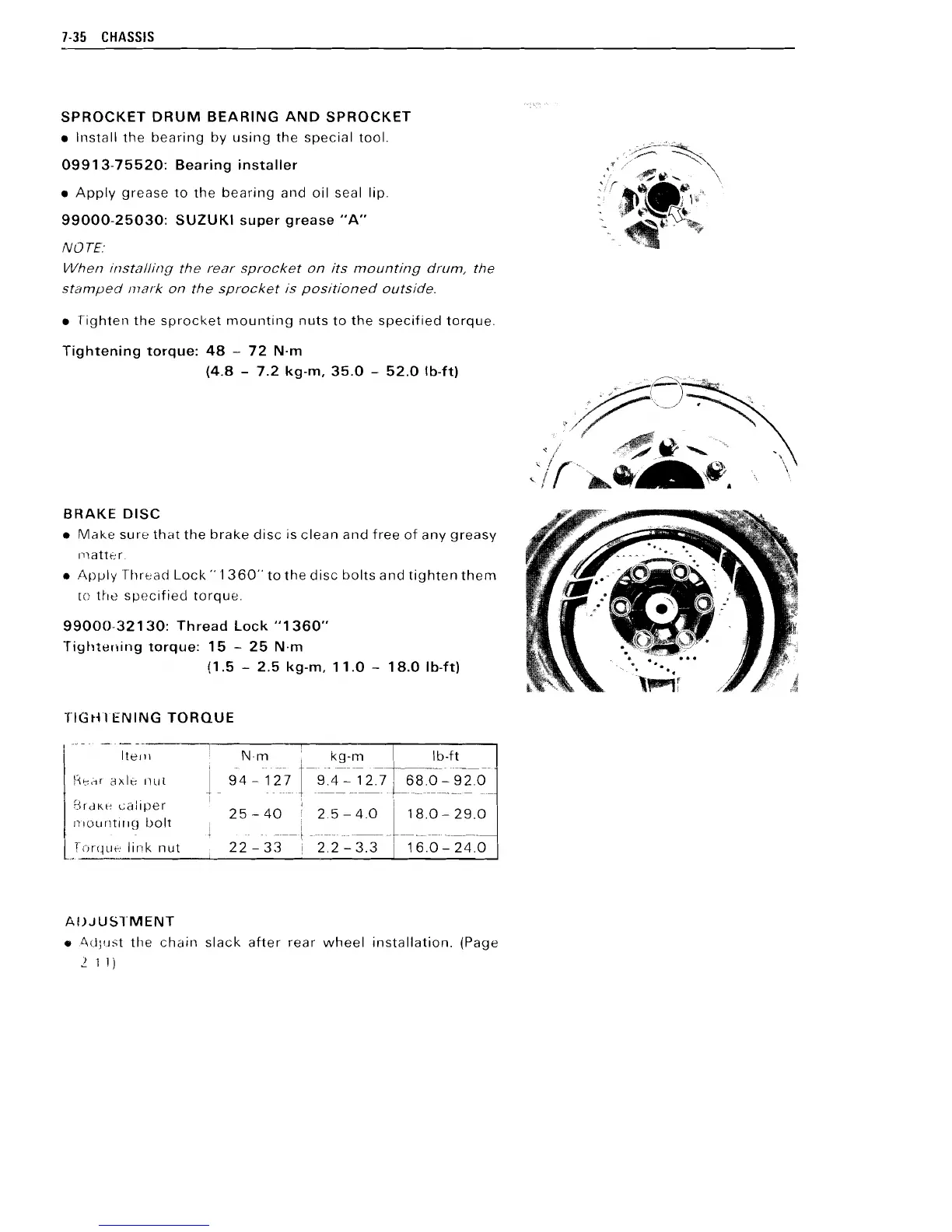

7-35 CHASSIS
SPROCKET DRUM BEARING AND SPROCKET
• Install the bearing by using the special tool.
09913-75520: Bearing installer
• Apply grease to the bearing and oil seal lip.
99000-25030: SUZUKI super grease "A"
NOTE:
vVhen installing the rear sprocket on its mounting drum, the
stamped mark on the sprocket is positioned outside.
• Tighten the sprocket mounting nuts to the specified torque.
Tightening torque: 48 - 72 N'm
(4.8 - 7.2 kg-m, 35.0 - 52.0 Ib-ft)
BRAKE DISC
• Make sure that the brake disc is clean and free of any greasy
nlattf,r
• Apply Thread Lock "1360" to the disc bolts and tighten them
[() the specified torque.
99000-32130: Thread Lock "1360"
Tightening torque: 15 - 25 N·m
(1,5 - 2.5 kg-m. 11.0 - 18.0 Ib-ft)
\,
\
TIGHTENING TORQUE
... - _. - -------,.------r-----....,--------.,
It8111
N·m
"kg-m Ib-ft
-. --_.- --_.~---_ ... _----
1.94-127
~.:...~- __ ~~.~?L6~.-~= _9 ~. 0_
"I
BrdKf: ~;aliper
I
25 - 40
mourltlflg bolt
2.5 - 4.0 L~~'~~~:~O
forqLIt" link nut
22 - 33 ! 2.2 - 3.3 I 16.0 - 24.0
ADJUSTMENT
• f\(JJust the chain slack after rear wheel installation. (Page
.2 1 1)

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
