Suzuki WagonR - Fuel Gauge and Information Display

2-39
BEFORE DRIVING
67L-74E
67LH3-74E

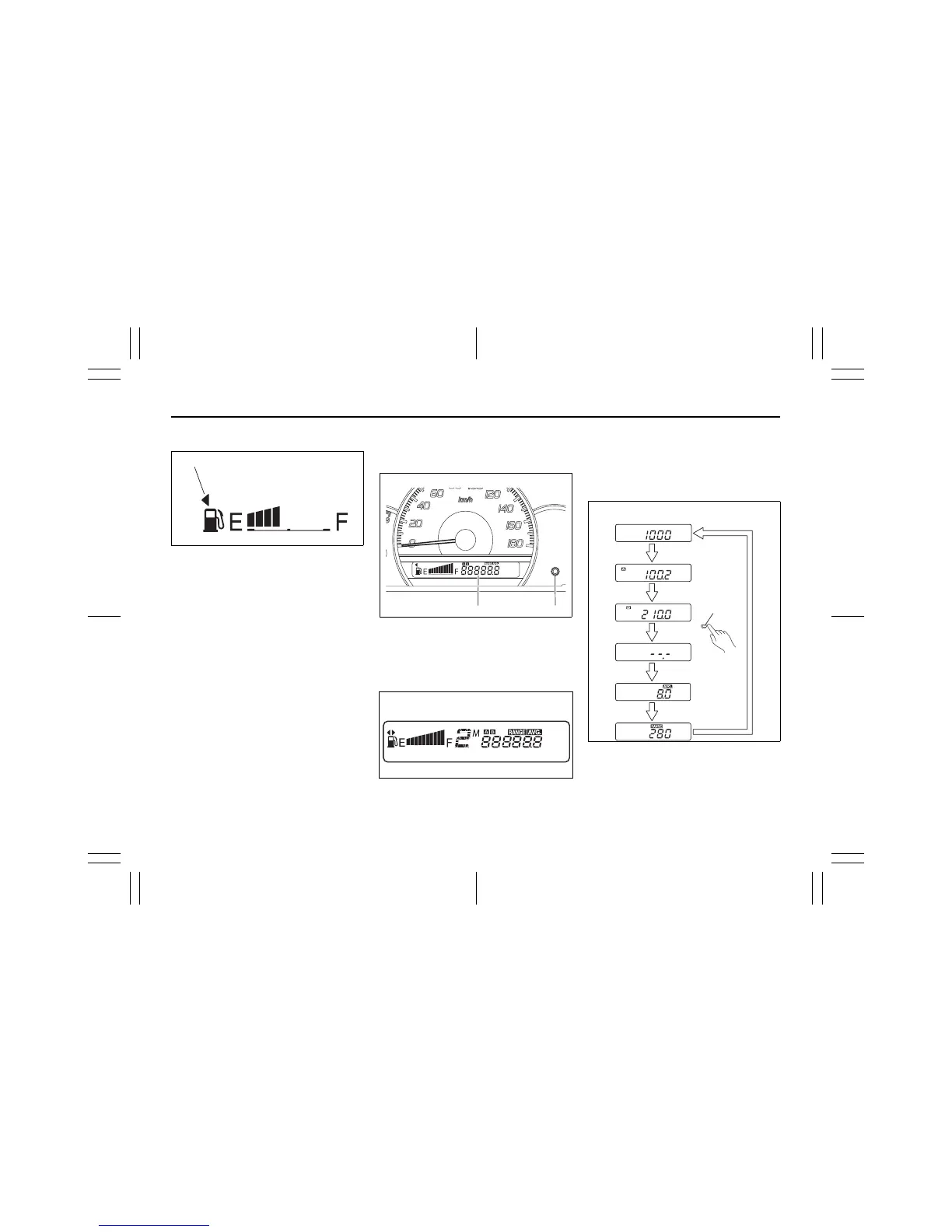

Fuel Gauge
67LH034
When the ignition switch is in the “ON”
position, this gauge gives an approximate
indication of the amount of fuel in the fuel
tank. “F” stands for full and “E” stands for
empty.
The mark (1) indicates that the fuel filler
door is located on the left side of the vehi-
cle.
When the fuel meter indicator shows only
one segment to “E”, refill the tank as soon
as possible.
NOTE:
If the last segment blinks, it means that the
fuel is almost empty.
NOTE:
The fuel meter indicator varies depending
on road conditions (for example, slope or
curve) and driving conditions because of
fuel moving in the tank.
Information Display
Type-1
67LH30206
(1) Instantaneous fuel consumption/Aver-
age fuel consumption/ Driving range
(2) Indication selector knob
Type-2
67LM2011
Fuel Consumption and Driving
Range
This display can be changed to show
instantaneous fuel consumption, average
fuel consumption, or driving range. Also,
the display shows odometer and trip meter.
67LH30207
Every time you push the indication selector
knob (2), the display will be changed
among the following six displays.
(a) Odometer
(b) Trip meter A
