OTHER CONTROLS AND EQUIPMENT
67L-74E
67LH3-74E

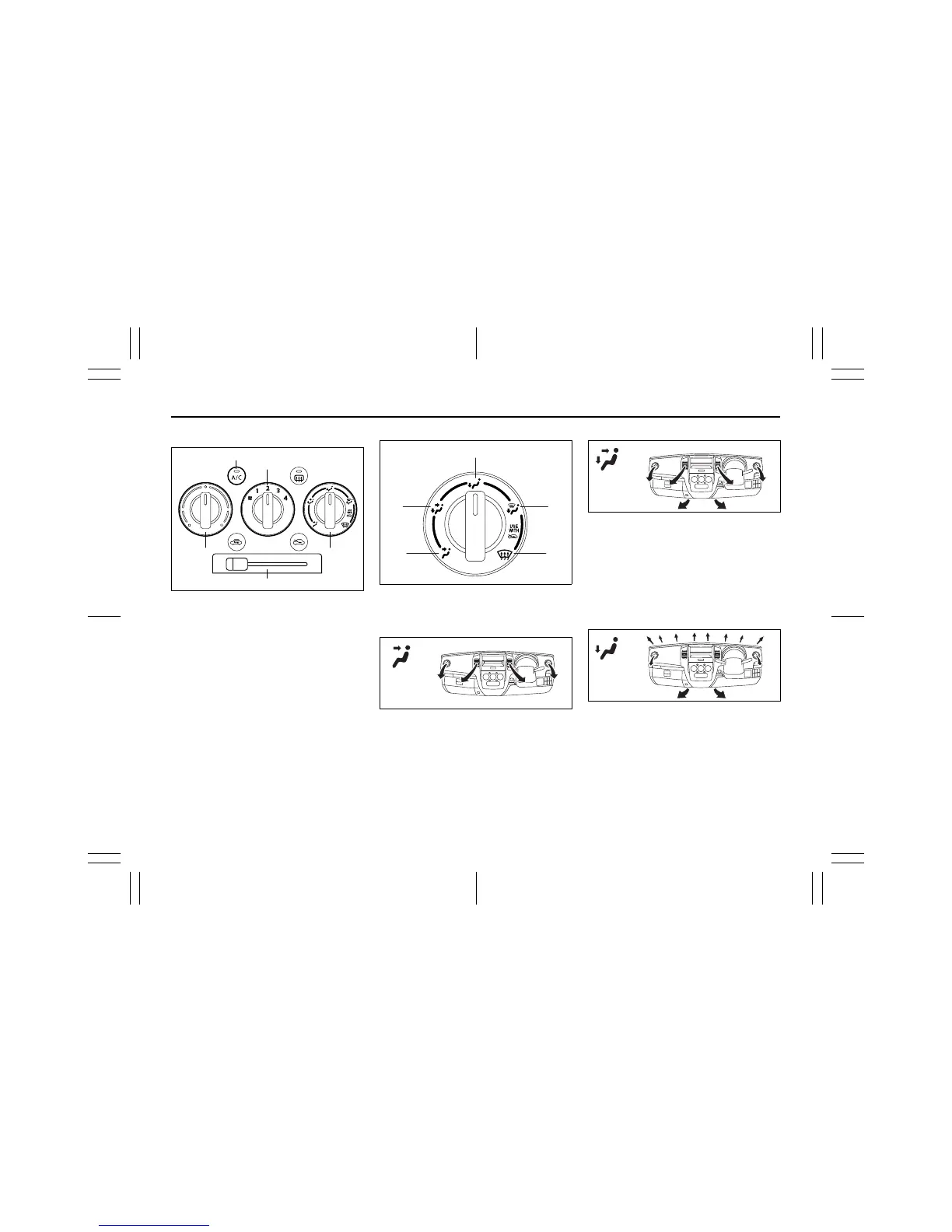

Description of Controls
68KH043
Temperature selector (1)
This is used to select the temperature by
turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed by turning the selec-
tor.
Air flow selector (3)
68KH044
This is used to select one of the functions
described below.
Ventilation (a)
67LH30502
Temperature-controlled air comes out of
the center and side air outlets.
Bi-level (b)
67LH30503
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position, how-
ever, the air from the floor outlets and the
air from the center and side outlets will be
the same temperature.
Foot (c)
67LH30504
Temperature-controlled air comes out of
the floor outlets and the side outlets, also
comes out of the windshield defroster out-
lets and also comes slightly out of the side
defroster outlets.
