INSTALLATION
WALL DRILLING AND BRACKET FIXING
2 3 4
6 7 8
9 10 11
EN-5
Vertical reference line

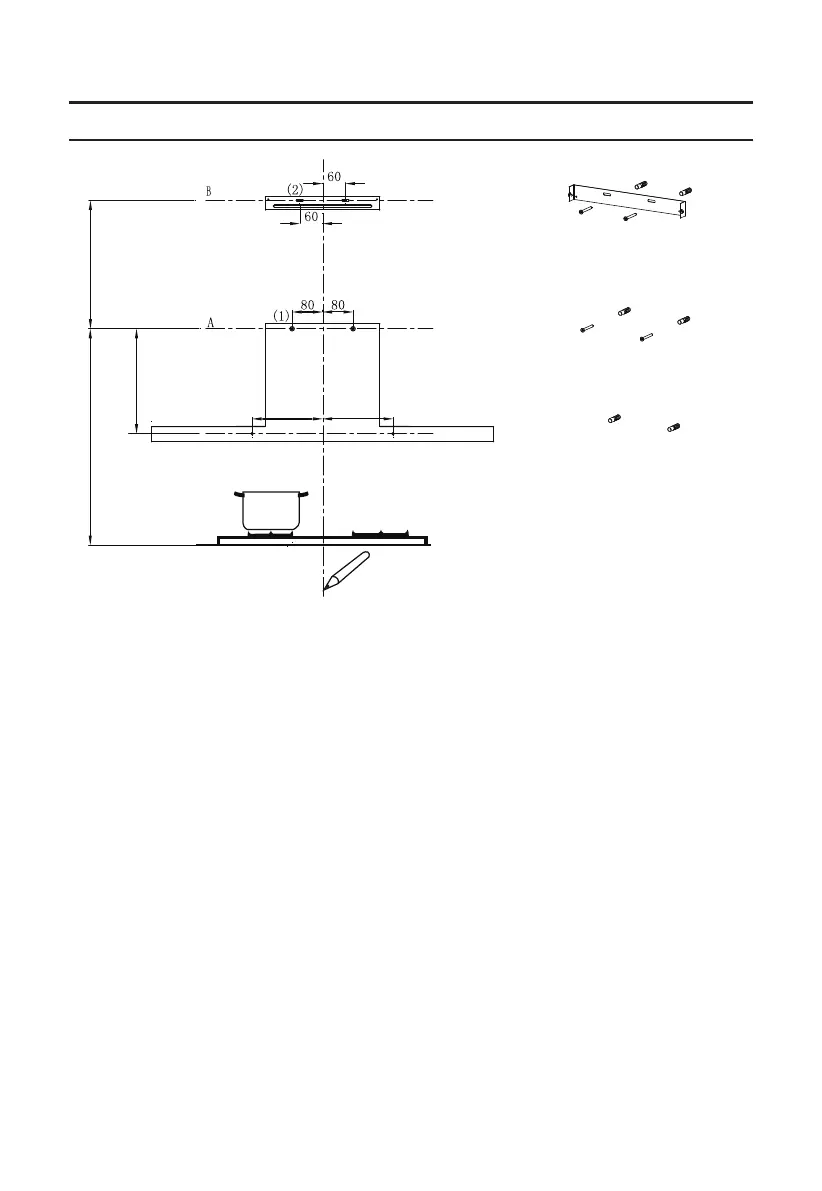

As a first step, proceed with the following drawings:
A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood
is to be fitted.
A horizontal line A at 790– 890 mm above the cooker top.
A horizontal line B at a X mm above the horizontal line A.
A horizontal line C at a 115mm below the horizontal line A .
Mark Points:
Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
Repeat this operation on the other side , checking that the two marks are leveled.
Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
Repeat this operation on the other side, checking that the two marks are on the same
horizontal line.
Mark a point (3) on the horizontal line C, 150 mm to the vertical reference line . Repeat
this operation on the other side , checking that the two marks are leveled.









150
150
C
(3)
115
790-890
Fix the brackets :

Drill holes at the marked points with a ɸ10 mm drill bit.

Insert the Wall Plugs 11 into the holes.

Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

Screw 2 screws 10 (5 x 50) to Wall Plugs 11 at the horizontal line A; approximately the four fifth
length of the screws 10 (5 x 50) was screwed into the Wall Plugs 11, used for hook the hood.
305-600
