E1
Open circuit failure of
thermocouple
Please contact after sales service.
Error Code for Induction hob
Problem
Possible causes
What to do
E1
Signal lost (PCB failure)
Please contact after sales service.
E2/E3
Abnormal high/Low input
voltage
Stop cooking and wait until input voltage back to
normal. If not please contact service center.
E4/E5/E6
Thermistor failure.
Please contact service center to repair.
E7
Abnormal high
temperature (dry
burning)
Cut off power, wait for 30min and switch on.
If still not working, please contact service.
E8/E9
Failure of IGBT sensor
Please contact service center to repair.
E0
IGBT Overheat
Check if the fan is still working. If not please
contact service center to repair.
EE
Display PCB failaure.
Please contact service center.
The above are the judgment and inspection of common failures.
ATTENTION! To avoid danger, please do not disassemble the unit by yourself!
9. Installation
9.1 Selection of installation equipment

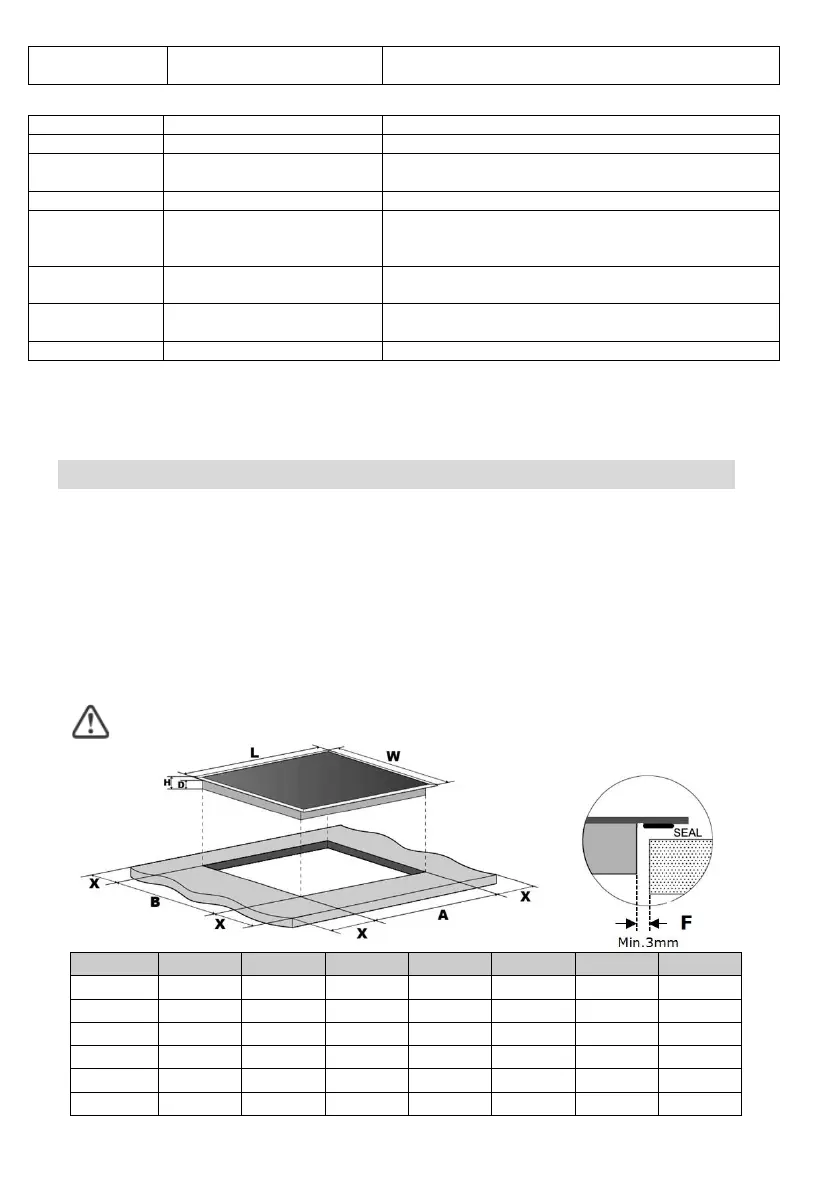

Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5cm space shall be preserved
around the hole. Be sure the thickness of the work surface is at least 30mm. Please
select heat-resistant and insulated work surface material (Wood and similar fibrous or
hygroscopic material shall not be used as work surface material unless impregnated) to
avoid the electrical shock and larger deformation caused by the heat radiation from the
hotplate. As shown below:
Note: The safety distance between the sides of the hob and the inner surfaces of
the worktop should be at least 3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
SVV6374
590
520
50
46
560
490
50 min.
SVI201
290
520
50
46
270
490
50 min.
SVI6393B
590
520
62
46
560
490
50 min.
SVI6391B
590
520
62
46
560
490
50 min.
SVI632B2
590
520
62
46
560
490
50 min.
SVI623FZ
590
520
62
58
560
490
50 min.
