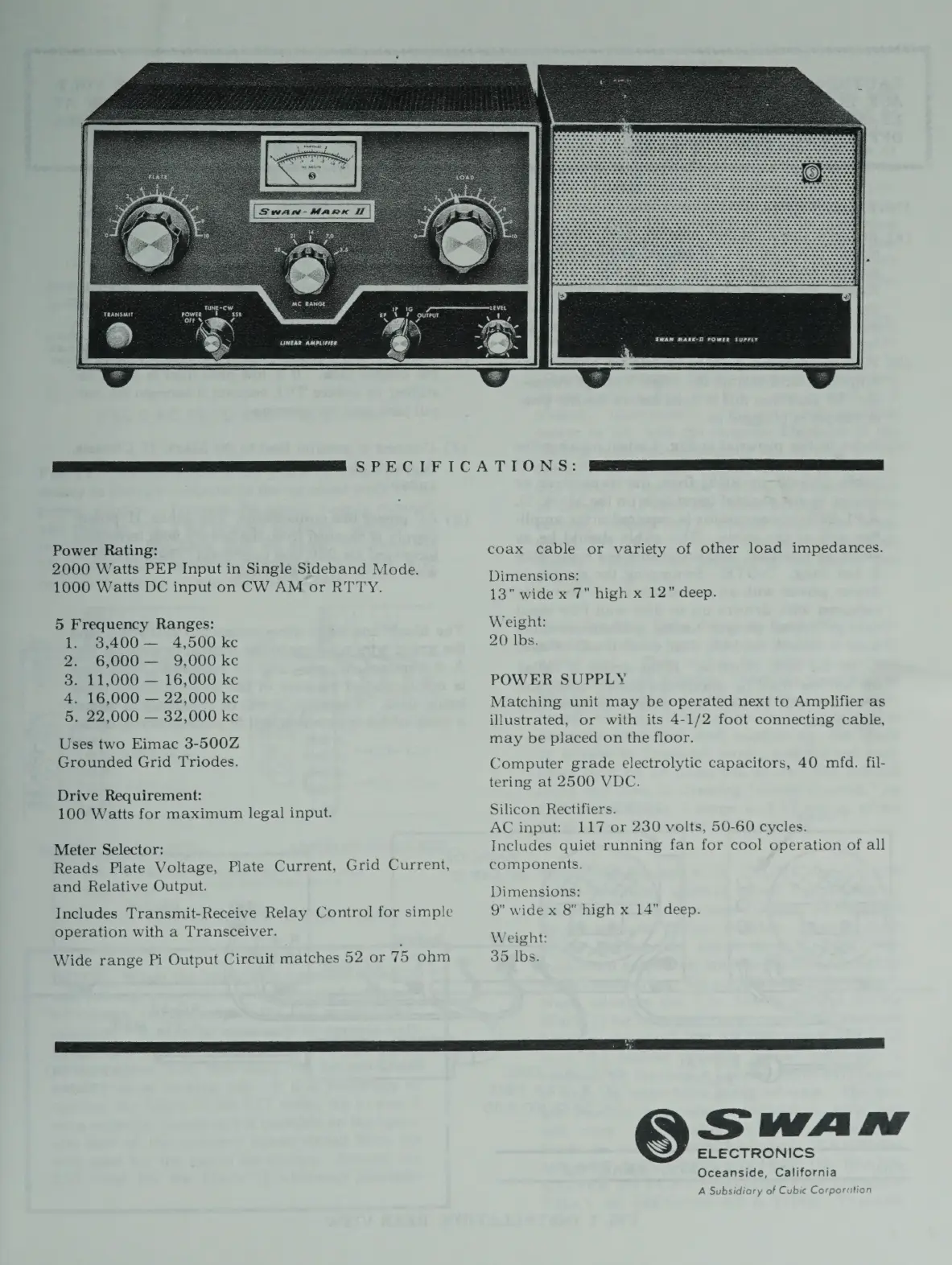

'| Swan-Marn i}
LINEAR AMPLIFIER
Power Rating:
2000 Watts PEP Input in Single Sideband Mode.
1000 Watts DC input on CW AM or RT TY.
5 Frequency Ranges:
3,400 — 4,500 ke
6,000 — 9,000 ke
11,000 — 16,000 kc
16,000 — 22,000 ke
. 22,000 — 32,000 kc
Uses two Eimac 3-500Z
Grounded Grid Triodes.
CWP
Drive Requirement:
100 Watts for maximum legal input.
Meter Selector:
Reads
Plate
Voltage,
Plate
Current,
Grid
Current,
and Relative Output.
Includes Transmit-Receive Relay Control for simple
operation with a Transceiver.
Wide
range
Pi
Output
Circuit
matches
52
or
75
ohm
S.PEsGYF ICA TLONS:
SWAN MARK-T POWER SUPPLY
coax cable or variety of other load impedances.
Dimensions:
13" wide x 7" high x 12" deep.
Weight:
20 lbs.
POWER SUPPLY
Matching unit may be operated next to Amplifier as
illustrated, or with its 4-1/2 foot connecting cable,
may be placed on the floor.
Computer grade electrolytic capacitors, 40 mfd. fil-
tering at 2500 VDC.
Silicon Rectifiers.
AC input: 117 or 230 volts, 50-60 cycles.
Includes quiet running fan for cool operation of all
components.
Dimensions:
9" wide x 8" high x 14" deep.
Weight:
35 lbs.
S
Wi
4A
ELECTRONICS
Oceanside, California
A Subsidiary of Cubic Corporction
