4. Installation
LED 1 - GREEN: ON
LED 2 - GREEN: BACnet comm.
LED 3 - Device state
LED 4 - GREEN: Modbus comm.
LED 5 - GREEN: Not used
LED 6 - GREEN: Not used
Connector 3: Ethernet 1 Port (RJ45 Plug)
Connector 4: Ethernet 2 Port (RJ45 Plug)
Power supply:
0V = Ground
+V = Positive wire
VAC : min 8V ; max 24V
VDC : min 12V ; max 25V
The default configuration is indicated in the following
table:
BACnet gateway:
o IP ADDRESS gateway: 192.168.1.9
o SUBNET MASK: 255.255.255.0
o GATEWAY: 0.0.0.0
o PORT: 47808
o BACnet device name: Lemmens
o Device Identifier: 1
- Unit n°1: IP ADDRESS: 192.168.1.1
- Unit n°2: IP ADDRESS: 192.168.1.2
- Unit n°3: IP ADDRESS: 192.168.1.3
- Unit n°4: IP ADDRESS: 192.168.1.4

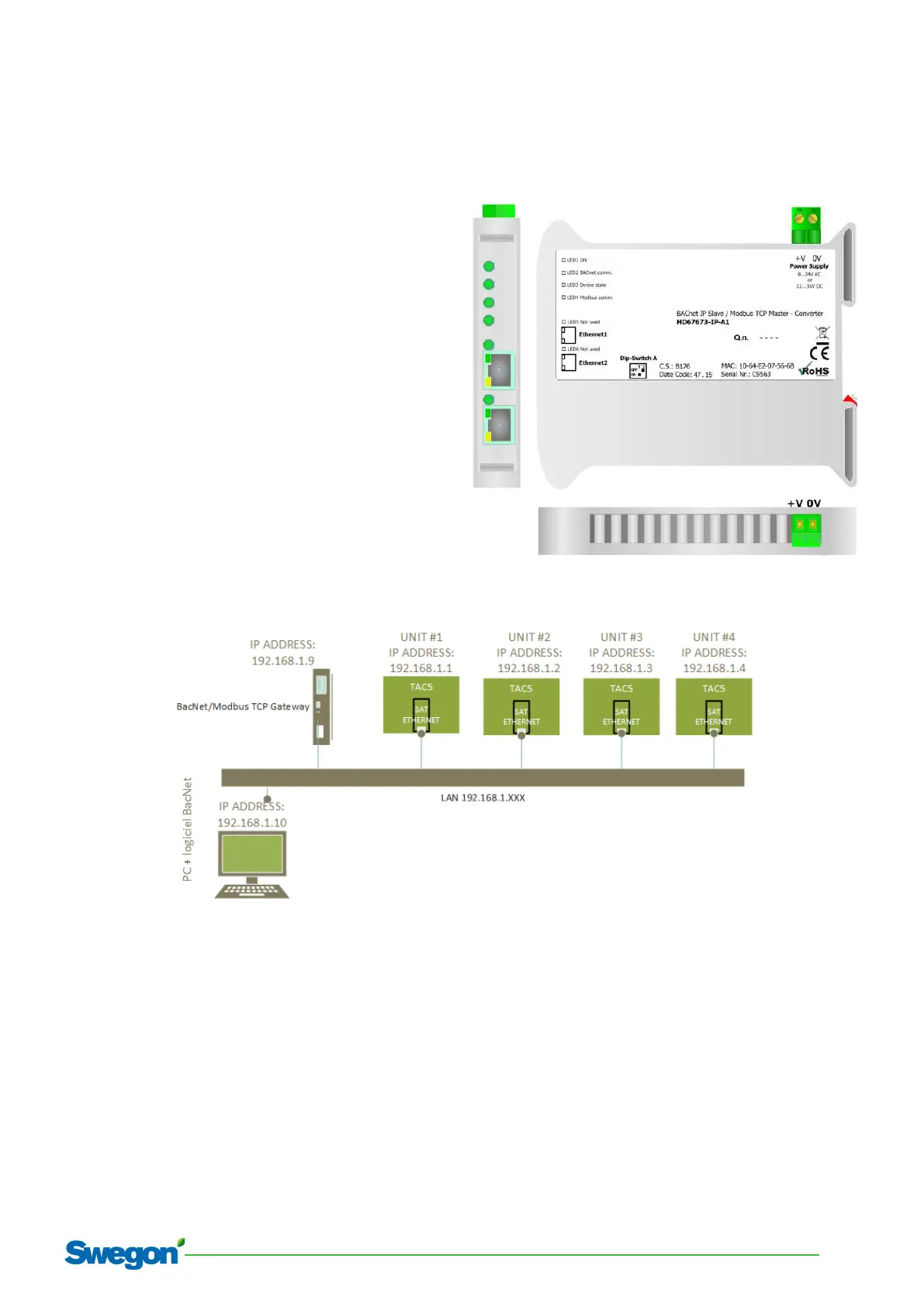

4.1 Topology
5. Configuration
5.1 Default configuration
