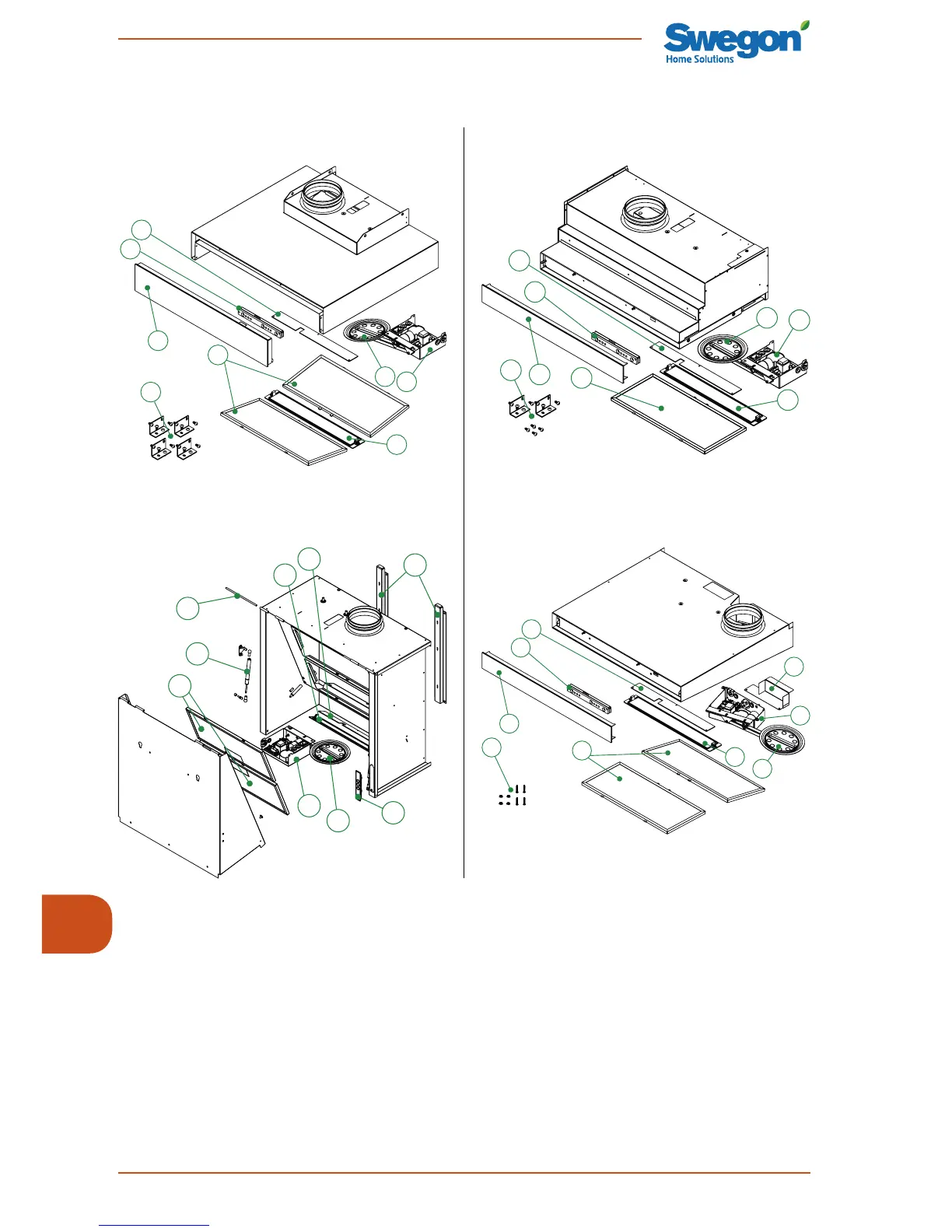

7. List of components, accessories and spare parts
1. LED panel
2. Touch-screen electronic system
3. Front panel
4. Grease filter
5. Protective glass for LED lighting
6. Damper with actuating arm
7. Equipment cubicle
8. Assembly parts
9. Hinge pin (Tango)
10. Control panel (Tango)
11. Gas spring (Tango)
12. Protective plate (Jazz)
Accessories
• Duct clover, stainless steel (Blues): BPJ8
• Duct clover, white (Blues): BPJ8V
• Control cable: ITK03
• Modularkabel 20 m: PMK20
• Jazz mounting kit: 613515
Spare parts
• Grease filter (1 filter): 610002
• Protection for LED lighting: 613500
1
2
3
4
5
6
7
8
Blues Salsa
8
1
2
3
4
5
6
7
Tango Jazz
1
2
3
4
5
6
7
8
12
1
5
11
4
10
7
6
8
9
