※ Variation of needle postion from level status of machine may causing the Cutting thread,
So, check throughly and handle it.
Contraction and expension of Dust Pad may change the levelness,so check it throughly.

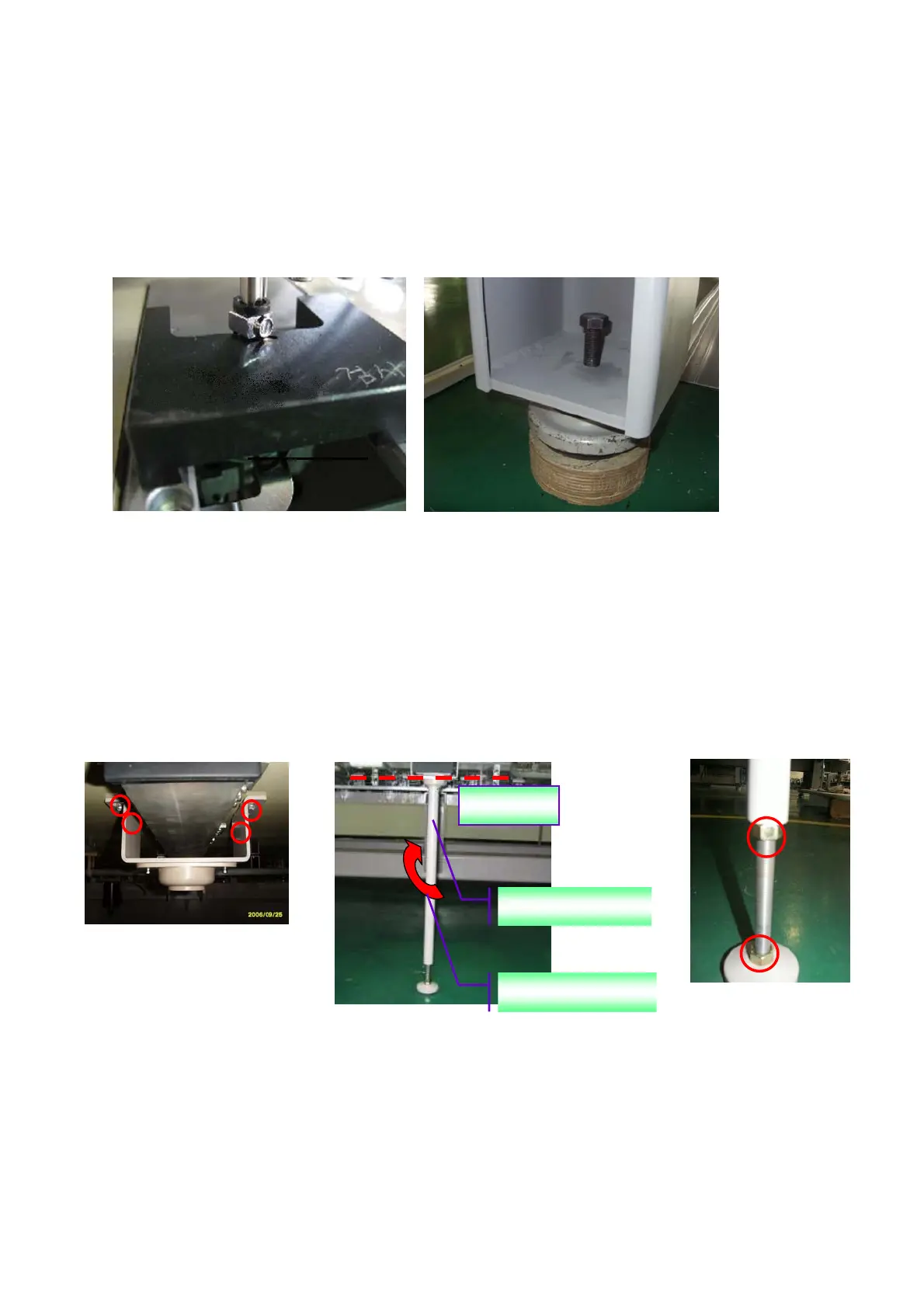

(3) How to fix Hex.Bolt
When fixing Hex.Bolt,open Needle Plate from the Head, fix Main Shaft at 201 degree.And then,
put down Needle Bar for inserting Needle Point Jig,check the gap how much jig is inserted to bottom of Needle
Fixed Holder for deciding the amount of Hex.Bolt.
(4) Check Body Support Bolt from Beam Support and fix it. With iron and rubber plate,
adjust the height of Leveling Base.
(5) How to install Table Support
1.Connect Table Supporter Bracket to the Table.
2.Insert Table Surpporter to Table Surpporter Bracket
4.Connect Table Supporter Nut. (23mm,nut, 2 each)
3.When instal the Table Supporter, be cautious of declension and when it's upper part contact to set up
potion, turn it less than 270˚ and fix it.
Turn it less than 270˚
Table Supporter
Surface
Page 12 Of 17 (주)SUNSTAR SWF CS Center
To Next Page
