① Set through the Signal Cable and E-switch Cable of OP BOX to OP BOX Stand,and assemble OP BOX Stamd.
② Wire the OP BOX Cable and Emergency swich Cable.
③ Attach the Table Cover.(with "+"driver)
④ Fix OP BOX Stand.(with 4mm T-wrench)

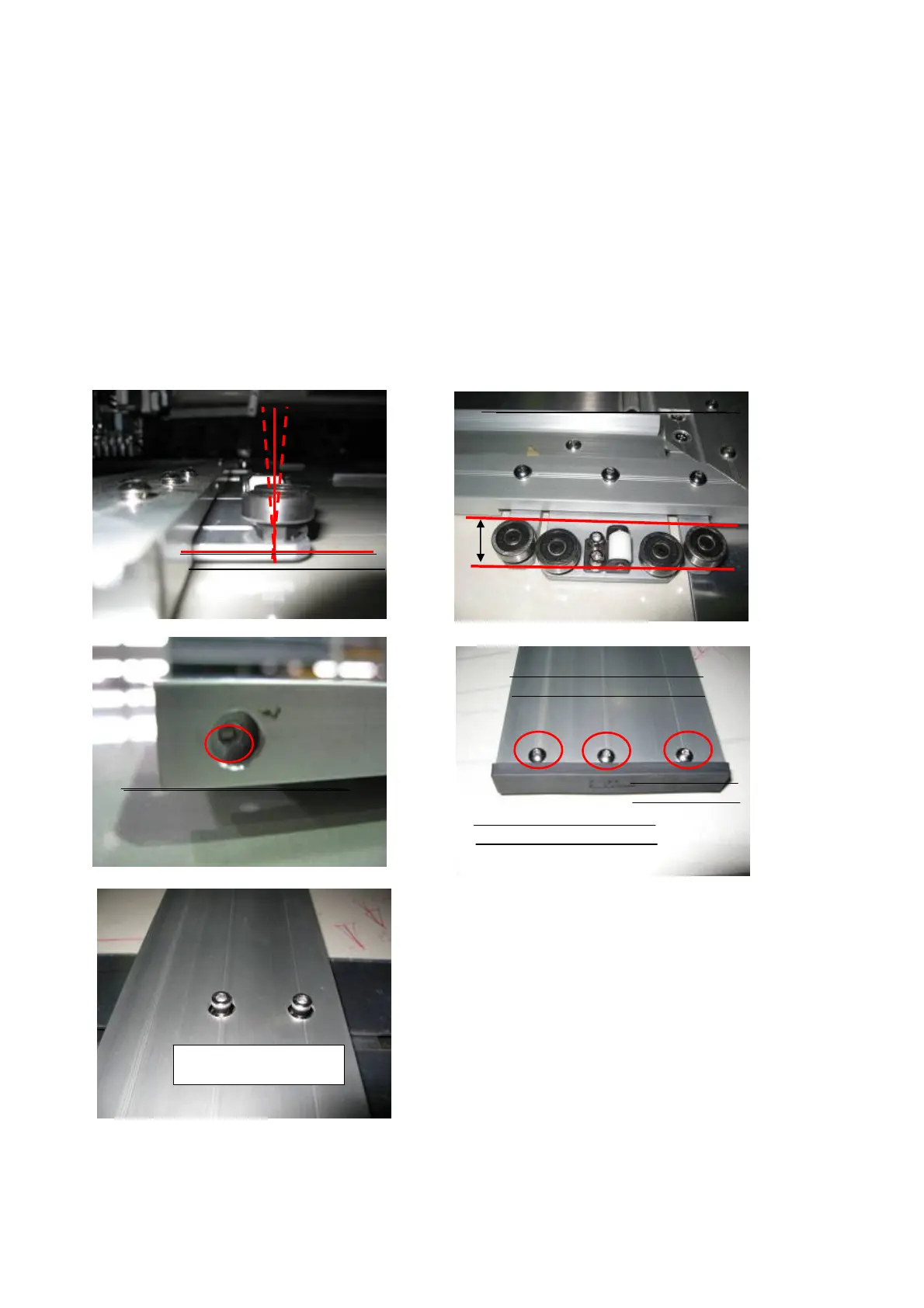

(4) How to assemble the Frame
#Not for less than Y-Storke 1200mm model.
※ Move Frame toward Y direction for checking the interrupting of Frame and Frame Bearing from F/R
※ Check and adjust height of Frame Bearing and levelness.
(If levelness of Bearing is not good, when you moving it toward F/R, it can be broken by interrupting
E Frame to Frmae Bearing )
※ If you insert E Frame by force, it can be broken by resistance from Frmae Bearing.
When connecting Frame E Fixing Bolt , pre-connect first, move Frame Up and Down and then connect it.
After connecting Frame, connect X-Shaft Couling.(2 each) with 5mm,3mm T-wrench.
※ If Frame E and Coupling Screw are not connected exactly, out of step and cutting will be happened.
Frame E Fiixing Bolt
(4each part,8EA)
Page 9 Of 17 (주)SUNSTAR SWF CS Center
To Next Page
