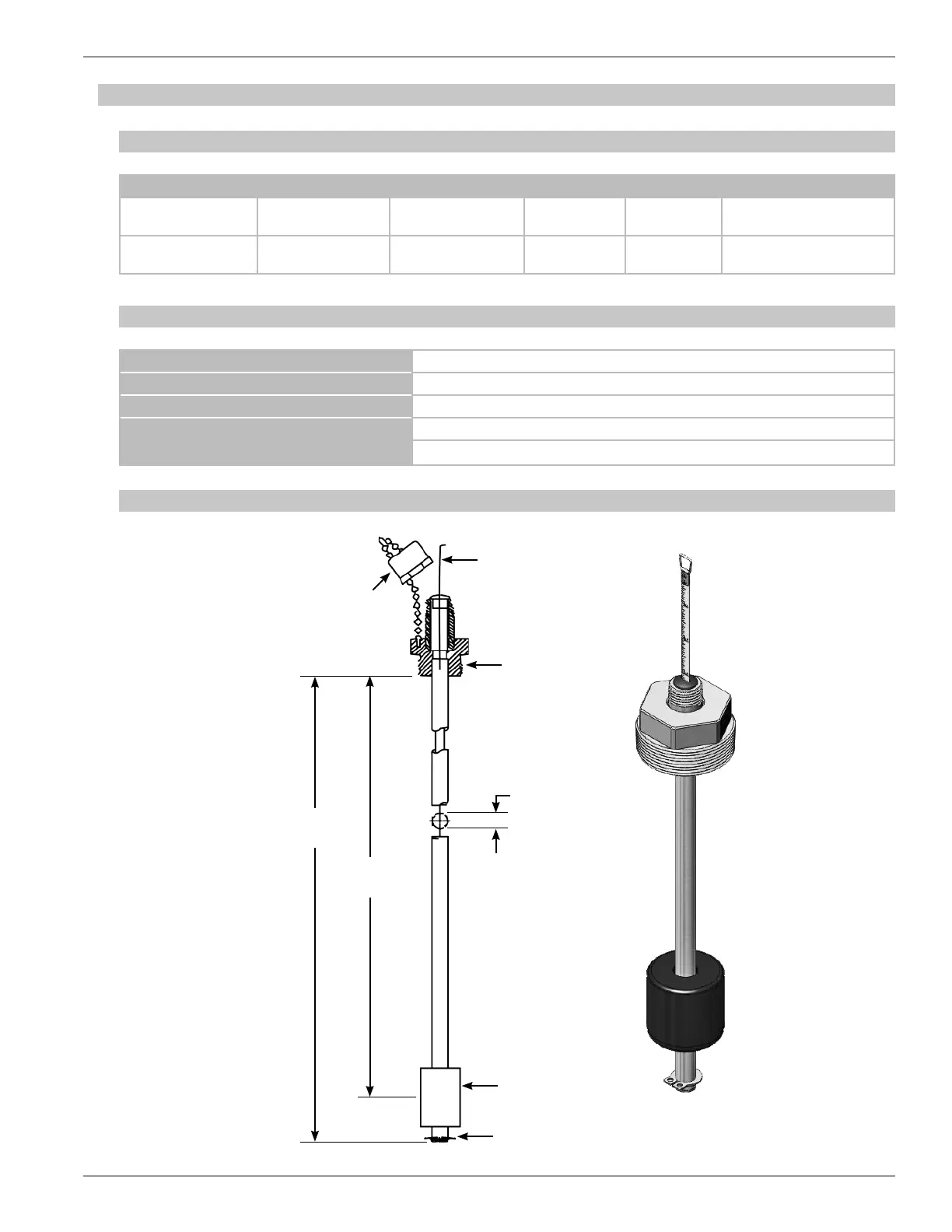

L505 DIP-TAPE VISUAL LEVEL INDICATOR
3.4 SPECIFICATIONS
3.4.1 Physical Specications
FLOAT MATERIAL STEM MATERIAL TEMPERATURE PRESSURE FLOAT SG* SUGGESTED MIN. SG*
Buna-N Brass -40° to +180° F
(-40° to +82° C)
150 PSIG
(10.3 bar)
0.57 0.75
316 Stainless Steel 316 Stainless Steel -40° to +300° F
(-40° to +149° C)
750 PSIG
(51.7 bar)
0.59 0.75
3.4.2 Functional Specications
MEASUREMENT PRINCIPLE
Magnetic Interlock
MEASUREMENT VARIABLE
Visual Level Indication with Graduated Steel Measuring Tape
INDICATION LENGTH
6” to 6’ (15.24 cm to 1.8 m)
TAPE MEASURE OPTIONS
Customary (Inches, Feet)
Metric (Centimeters, Meter)
3.4.3 Dimensional Specications
STEEL
TAPE
PROTECTIVE
SCREW CAP
NPT
MOUNT
FLOAT
RETAINING
RING
INDICATING
LENGTH
“LO”
MAX. LENGTH
120”
Ø ½” OUTER
DIAMETER
*SG refers to the liquid specific gravity.
